4-8 FUEL AND LUBRICATION SYSTEM
SPECIFICATIONS

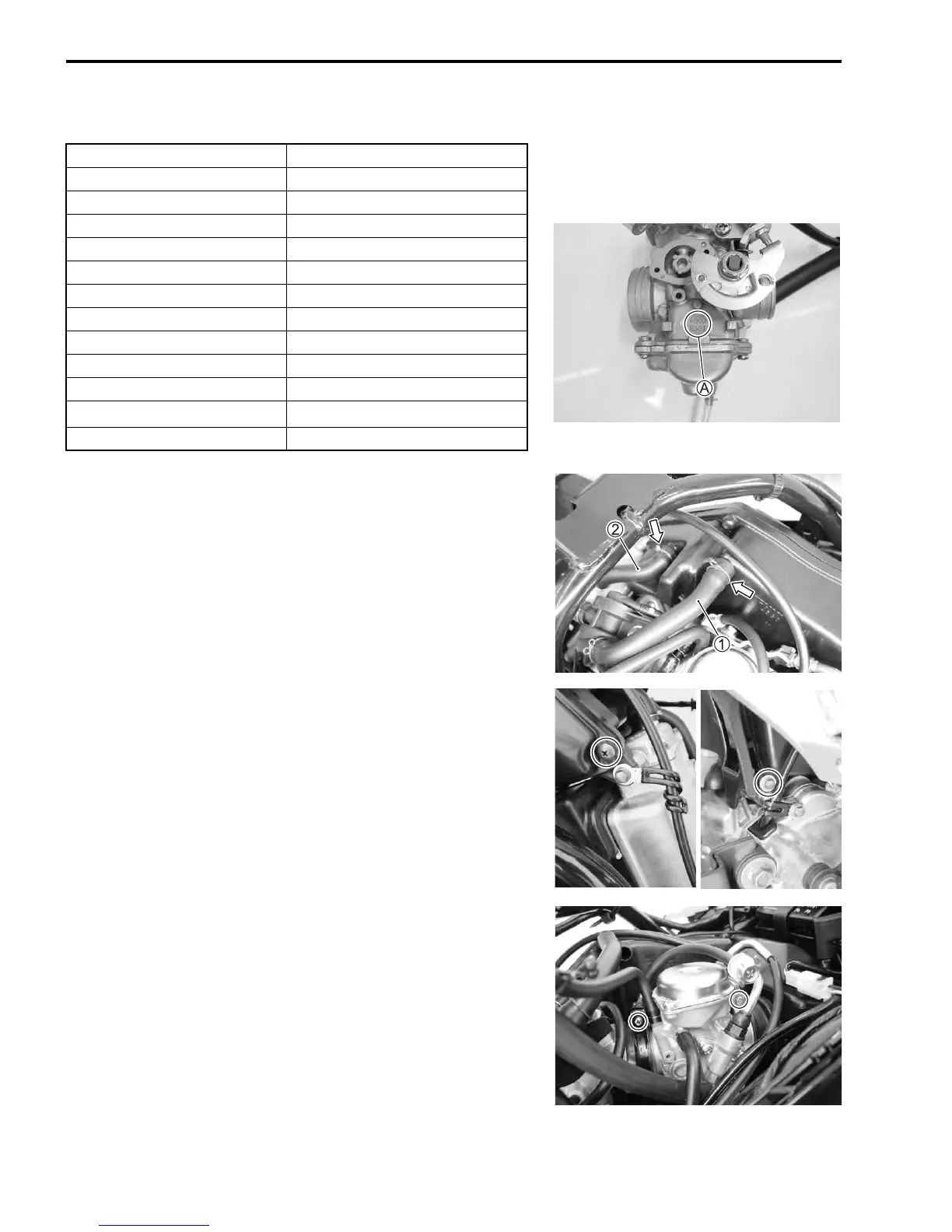

REMOVAL
• Remove the frame front cover. (!5-8)
• Remove the luggage box. (!5-9)
• Remove the fuel tank. (!4-3)
• Disconnect the PAIR hose 1 and PCV hose 2.
• Remove the air cleaner mounting bolts.
• Slightly move the air cleaner box backward.
• Loosen the clamp screws.
ITEM SPECIFICATION
I.D. LOCATION
The carburetor has I.D. Number A
stamped on the carburetor body.
Carburetor type MIKUNI BS26
Bore size & 26 mm
I.D. No. 46G0
Idle rpm 1 600 ± 100 rpm
Float height XX.X ± X.X mm
Main jet (M.J.) #95
Jet needle (J.N.) 4CJ11-2
Needle jet (N.J.) E-3M
Throttle valve (Th.V.) 105
Pilot jet (P.J.) #15
Pilot screw (P.S.) 2-1/4 turns back
Throttle cable play 2.0 – 4.0 mm
