5-34 CHASSIS

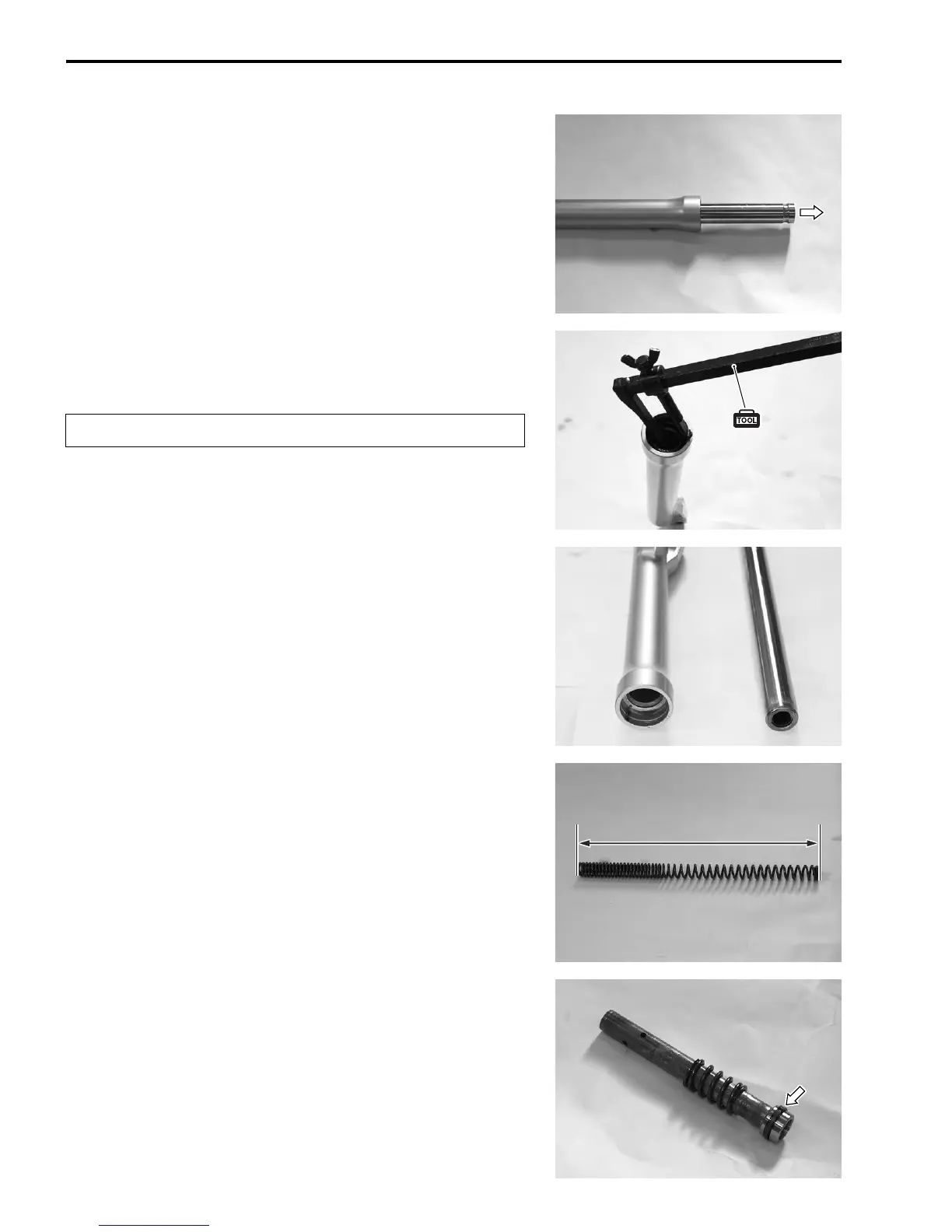

• Pull the inner tube out of the outer tube.
• Remove the oil seal by using the special tool.
$ 09913-50121: Oil seal remover
%
INSPECTION
INNER AND OUTER TUBE
Inspect the inner tube sliding surface and outer tube sliding sur-
face for any scuffing or damage.
FRONT FORK SPRING
Measure the fork spring free length. If the fork spring free length
is shorter than the service limit, replace the fork spring with a
new one.
& Front fork spring free length:
Service limit: 285.8 mm
DAMPER ROD RING
Inspect the damper rod ring for wear or damage. If it is worn or
damaged, replace the damper rod ring with a new one.
The removed oil seal must be replaced with a new one.
