Suzuki UY125 Service Manual

5-52 CHASSIS

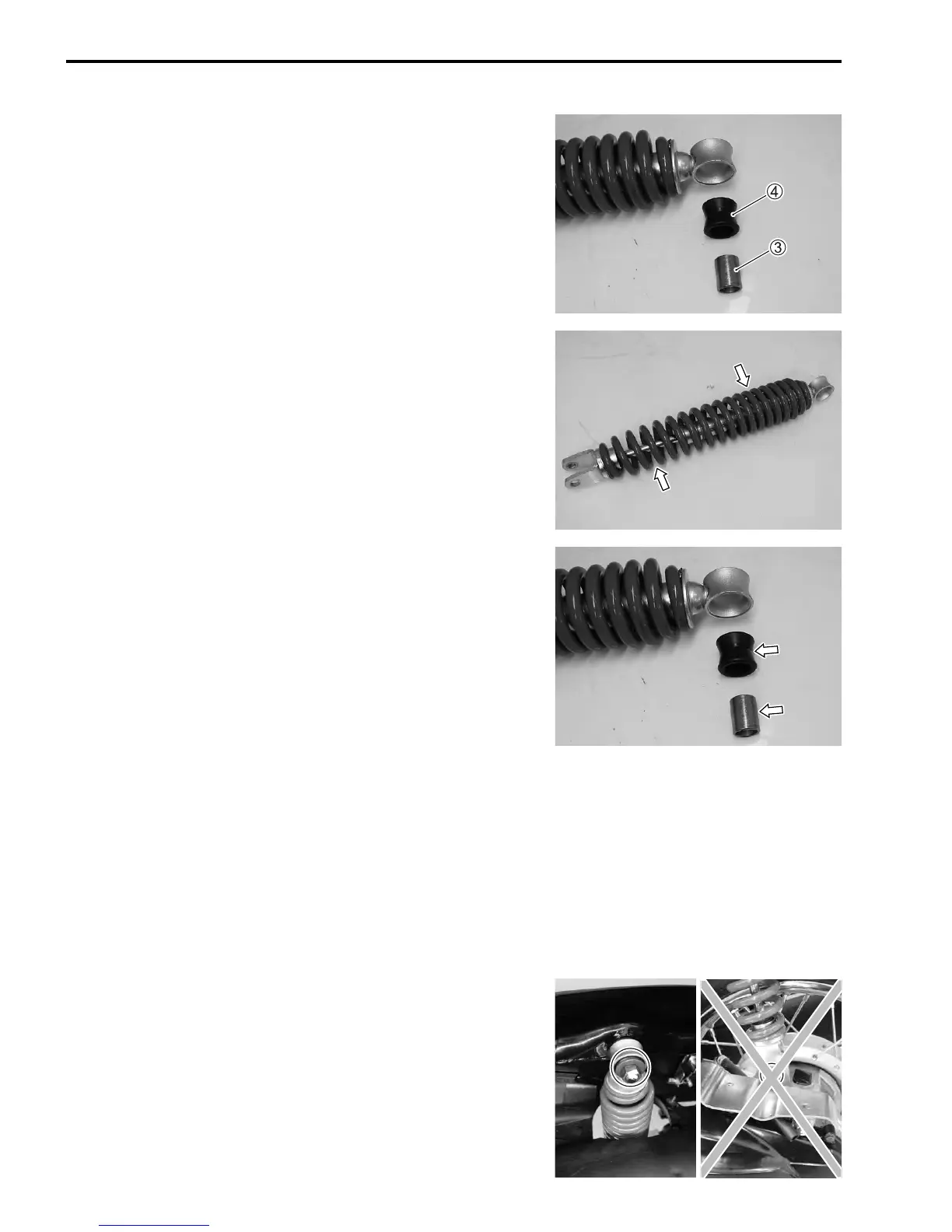

INSPECTION AND DISASSEMBLY
• Remove the spacer 3 and bushing 4.
REAR SHOCK ABSORBER
Inspect the rear shock absorber for damage and oil leakage. If
any defects are found, replace the rear shock absorber with a
new one.
SPACER AND BUSHING
Inspect the spacer and bushing for wear and damage.
If any defects are found, replace the spacer or bushing with a
new one.
REASSEMBLY AND REMOUNTING
Reassemble and remount the rear shock absorber in the
reverse order of removal and disassembly. Pay attention to the
following points:
• Tighten the rear shock absorber mounting bolt and nut to the
specified torque.
# Rear shock absorber mounting bolt and nut:
29 N·m (2.9 kgf-m)
