ELECTRICAL SYSTEM 6-35
BATTERY
SPECIFICATIONS

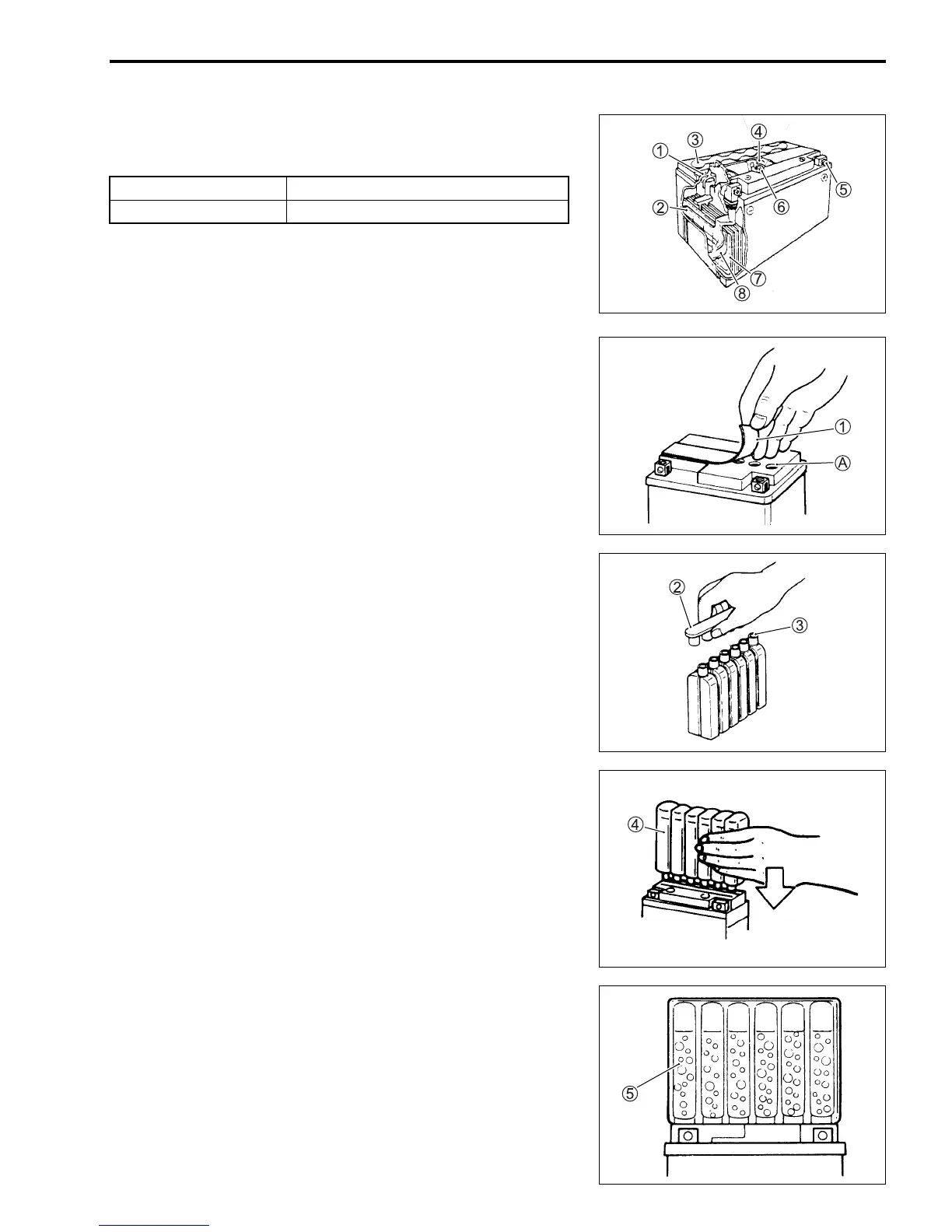

1 Upper cover breather 5 Terminal
2 Cathode plates 6 Safety valve
3 Stopper 7 Anode plates
4 Filter 8 Separator (Fiberglass plate)
INITIAL CHARGING
Filling electrolyte
• Remove the aluminum tape 1 sealing the battery electrolyte
filler holes A.
NOTE:
When filling electrolyte, the battery must be removed from the
motorcycle and must be put on the level ground.
• Remove the caps 2.
NOTE:
* After filling the electrolyte completely, use the removed cap 2
as sealing caps of battery-filler holes.
* Do not remove or pierce the sealed areas 3 of the electrolyte
container.
• Insert the nozzles of the electrolyte container 4 into the bat-
tery’s electrolyte filler holes, holding the container firmly so
that it does not fall. Take precaution not to allow any of the
fluid to spill.
• Make sure air bubbles 5 are coming up each electrolyte con-
tainer, and leave in this position for about more than 20 min-
utes.
Type designation FTZ5S
Capacity 12 V, 12.6 kC (3.5 Ah)/10 HR
