3-46 ENGINE

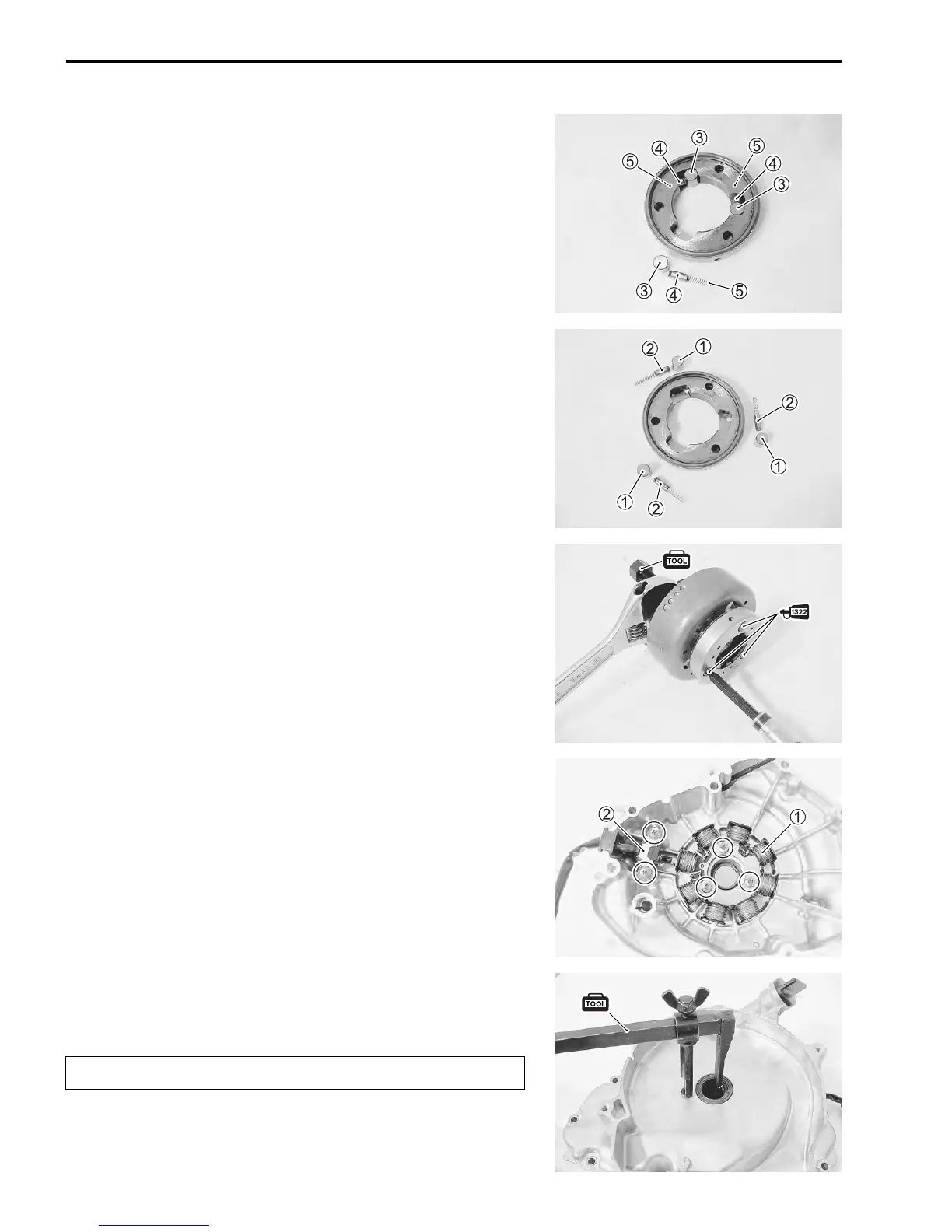

• Remove the roller 3, spring 4 and push pieces 5.
INSPECTION
Inspect the rollers 1 and push pieces 2 for damage and exces-
sive wear. If any defects are found, replace the new one.
REASSEMBLY
• Reassemble the starter clutch in the reverse order of disas-
sembly. Pay attention to the following points:
• Apply THREAD LOCK on the starter clutch bolts and tighten
them to the specified torque.
" Starter clutch bolt: 10 N·m (1.0 kgf-m)
+ 99000-32110: THREAD LOCK SUPER “1322”
$ 09930-34980: Rotor holder
MAGNETO COVER
DISASSEMBLY
• Remove the startor coil 1 and pick-up coil 2.
• Remove the oil seal with the special tool.
$ 09913-50121: Oil seal remover
#
Replace the removed oil seal with a new one.
