CHASSIS 5-29

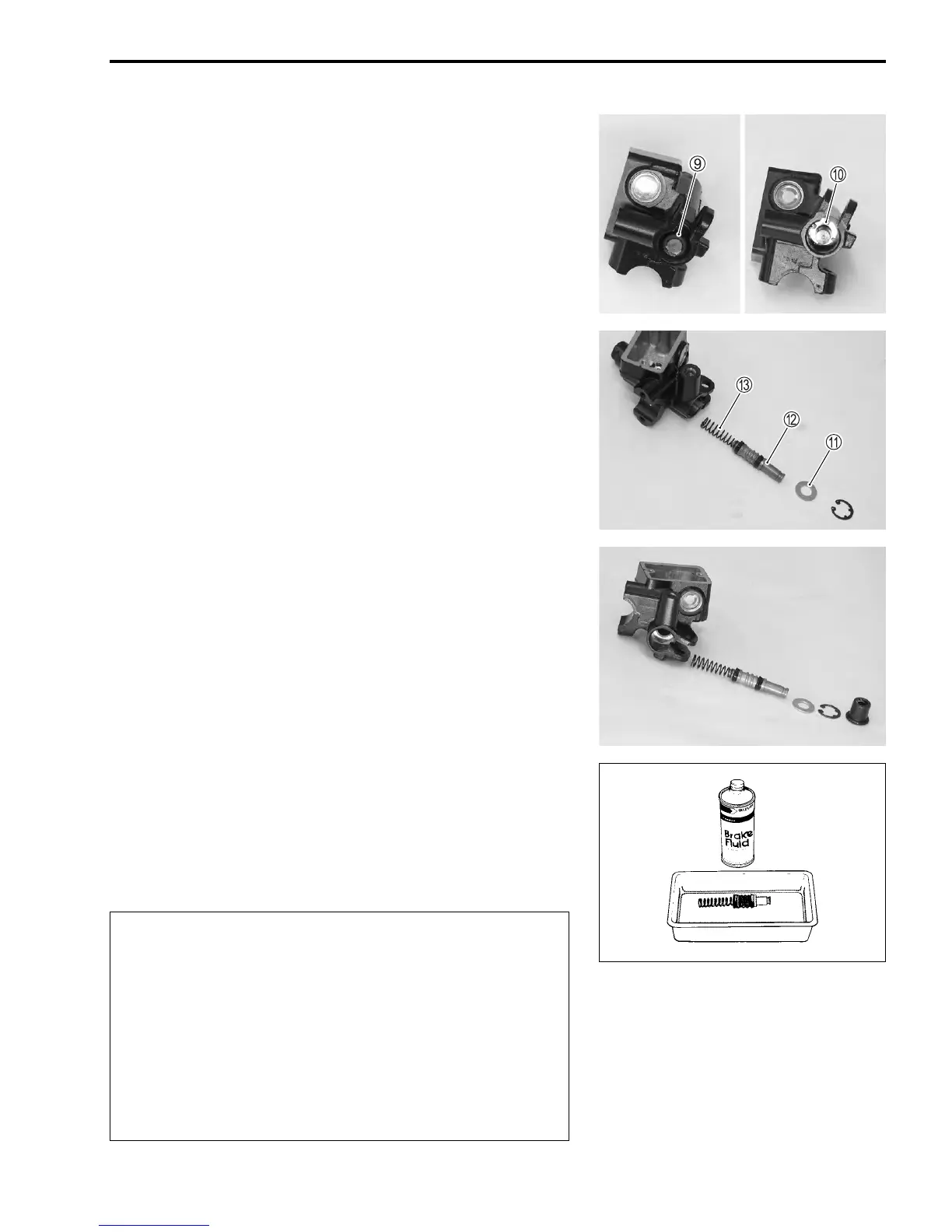

• Pull out the dust seal boot 9 and remove the snap ring 0.
• Remove the plate A, piston B and spring C.
MASTER CYLINDER INSPECTION
CYLINDER
Inspect the master cylinder bore for any scratches or damage.
PISTON AND CUP SET
Inspect the piston surface for any scratches or other damage.
Inspect the primary cup, secondary cup and dust seal for wear
or damage.
MASTER CYLINDER REASSEMBLY AND
INSTALLATION
Reassemble and install the master cylinder in the reverse order
of removal and disassembly. Pay attention to the following
points:
%
* Specification and classification: DOT 4
* Wash the master cylinder components with new
brake fluid before reassembly.
* Do not wipe the brake fluid off after washing the
components with a rag.
* When washing the components, use the specified
brake fluid. Never use different types of fluid or
cleaning solvents such as gasoline, kerosine, etc.
* Apply brake fluid to the master cylinder bore and all
of the master cylinder components before reassem-
bly.
