Suzuki UY125 Service Manual

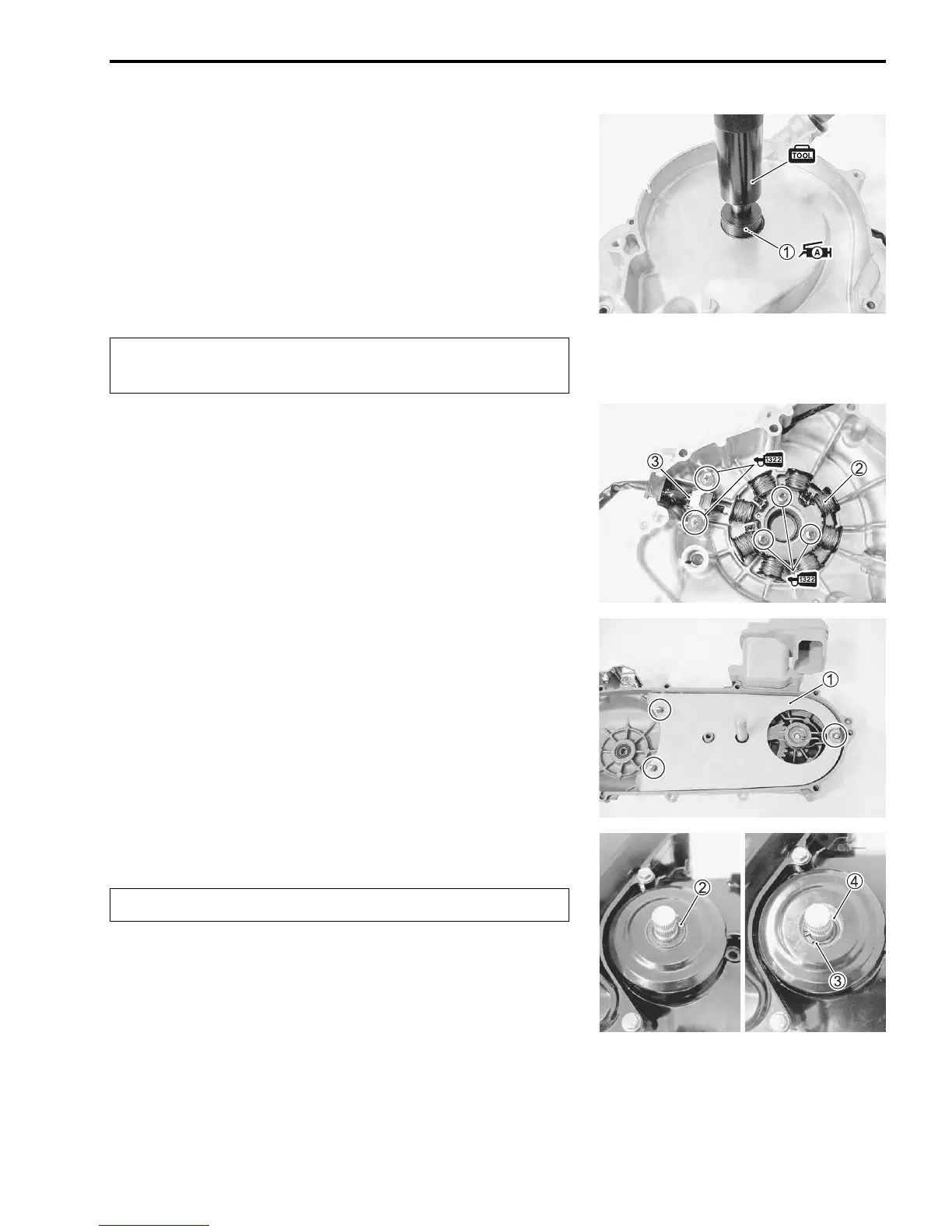

ENGINE 3-47
REASSEMBLY
• Reassemble the magneto cover in the reverse order of disas-
sembly. Pay attention to the following points:
• Install the oil seal with the special tool.
$ 09913-70210: Bearing installer set (35 mm)
• Apply a small quantity of SUZUKI SUPER GREASE “A” to the
lip of the oil seal.
* 99000-25010: SUZUKI SUPER GREASE “A”
#
• When replacing the stator coil 2 or pick-up coil 3, apply
THREAD LOCK to the stator coil set bolts and pick-up coil set
screws and tighten them to the specified torque.
" Stator coil bolt: 6 N·m (0.6 kgf-m)
+ 99000-32110: THREAD LOCK SUPER “1322”
KICK STARTER
DISASSEMBLY
• Remove the clutch cover air intake plate 1.
• Remove the oil seal 2, snap ring 3 and washer 4.
#
Install the oil seal 1 with the marked code toward out-
side.
Replace the removal oil seal with a new one.
