3-4 ENGINE
ENGINE REMOVAL AND INSTALLATION
ENGINE REMOVAL

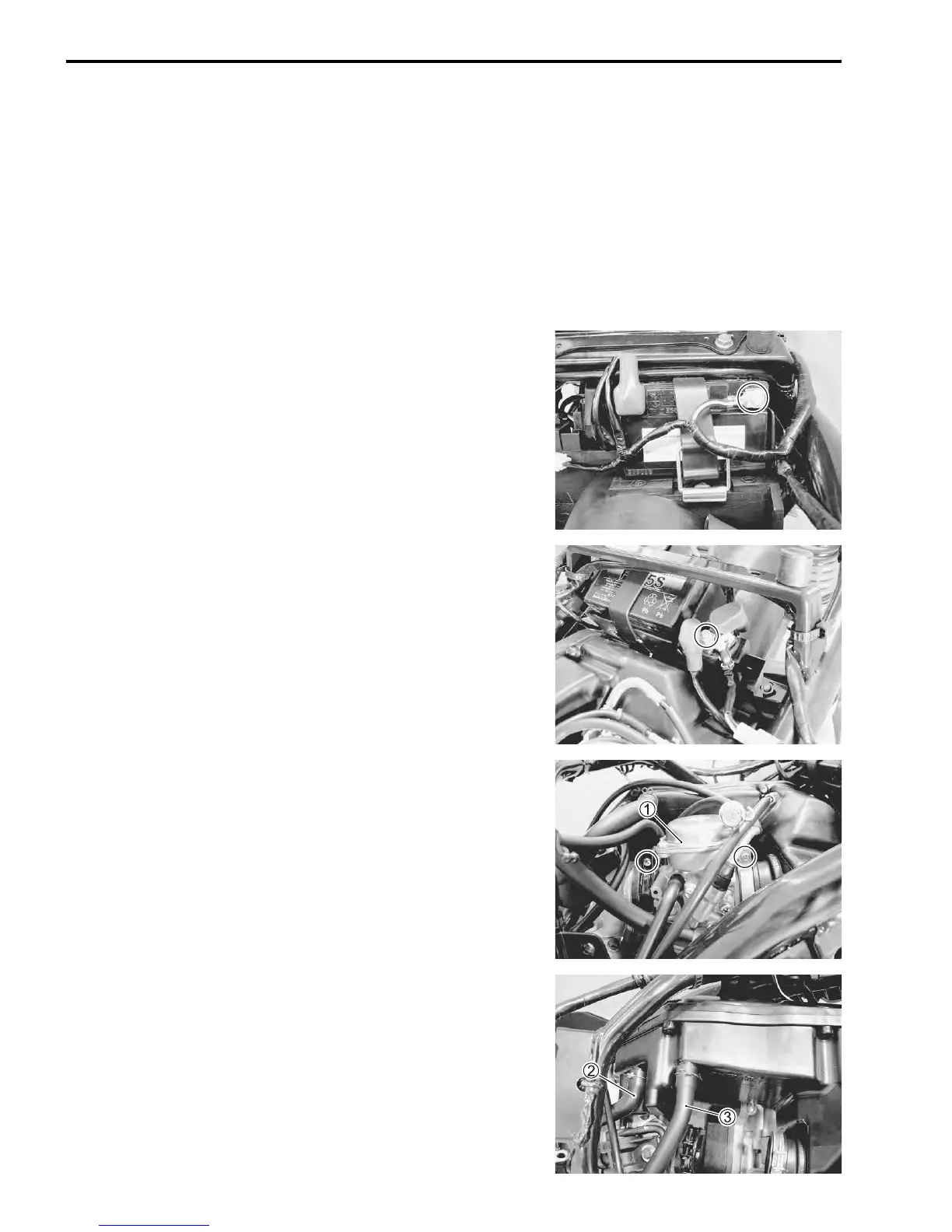

Before taking the engine out of the frame, wash the engine
using a steam cleaner. Engine removal is sequentially explained
in the following steps. Reinstall the engine by reversing the
removal procedure.
• Remove the front frame cover. (!5-8)
• Remove the luggage box. (!5-9)
• Remove the frame covers (left and right). (!5-10)
• Disconnect the battery - lead wire.
• Remove the fuel tank. (!4-2)
• Drain engine oil. (!2-8)
• Disconnect the starter motor lead wire.
• Remove the carburetor 1. (!4-8)
• Disconnect the head cover breather hose 2 and PAIR hose
3.
To Next Page
