Suzuki VL125 Service Manual

ENGINE 3-49
ENGINE REASSEMBLY
The engine reassembly can be performed in the reverse order of disassembly procedures. However, the
following points must be observed in the reassembly operation.
7
* Make sure to coat the rotating and sliding sections with engine oil.
* Care must be taken so that the drive belt, drive face and driven face are completely free from
oil and grease.

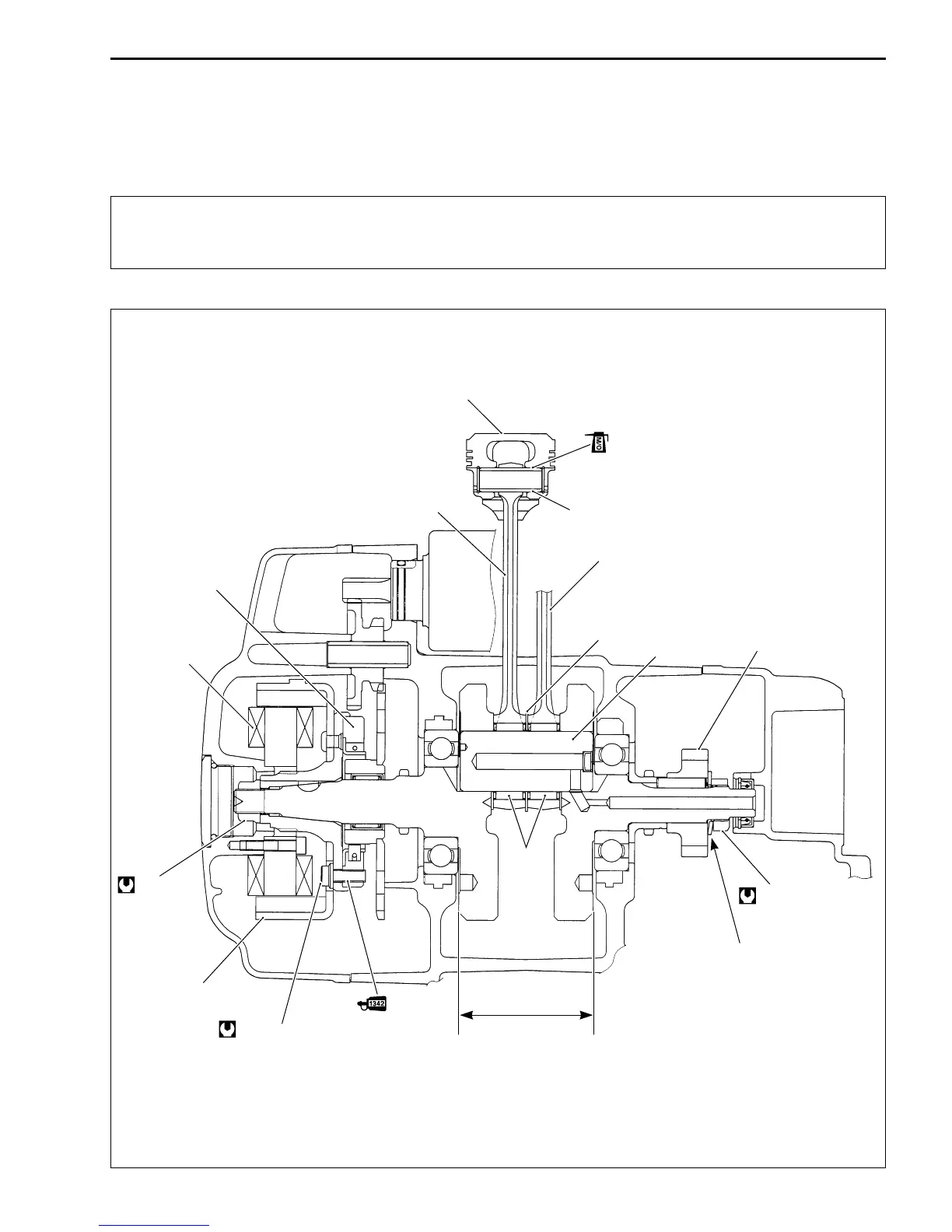

Conrod No.1
Piston No.1
Generator
Starter clutch
Conrod No.2
Piston pin
Washer
Crank pin
Primary drive gear
Bearing
Generator rotor
The Convex side of the
washer faces outside.
70 N
.
m (7.0 kgf
.
m)
[Left hand threads]
10 N
.
m (1.0 kgf
.
m)
80 N
.
m
(8.0 kgf
.
m)
66.9 – 67.1 mm
