AMI Codes-II
Installation

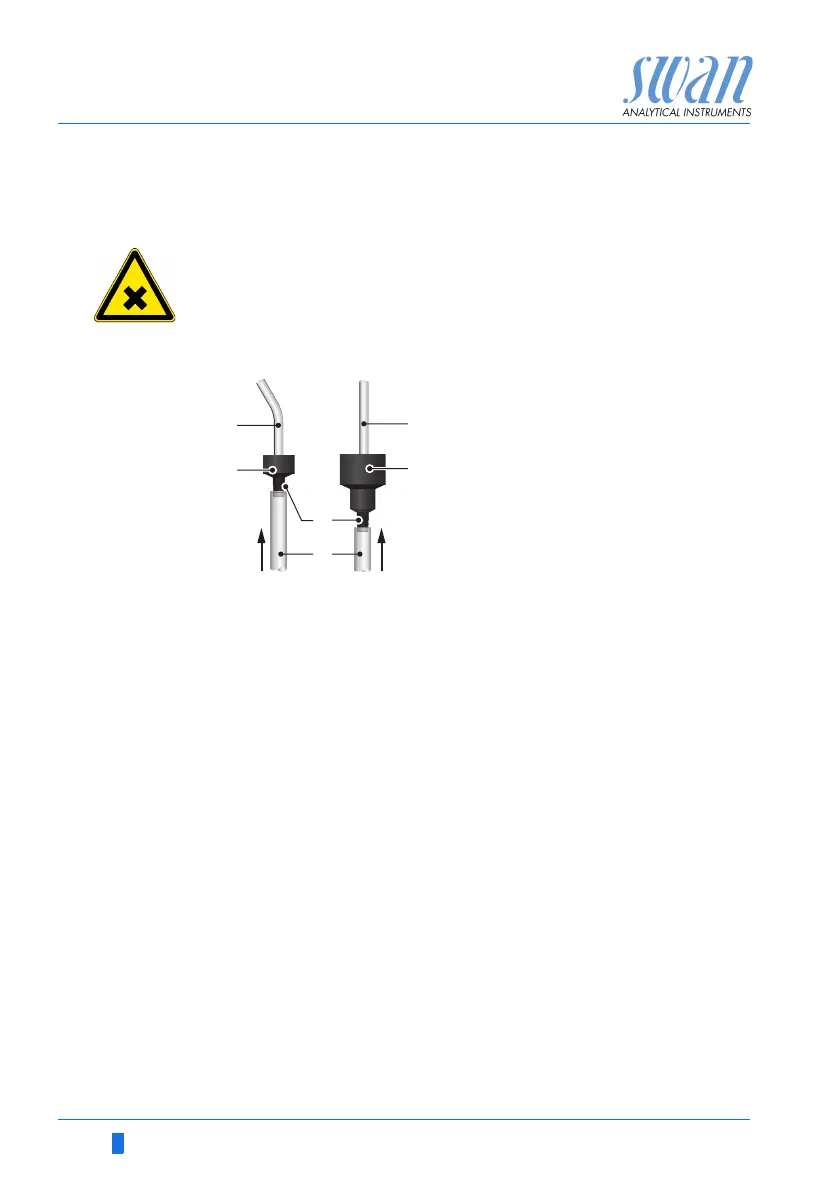

3.3.2 FEP Tube at Sample Outlet
WARNING
Risk of water pollution
The drain of the photometer outlet contains DPD.
 At no means recirculate it into the water system.
Connect the 1/2” tubes [F] to the hose nozzles [E] and place it into
a pressure free drain with sufficient capacity.
A
B
C
D
E
F
Tube from photometer
Drain Photometer
Tube from constant head
Drain constant head
Hose nozzles
1/2” tubes
B
D
E
F
A
C
