6.10. Tube Replacement
6.10.1 Replace the Pump Tubes
The pump tube [D] of the peristaltic pump is exposed to a minimal
wear.
It is therefore recommended to exchange the pump tube annually.
CAUTION
Pollution of reagents possible.
If the occlusion frames are opened during operation, already
mixed reagents will flow back into the reagent canisters and pol-
lute the reagents.
 Never open the occlusion frames if the instrument is in opera-
tion.
 Proceed according to Stop of Operation for Maintenance, p.
43 before opening the occlusion frames.

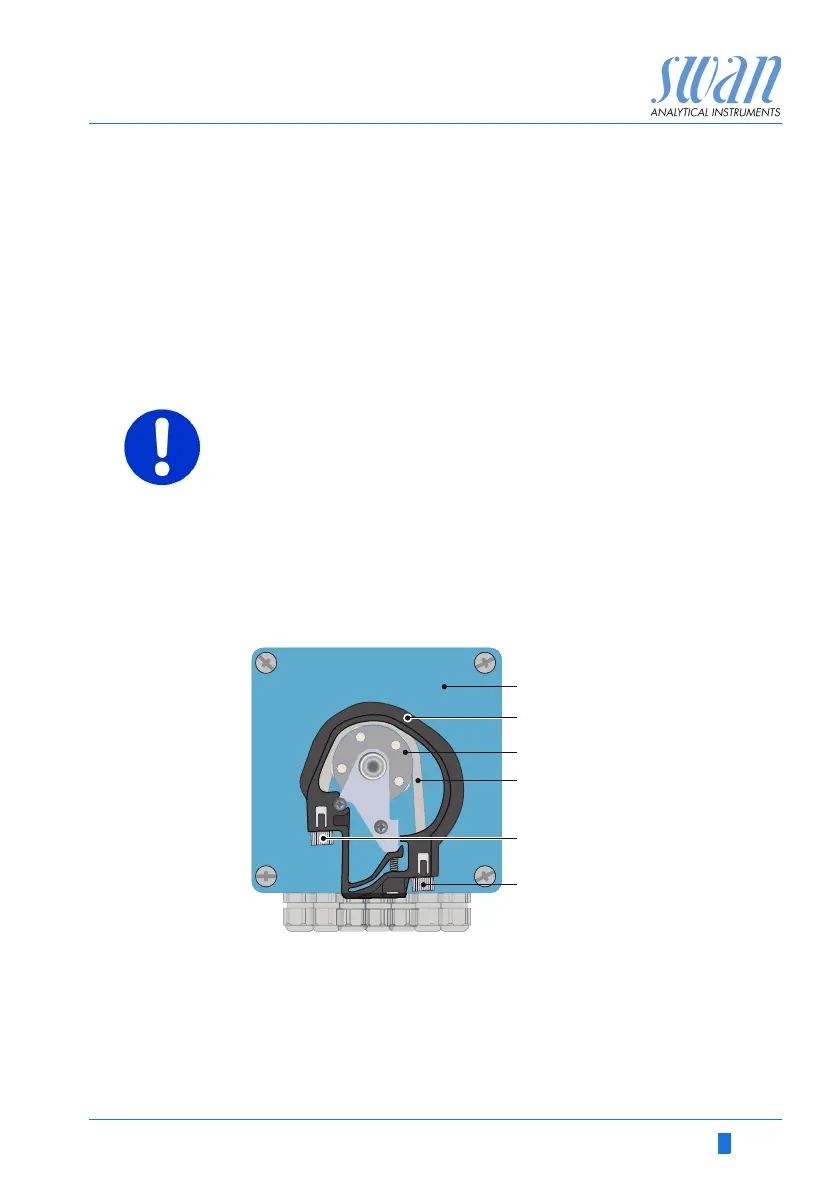

Overview
A
B
C
D
E
F
Pump housing
Occlusion frame
closed
Rotor
Pump tube
Pump inlet
Pump outlet
A
B
D
C
E
F
