Swann AMI Codes-II - Replace the Reagent Tubes

AMI Codes-II
Maintenance
A-96.250.571 / 050517 61

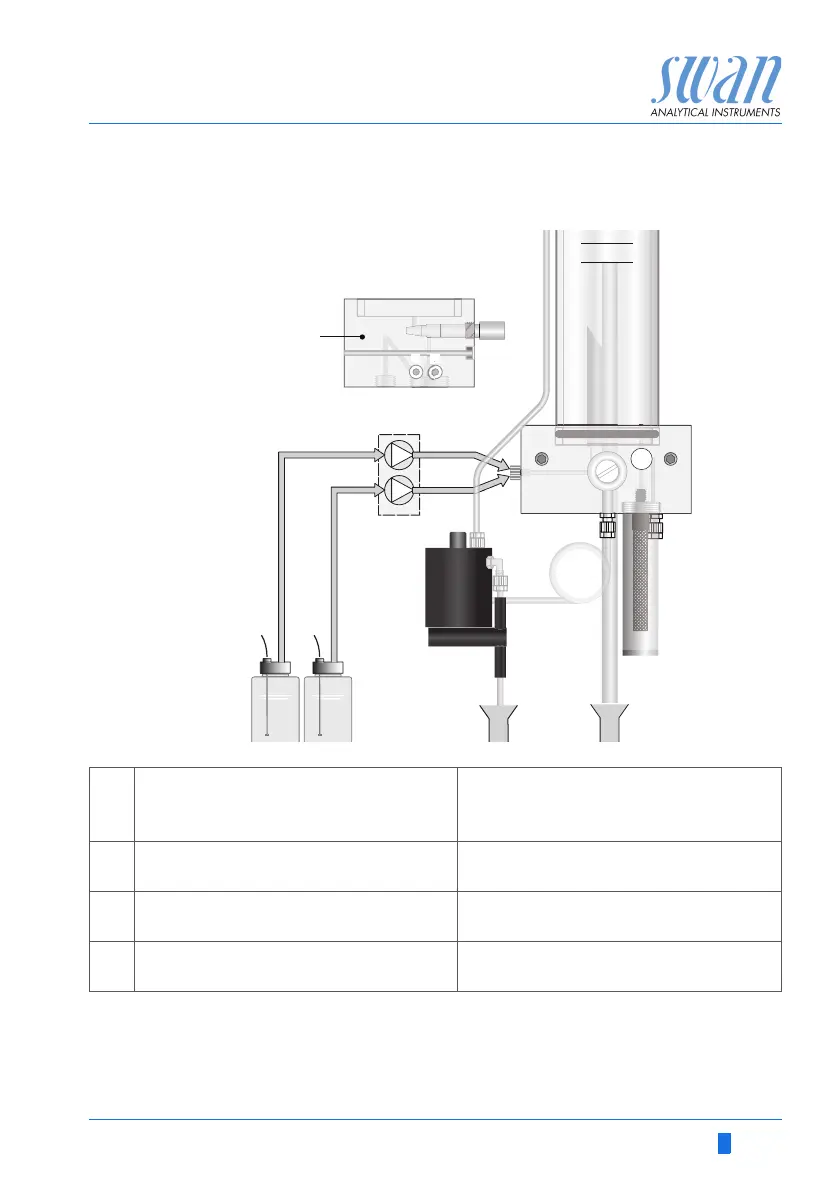

6.10.2 Replace the Reagent Tubes
Tube
numbering
Level
1 2
1
2
3
JK
Q
4
Nr. from to
1 Pump outlet: rear frame Flow cell block: connection 1
see Flow cell block side view Q
2 Pump outlet: front frame Flow cell block: connection 2
see Flow cell block side view Q
3 Reagent canister (J)
Oxycon on-line DPD
Pump inlet: rear frame
4 Reagent canister (K)
Oxycon on-line Buffer / KI
Pump inlet: front frame
