5.2.1.40 Scaling: Enter beginning and end point (Range low & high) of the
linear or logarithmic scale. In addition, the midpoint for the bilinear
scale.
Parameter DIS:
5.2.1.40.10 Range low: 0–10 ppm or 0–10 mg/l
5.2.1.40.20 Range high: 0–10 ppm or 0–10 mg/l
Parameter pH
5.2.1.40.11 Range low: 0 –14 pH
5.2.1.40.21 Range high: 0 –14 pH
Parameter Temperature
5.2.1.40.12 Range low: -30 to +120 °C
5.2.1.40.22 Range high: -30 to +120 °C
Parameter Sample flow
5.2.1.40.13 Range low: 0 –600 B/s
5.2.1.40.23 Range high: 0 –600 B/s

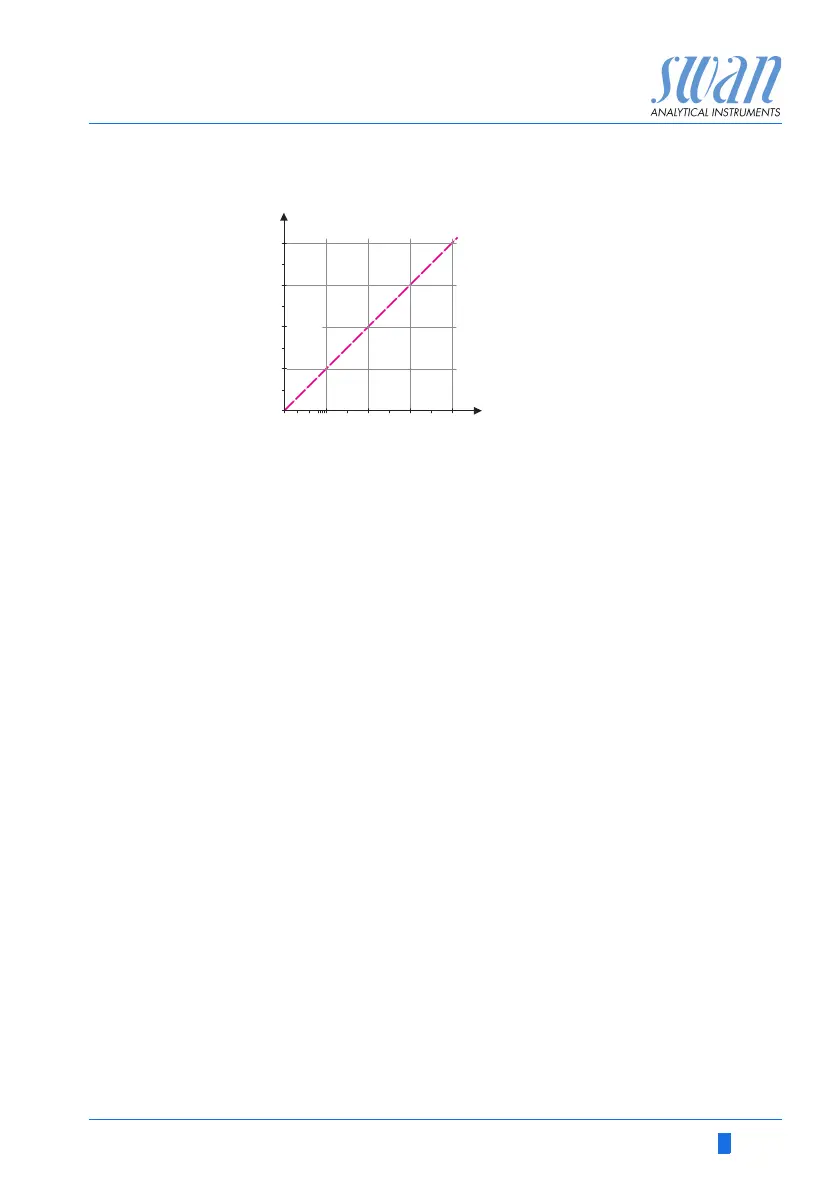

X Measured value (logarithmic)
20
1
01234
10 100 1’000 10’000
10 12
(0 - 20 [mA])
0 / 4
426
(4 - 20 [mA])
[mA]
X
