AMI Trides
Installation
A-96.250.111 / 211019 19
3.2. Mounting of Instrument Panel
The first part of this chapter describes the preparing and placing of
the system for use.
 The instrument must only be installed by trained personnel.
 Mount the instrument in vertical position.
 For ease of operation mount it so that the display is at eye
level.
 For the installation a kit containing the following installation
material is available:
– 6 Screws 6x60 mm
– 6 Dowels
– 6 Washers 6.4/12 mm
Mounting re-
quirements
The instrument is only intended for indoor installation.
For dimensions see Dimensions, p. 15.

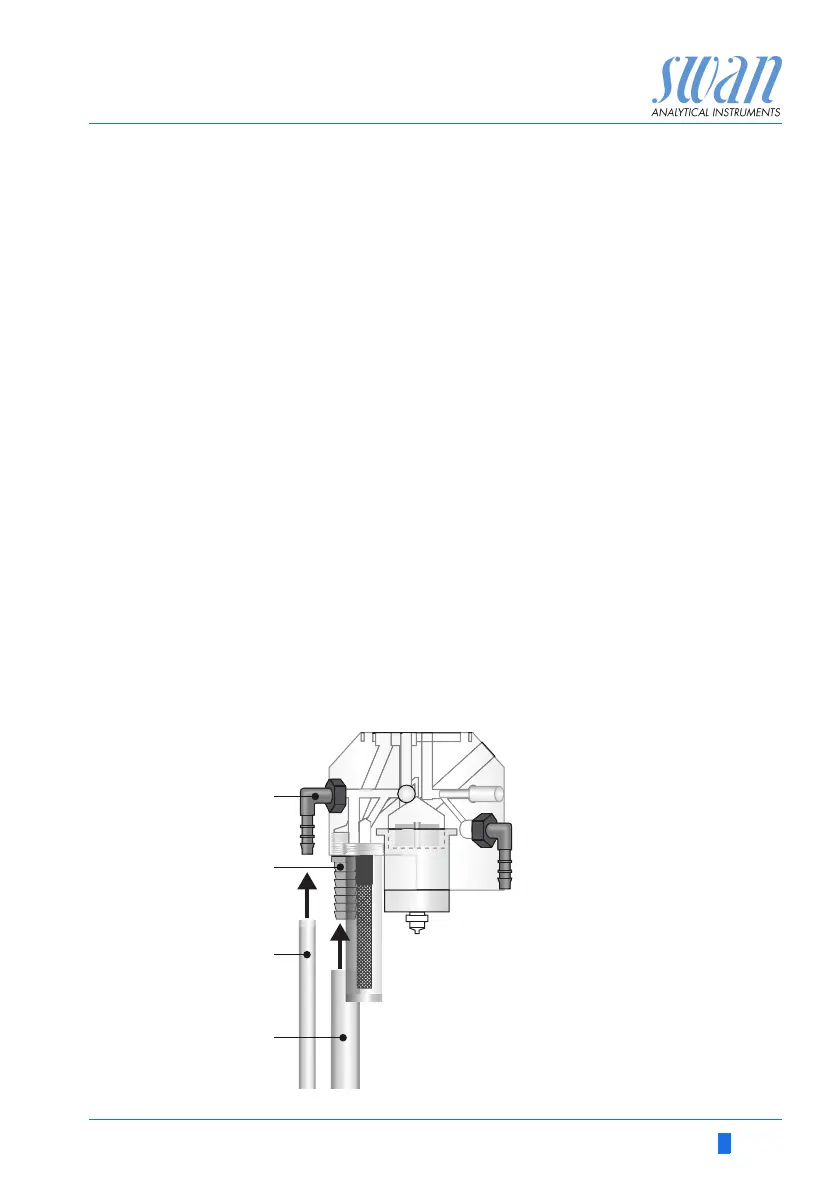

3.3. Connecting Sample and Waste
Sample inlet Push the 6x9 plastic tube [C] over the elbow hose nozzle [A] at the
sample inlet.
Waste Connect the 1/2” tube [D] to the waste nozzle [B] and place it into
the atmospheric drain.
A
B
C
D
Elbow hose nozzle at
sample inlet
Sample outlet
Plastic tube 6x9
1/2” tube
A
B
C
D
