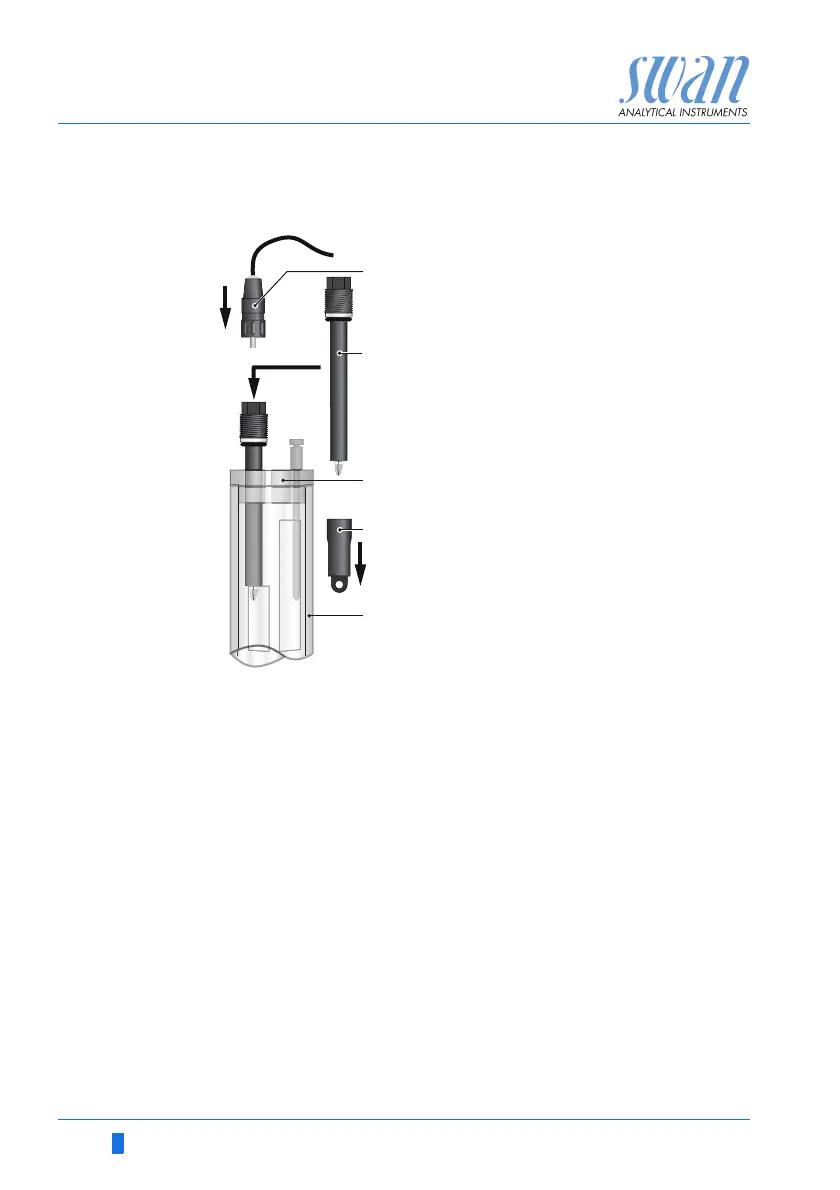

3.6.1 Install the pH or Redox Electrode into the Flow Cell
1 Switch the instrument off.
2 Remove the cap [D] from the pH/redox electrode [B].
3 Insert the electrode through the cover [C] into the flow cell [E]
4 Screw the connector [A] onto the sensor.
A
B
C
D
E
Connector
pH/Redox electrode
Constant head cover
Sensor cap
Constant head
A
B
C
D
E
