32 A-96.250.111 / 211019
AMI Trides
Installation
3.12. Signal Outputs
3.12.1 Signal Output 1 and 2 (current outputs)
NOTICE: Max. burden 510 Ω
If signals are sent to two different receivers, use signal isolator
(loop isolator).
Signal output 1: Terminals 14 (+) and 13 (-)
Signal output 2: Terminals 15 (+) and 13 (-)
For programming see Program Overview, p. 62, Menu Installation
3.13. Interface Options
The slot for interfaces can be used to expand the functionality of
the AMI instrument with either:
Third signal output
a Profibus or Modbus connection
a HART connection
an USB Interface

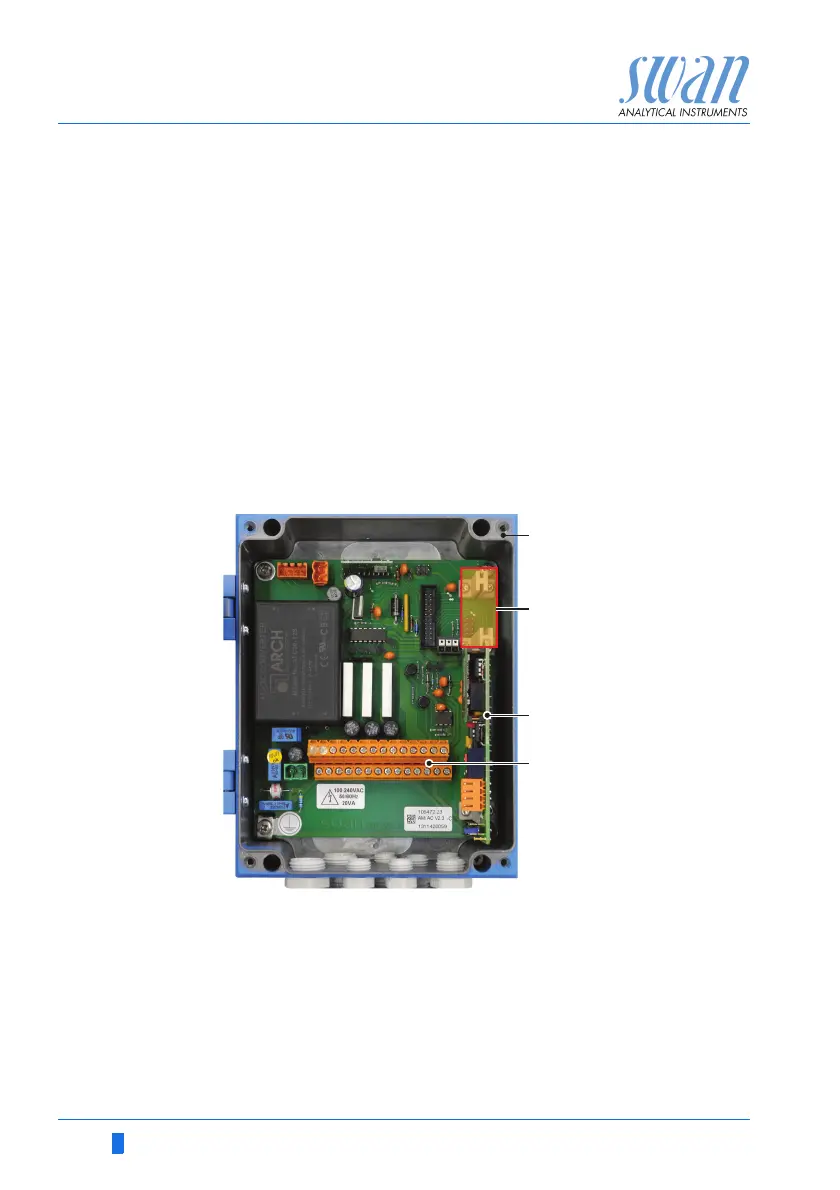

A
B
C
D
AMI Transmitter
Slot for interfaces
Frontend PCB
Screw terminals
A
B
C
D
