3.6.2 Connect the pH Electrode to the Transmitter
WARNING
Risk of electrical shock
Installation and maintenance of electrical parts must be per-
formed by professionals
Always turn off AC power before manipulating electric parts.
1 Open the transmitter housing
2 Feed the cable of the electrode through one of the PG 7 cable
glands [C] into the transmitter housing.

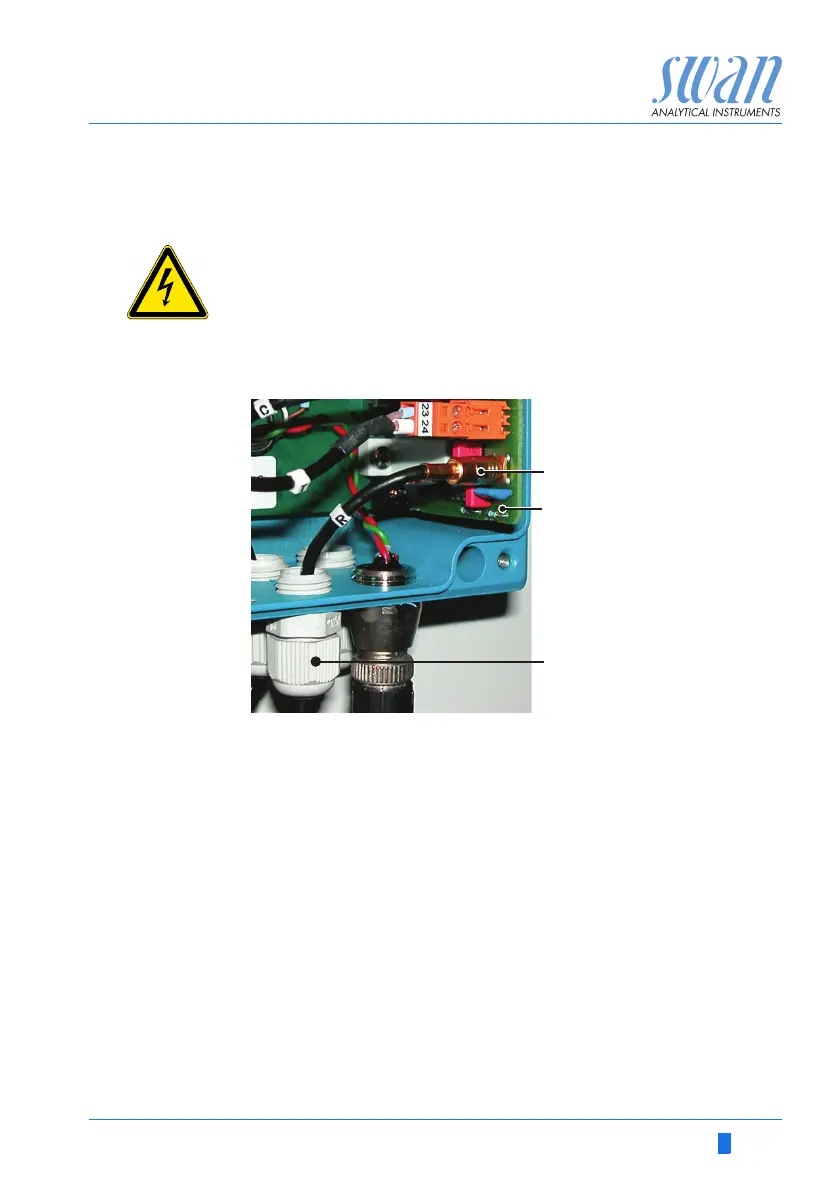

3 Connect the coaxial plug [A] to the plug on the front end PCB
[B].
4 Close the transmitter housing.
5 Switch on the instrument.
