www.swegon.com 13

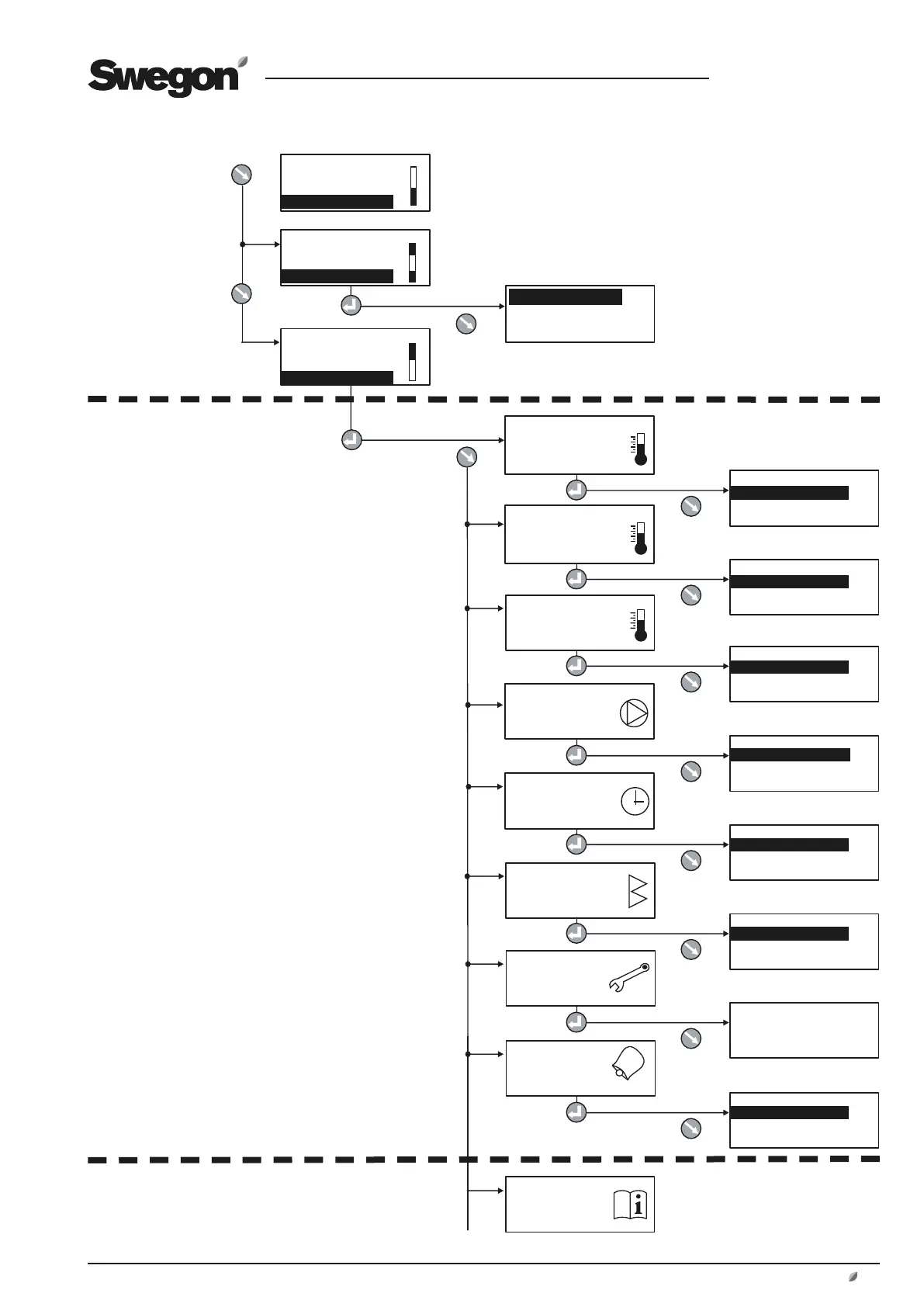

4.2 Menu Tree
MAIN
MENU
(Section 5)
USER LEVEL
(Section 6)
INSTALLATION LEVEL
(Section 7-15)
GOLD RX TUE 14:40
STOP
MANUAL OPERATION
STOP?
GOLD RX TUE 14:40
MANUAL OPERATION
STOP?
MAN/AUTO.OP
GOLD RX TUE 14:40
STOP?
MAN/AUTO.OP
SETTINGS
TEMPERATURE
FLOW/PRESSURE
SWITCH CLOCK
FILTERS
AIR ADJUSTMENT
ALARMS
INSTALLATION
AUTO OPERATION
MANUAL LOW SPEED
MANUAL HIGH SPEED
*TEMPERATURE*
READINGS
SETTINGS
*SWITCH CLOCK*
TIME/DATE
TIME CHANNEL
YEAR CHANNEL
*FILTERS*
READINGS
CALIBRATION
*AIR ADJUSTMENT*
LOCKS FAN SPEED
TIME SETTING: 0 h
*ALARMS*
ACTIVE ALARMS
ALARM HISTORY
*FLOW/PRESSURE*
READINGS
SETTINGS
Important! The appearance of
the menus varies depending
on the type of air handling
unit and functions selected.
Xzone
*Xzone*
READINGS
SETTINGS
ALL YEAR COMFORT
*ALL YEAR COMFORT*
READINGS
SETTINGS
