1.6.2 GOLD PX One-piece air handling unit with plate heat exchanger

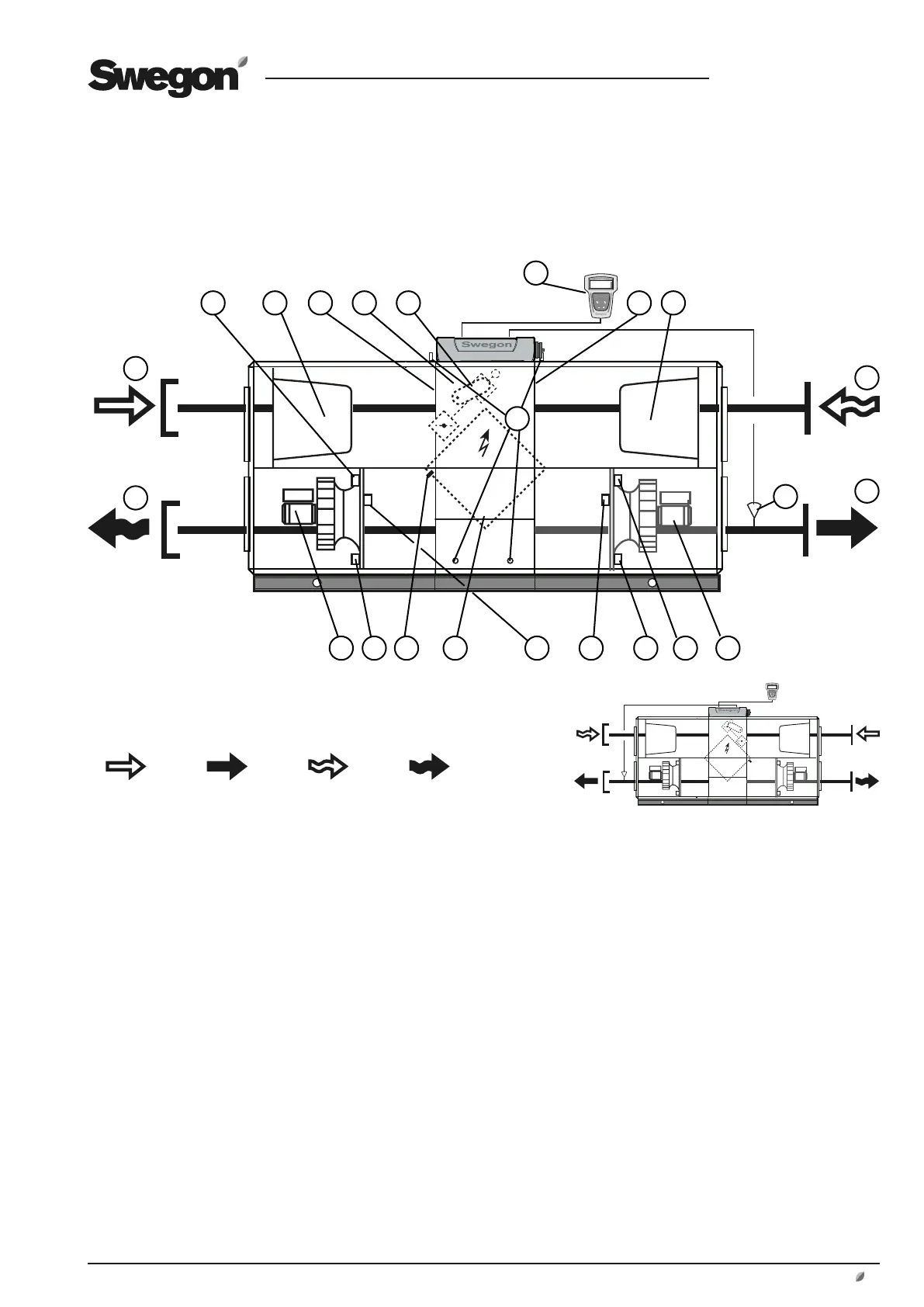

The specific components are outlined below each individually in a simplified and
schematic specification.
Left-hand version
Fig 2b
Outdoor air Supply air Extract air Exhaust air
The air handling units are supplied in the right-hand or
left-hand version as shown in Fig. 2a and 2b. In the left-
hand version, the components marked with an asterisk
change function and designation (the components are
named according to whether they are for supply air or
extract air.).
The location of the components and their designa-
tion
1 EXHAUST AIR* (Left-hand version: Supply air)
2 OUTDOOR AIR* (Left-hand version: Extract air)
3 Pressure transducer by supply air filter*
(Position on function selector switch = 3)
4 Supply air filter*
5 Outdoor temperature sensor*
6 Electrical equipm. cubicle with control unit
7 Shut-off and by-pass valve actuator
8 Hand-held micro terminal
9 Temperature/relative humidity sensor in extract air*
10 Extract air filter*
11 Supply air temp. sensor (to be mounted in supply air duct)
12 EXTRACT AIR* (Left-hand version: Outdoor air)
13 SUPPLY AIR* (Left-hand version: Exhaust air)
14 Extract air fan* with motor and motor control system
15 Pressure transducer by extract air fan*
(Position on function selector switch = 1)
16 Sensor for anti-frosting protection
17 Plate heat exchanger with by-pass and shut-off damper
18 Pressure transducer by supply air fan*
(Position on function selector switch = 2)
19 Pressure transducer by extract air filter*
(Position on function selector switch = 4)
20 Supply air fan* with motor and motor control system
21. Measurement tappings for measuring the pressure drop
across the heat exchanger.
22. Temperature/density sensor, supply air.
23. Temperature/density sensor, extract air.
Fig. 2a
Right-hand version
1
2
3 6
8
11
12
13
17 1918 2014
4
15
7 105 9
16
21
2223
