Swegon GOLD SD - Dimensions, GOLD PX One-Piece Unit with Plate Heat Exchanger

GB.GOLDSK509.091101
We reserve the right to alter specifications without notice.
www.swegon.com 61
D
EE
52
52
16 52*
50
J
K
50 50
J
K
80
50

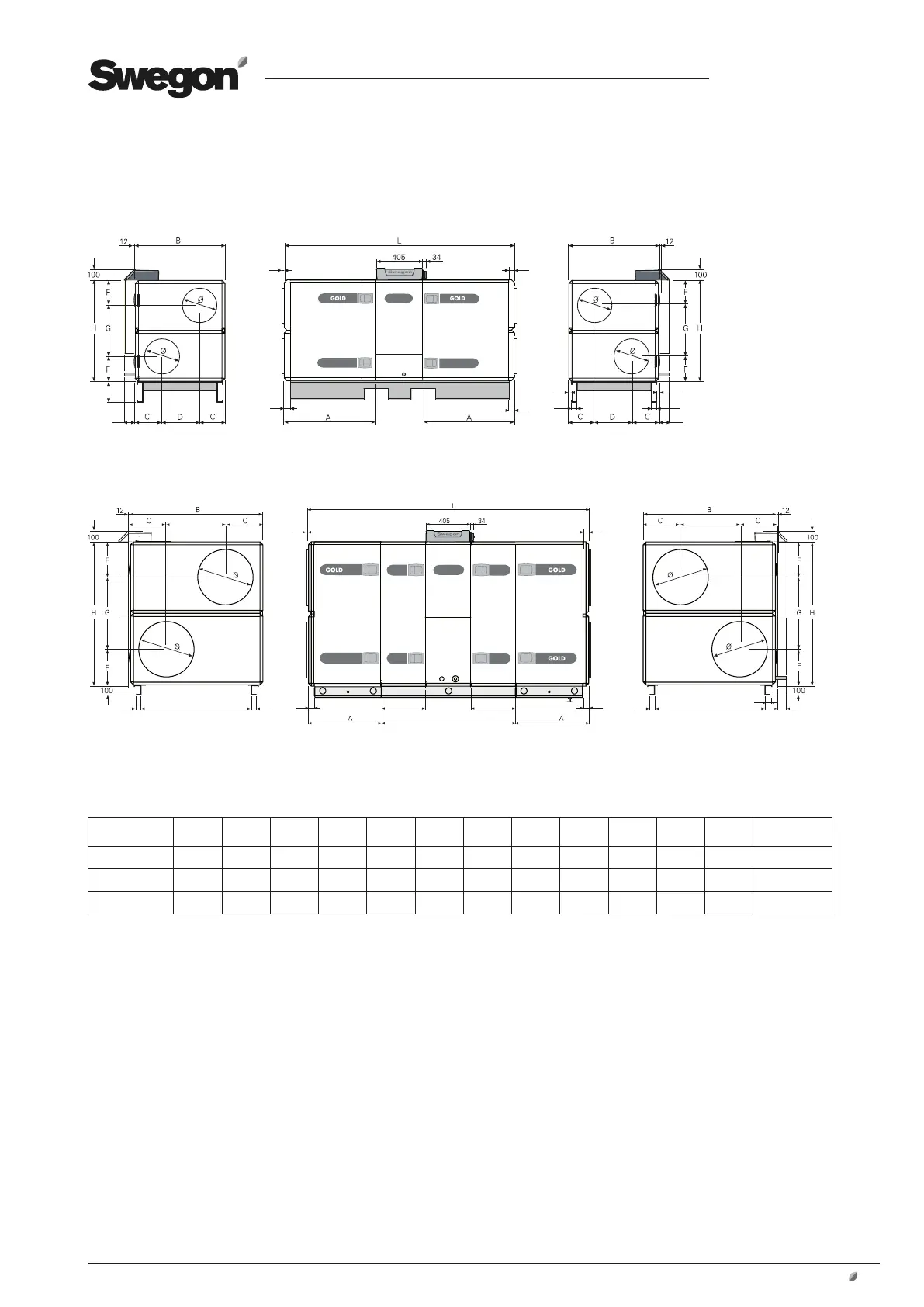

19.2 Dimensions, GOLD PX one-piece unit with plate heat exchanger
GOLD 04/05, 08
GOLD 12
52
52
28 32
80
180
80
50 50
16 52*
Size A B C D E F G H J K L Ø Weight, kg
04/05 800 825 240 345 – 230 460 920 – – 2000 315
320
08 915 995 277.5 440 – 271 543 1085 – – 2230 400
420
12 655 1199 324 1200 397 324 647 1295 935 551 2510 500
617
* The air handling unit is supplied without end connection if a duct accessory housed in an insulated casing will be connected.
* The air handling unit is supplied without end connection if a duct accessory housed in an insulated casing will be connected.
