3 COMMISSIONING
3.1 General
Sequence for commissioning:
1. Check that there are no foreign objects in unit, ducting system
or functional sections.
2. Check that rotating heat exchangers (only GOLD RX) rotate
easily. On sizes 50-80, the rotating heat exchanger must be
angled slightly towards the filter, see diagram below.
If the angle needs adjusting, see special instructions for angle
adjustment, rotating heat exchangers.
3. Turn the safety isolating switch to the ON position (I).
4. Select the language desired, if you have not already done so.
See Section 5.2 or 13.1.
5. The unit has factory settings which make it ready to use. See
Section 19.2 Commissioning record.
However, in many cases, these settings need to be adjusted to
suit the current installation.
Program the switch clock, operating conditions, temperatures,
airflows and functions according to the procedures in Sections
4-15.
Select whether l/s, m3/s or m3/h shall be used as the flow unit.
(INSTALLATION LEVEL in the HAND-HELD MICRO TERMINAL
menu).
Fill out the Commissioning Record and save it in the document
pocket of the unit.
6. Activate, if needed, manual or auto operation (MAIN MENU)
or lock the speed of the fans (AIR ADJUSTMENT menu).
Adjust the ducting system and air devices as described in Section
3.2.
7. Check and adjust, if required, the pressure balance in the unit
as described in Section 3.3.
8. Finish off with a filter calibration as described in Section 6.4.2.

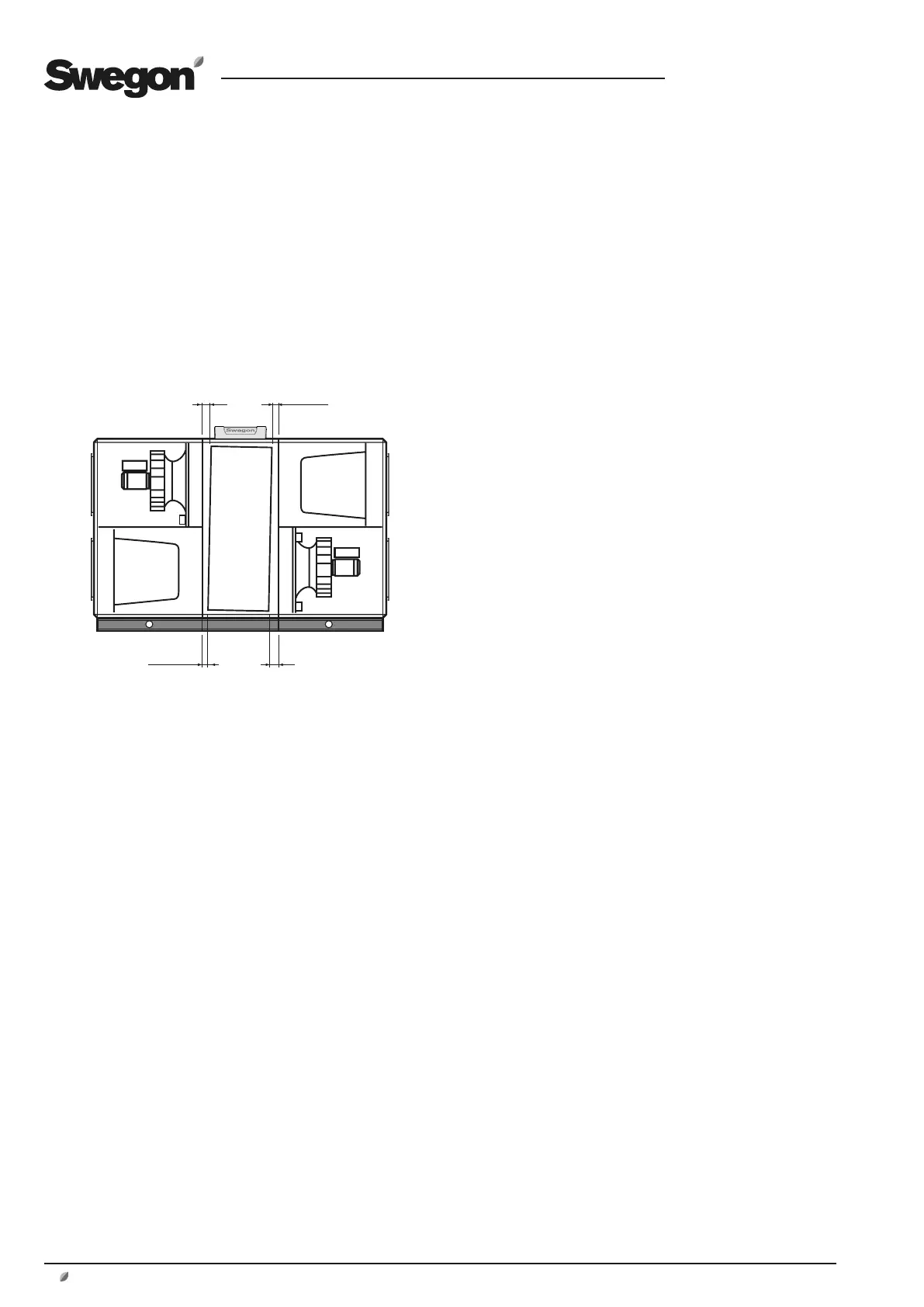

GOLD RX,, sizes 50-80: The illustration shows the factory-
preset rotor inclination in a unit with Fan Arrangement 1.
The inclination must always be towards the filter, which
means that the inclination for Fan Arrangement 2 is in the
other direction.
