1.6 The Components of the Air Handling Units
1.6.1 GOLD RX One-piece air handling unit with rotary heat exchanger
The specific components are outlined below each individually in a simplified and
schematic specification.

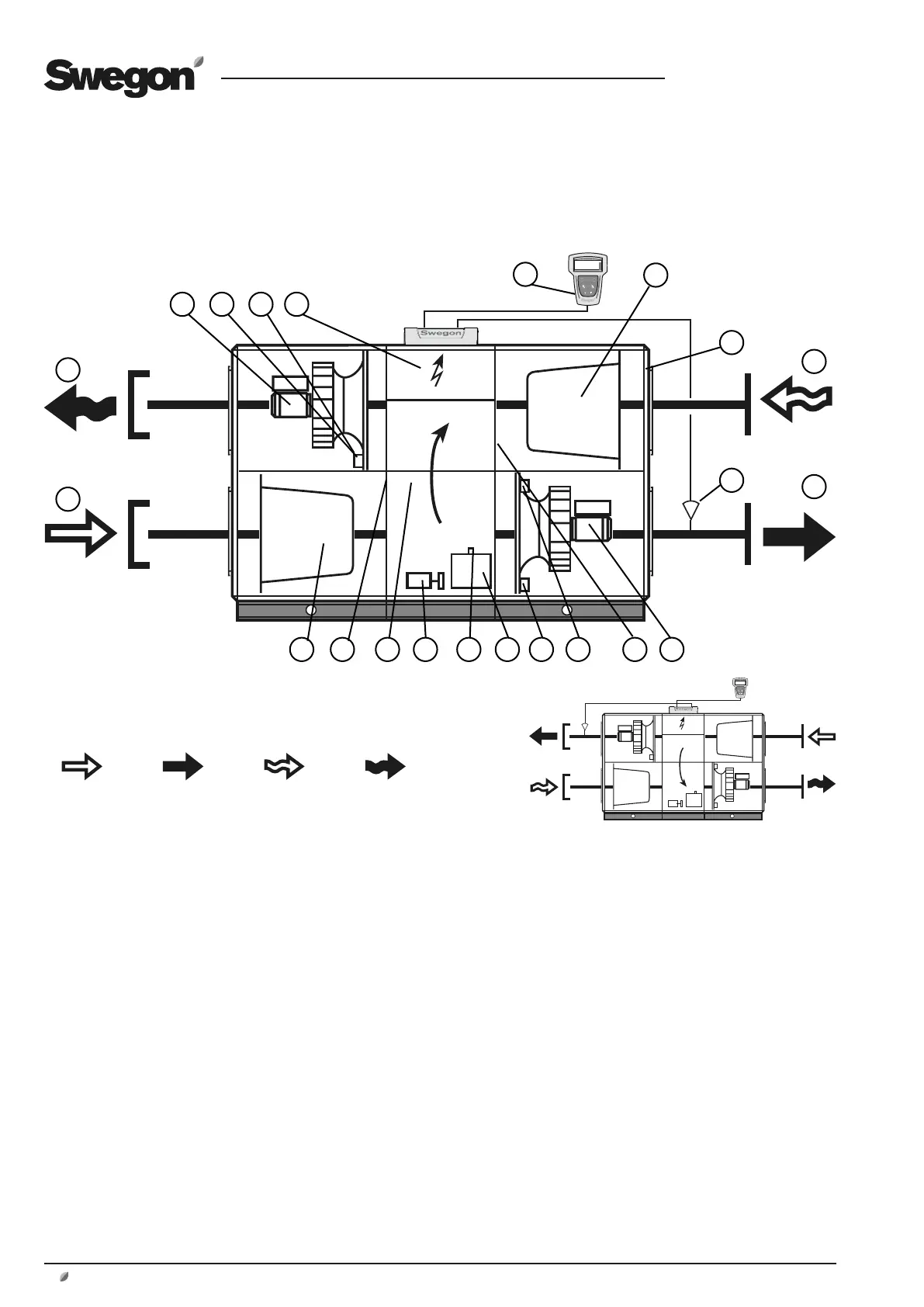

GOLD 04-80: The air handling units can be ordered in the
right-hand version as shown in Fig. 1a or in the left-hand
version as shown in Fig. 1b.
GOLD 12-80: The air handling unit in Fig 1a shows Fan
Arrangement 1. The units can also be ordered with Fan
Arrangement 2; the fans and filters are then vertically
mirror-inverted.
In the left-hand version (Fig. 1b), the components marked
with an asterisk change function and designation (the
components are named according to whether they are for
supply air or extract air).
The location of the components and their designa-
tion
1 OUTDOOR AIR* (Left-hand version: Extract air)
2 EXHAUST AIR* (Left-hand version: Supply air)
3 Extract air fan* with motor and motor control system
4 Pressure transducer by extract air fan*
(Position on function selector switch = 1)
5 Pressure transducer by supply air filter*
(Position on function selector switch = 3)
6 Electrical equipm. cubicle with control unit
7 Hand-held micro terminal
8 Extract air filter*
9 Adjustment plates (For left-hand version: by left-hand filter
section)
10 Supply air temp. sensor (to be mounted in supply air duct)
11 EXTRACT AIR* (Left-hand version: Outdoor air)
12 SUPPLY AIR* (Left-hand version: Exhaust air)
13 Supply air filter*
14 Outdoor temperature sensor*
15 Heat exchanger
16 Heat exchanger drive motor
17 Sensor for rotation monitor
18 Control unit for the heat exchanger
19 Pressure transducer by supply air fan*
(Position on function selector switch = 2)
20 Pressure transducer by extract air filter*
(Position on function selector switch = 4)
21 Extract air temperature sensor*
22 Supply air fan* with motor and motor control system
Fig. 1a
Right-hand version
Left-hand version
Fig 1b
Outdoor air Supply air Extract air Exhaust air
1
2
3 4 5 6
7
10
8
9
11
12
14 15 16 17 18 19 20 21 2213
