10. AC Generator / Starting Clutch
10-9

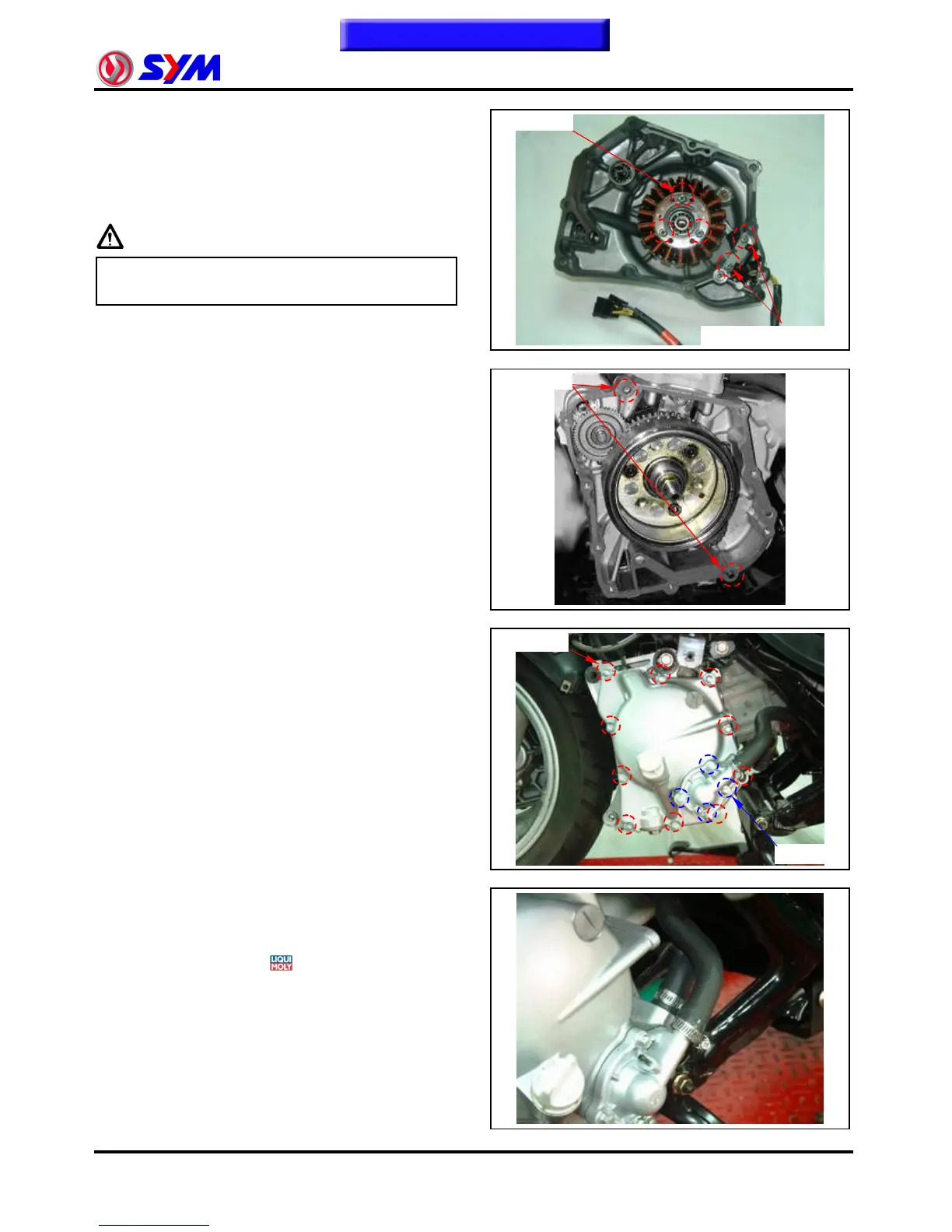

AC Generator Installation
Install the AC Generator coil onto right crankcase
cover (3 screws).
Install the CPS (2 screws).
Tie the wire harness securely onto the indent of
crankcase.
Caution
Make sure that the wire harness is placed
under pulse generator.
Right Crankcase Cover Installation
Install dowel pins and new gasket.
Remove water pump cover.
Install right crankcase cover onto the crankcase.
Note: Align the water pump shaft indent with the oil
pump shaft.
Install right crankcase cover (10 screws).
Install the dowel pin, new gasket and water pump
cover onto crankcase cover.
Connect coolant hoses onto the right crankcase
cover.
Add engine oil and coolant.
Recommended coolant LIQUI MOLY
To this chapter conte
nts
Pulse generator screws
3 screws
10 bolts
4 bolts
Dowel pins
