Sym Mio 100 Service Manual

9. Final Drive Mechanism
9-5

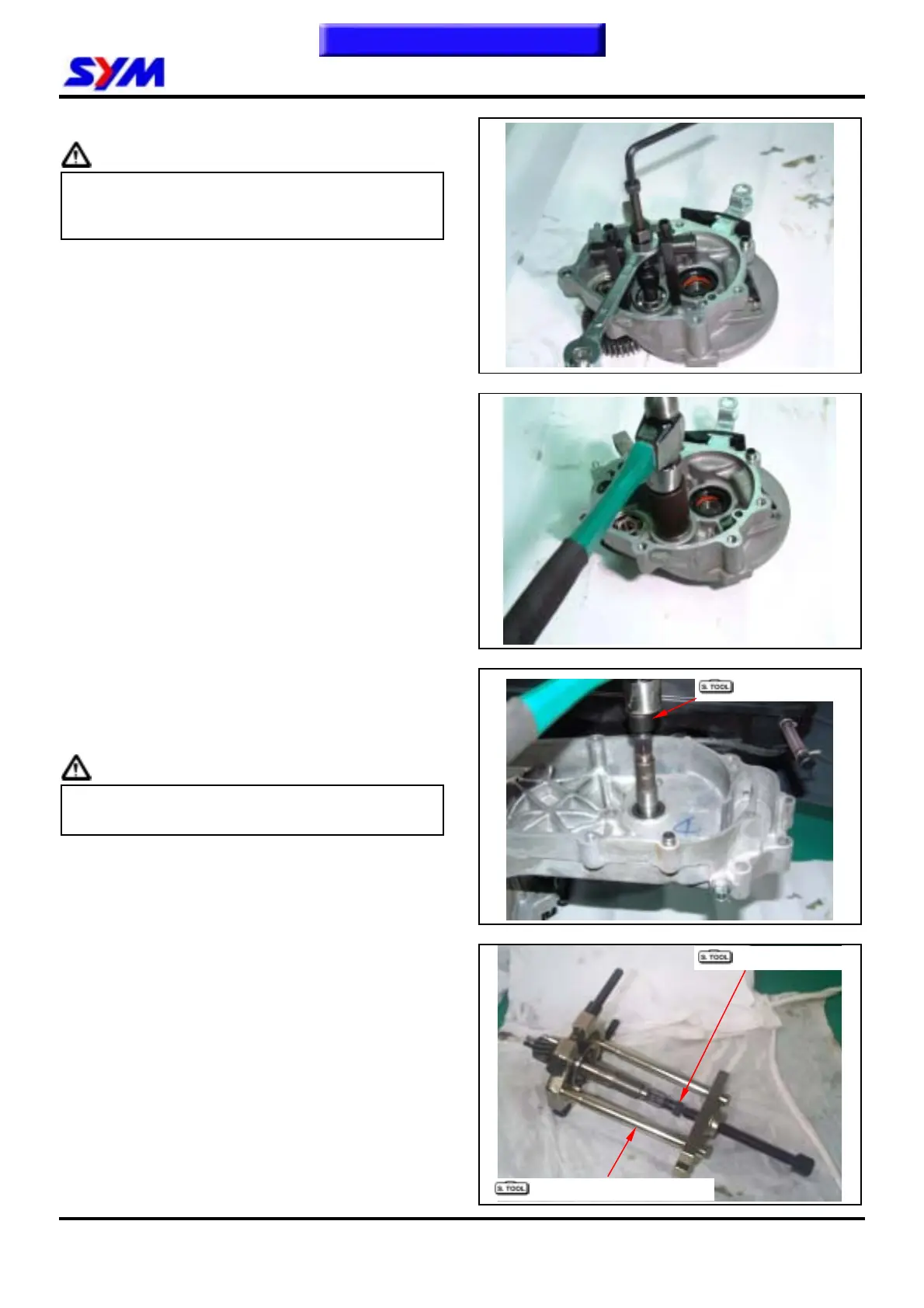

Bearing Replacement
Caution
z Never install used bearings. Once bearing
removed, it has to be replaced with new one.
Remove drive shaft bearing from left crankcase
using following tools;
Special Service Tool:
Inner type bearing puller SYM-6204002
Install new drive shaft bearing into left crankcase.
Special Service Tool:
Bearing (6204) installer SYM-9110400
Bearing (6301) installer SYM-9610000
Bearing (6203/6004UZ) installer (Ø17)
SYM-9620000
Press out the drive shaft from the gear box cover.
Remove oil seal from the gear box cover.
Remove the drive shaft bearing from the gear box
cover with the inner type bearing puller.
Caution
z Using the bearing protector as pressing out
the driving shaft from the gear box cover.
Special Service Tool: Shaft protector
If the driving shaft is pulled out with its bearing,
then remove the bearing with bearing puller and
bearing protector.
Special Service Tool:
Multi-functional bearing puller or Outer type
bearing puller SYM-6204001
Shaft protector
Outer type bearing puller
Shaft protector
