Sym Mio 100 Service Manual

6. Cylinder Head / Valve
6-10

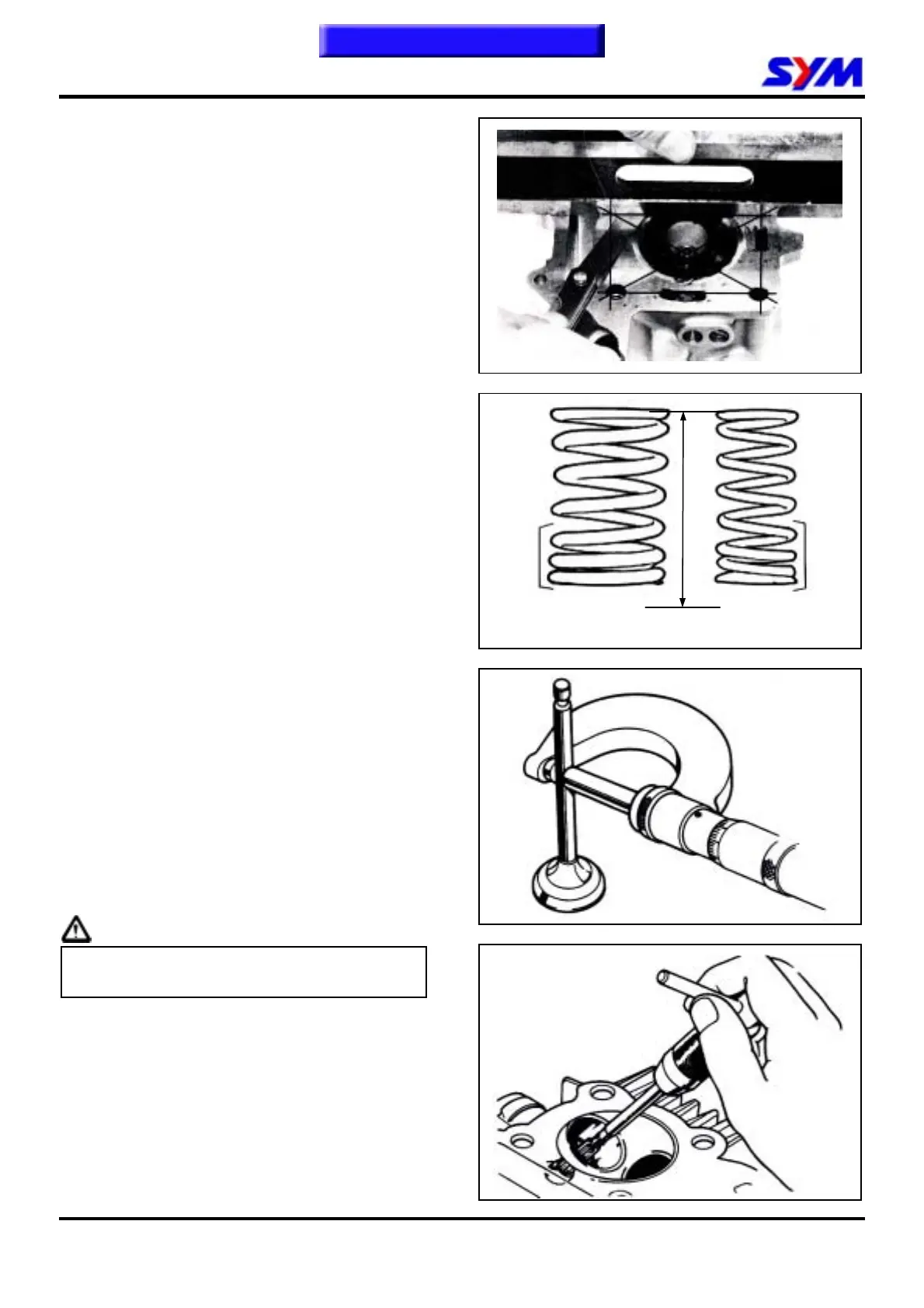

Cylinder Head Inspection
Cylinder Head
Check if spark plug and valve holes are crack.
Measure cylinder head wrap age with a
straightedge and flat feeler gauge.
Service limit: 0.05mm
Valve spring free length
Measure the free length of intake and exhaust
valve springs.
Service limit: 31.5mm
Valve stem
Check if valve stems are bend, crack or burn.
Check the operation condition of valve stem in
valve guide, and measure & record the valve stem
outer diameter.
Service Limit: (Refer to page 2)
Valve guide
Caution
z Before measuring the valve guide, clean
carbon deposits with reamer.
Special Service Tool:
5.0mm valve guide reamer
Measure and record each valve guide inner
diameters.
Service limit: 5.03mm
The difference that the inner diameter of valve
guide deducts the outer diameter of valve stem is
the clearance between the valve stem and valve
guide.
Service Limit: (Refer to page 2)
The narrow pitch of the spring shall face to the
combustion chamber.
5.0mm valve guide reamer
To this chapter contents

Sym Mio 100 Specifications

General

Engine Type	4-stroke, Single Cylinder
Starting System	Electric & Kick
Transmission	CVT
Fuel System	Carburetor
Front Brake	Disc
Rear Brake	Drum
Tires Front	90/90-10
Tires Rear	90/90-10
Length	1760 mm
Height	1070 mm
Wheelbase	1230 mm
Fuel Tank Capacity	5.2 L
