Sym Mio 100 Service Manual

14. Steering / Front Wheel / Front Cushion
14-5

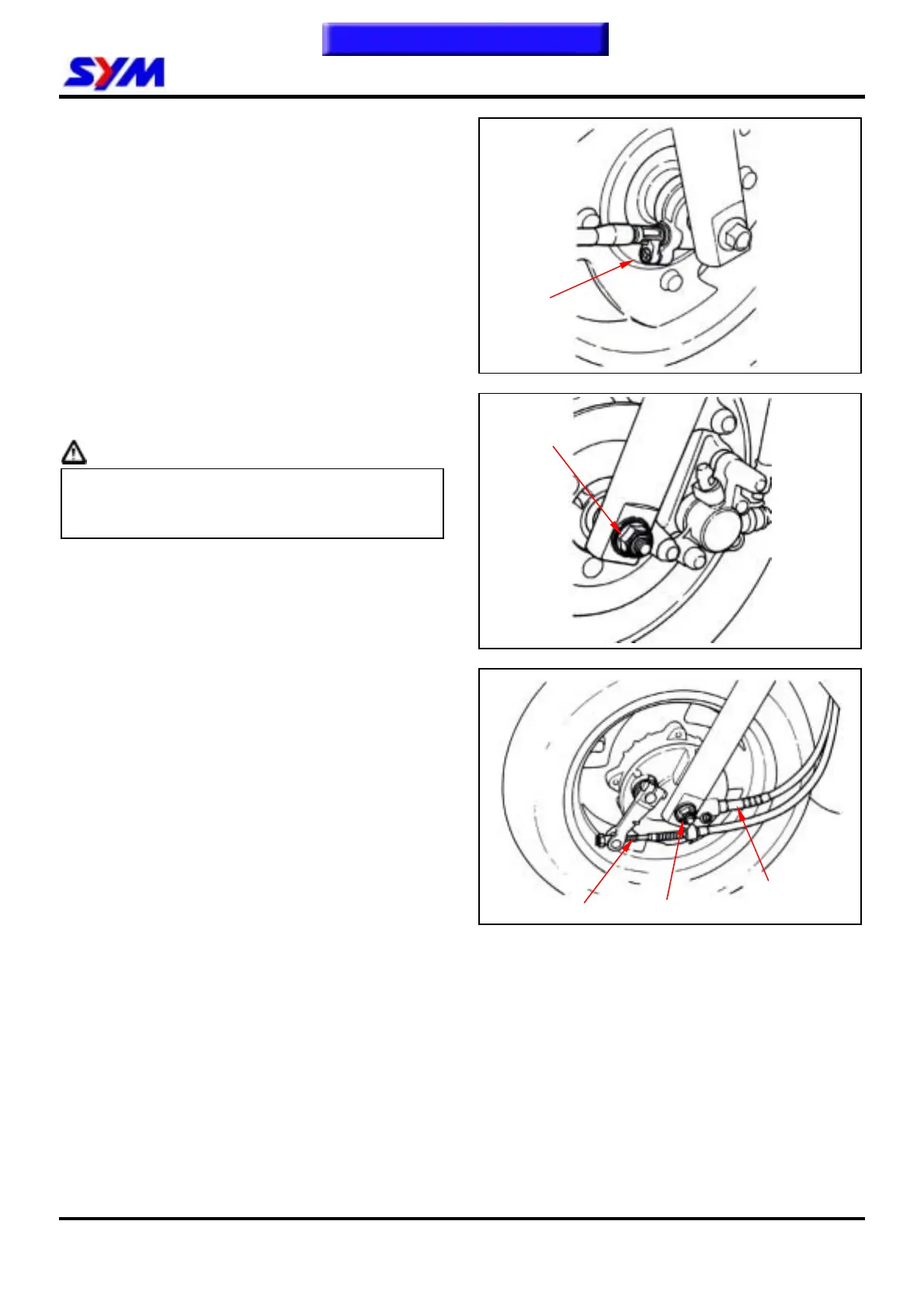

Front Wheel
Removal
Disc Brake
Support body bottom and lift front wheel free of
ground with a stand.
Remove the screw, and disconnect speedometer
cable from the gear box.
Remove the wheel axle nut and pull out the axle.
Then, remove the front wheel.
Caution
z Do not operate the front brake lever to avoid
to pressing out the brake lining when
removing the master cylinder.
Drum Brake
Support body bottom and lift front wheel free of
ground with a stand.
Remove the bolts, and disconnect speedometer
cable.
Remove the wheel axle nut and pull out the axle.
Then, remove the front brake panel and the front
wheel.
Wheel axle nut
Screw
Brake cable
Wheel axle nut
Speedomete
r
cable
To this chapter contents

Sym Mio 100 Specifications

General

Engine Type	4-stroke, Single Cylinder
Starting System	Electric & Kick
Transmission	CVT
Fuel System	Carburetor
Front Brake	Disc
Rear Brake	Drum
Tires Front	90/90-10
Tires Rear	90/90-10
Length	1760 mm
Height	1070 mm
Wheelbase	1230 mm
Fuel Tank Capacity	5.2 L
