Sym Mio 100 Service Manual

7. Cylinder / Piston
7-3

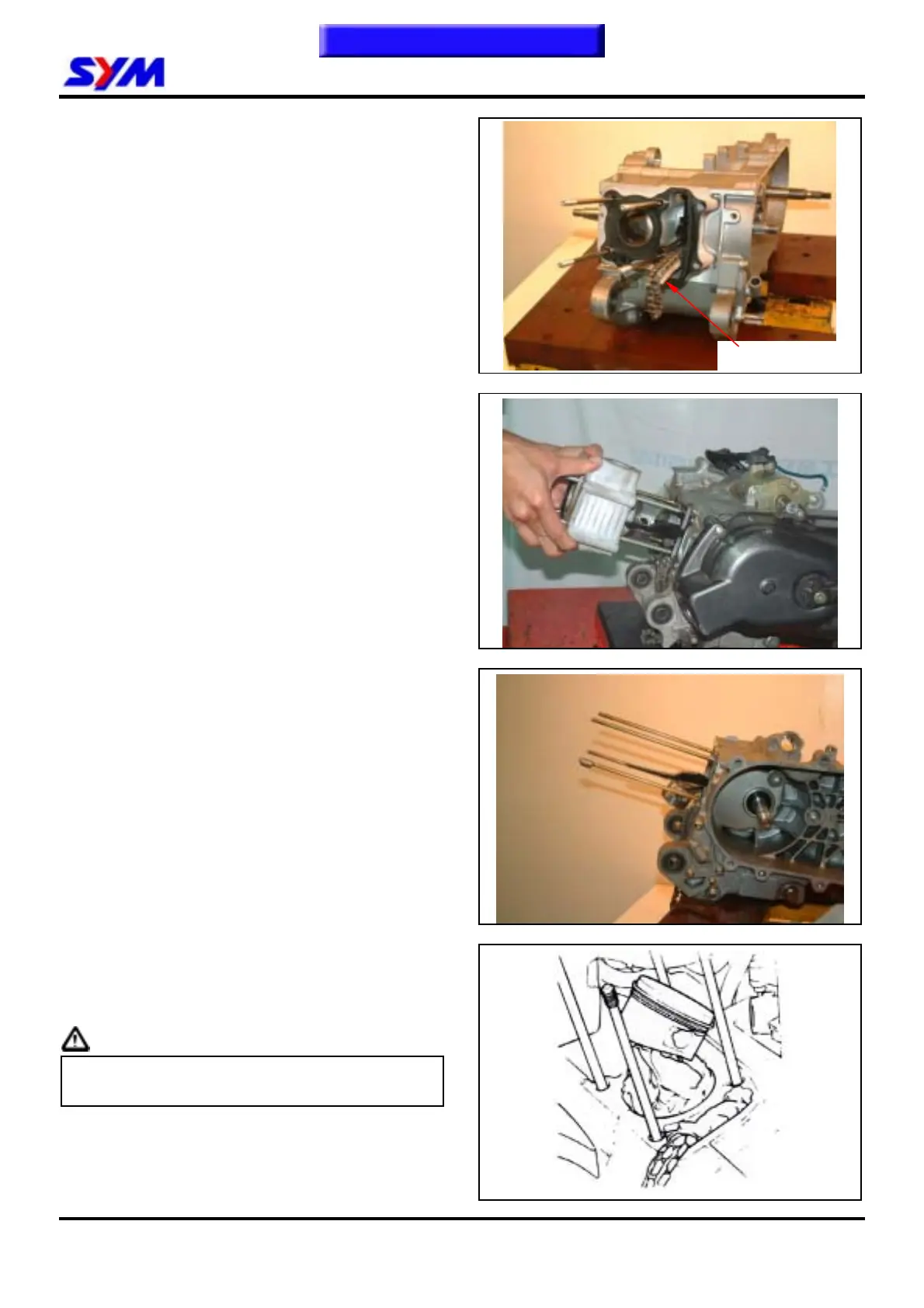

Cylinder Removal
Remove cylinder head. (Refer to chapter 6)
Remove cam chain plate.
Remove cylinder.
Remove cylinder gasket and lock pins.
Cover the holes of crankcase and cam chain with
a piece of cloth.
Clean up all residues or foreign materials from the
two matching surfaces of cylinder and crankcase.
Caution
z To soap the residues into solvent so that the
residues can be removed more easily.
Cam chain plate
