Sym Mio 100 Service Manual

6. Cylinder Head / Valve
6-4

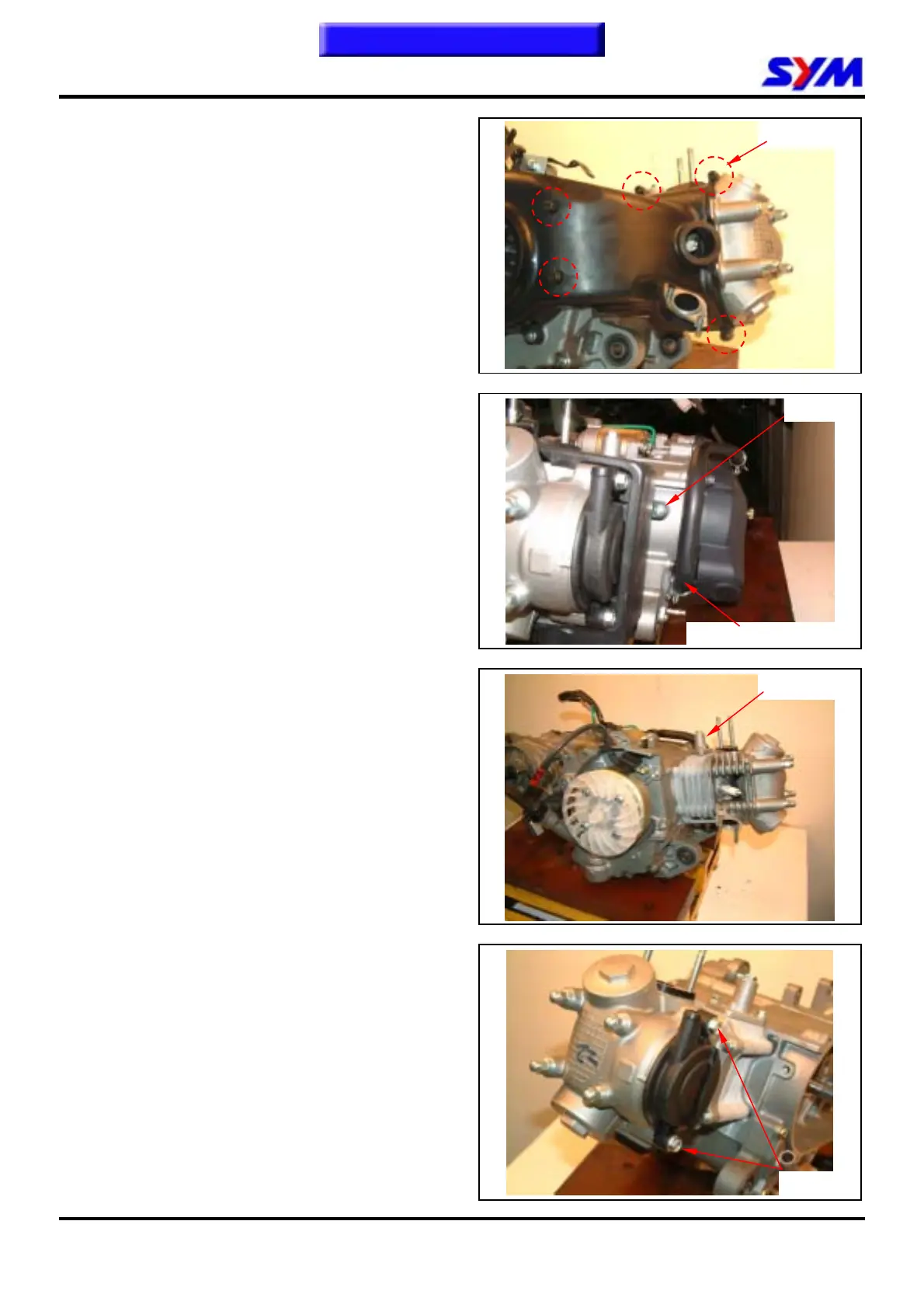

Cylinder Head Removal
Remove the right cooling shroud from the engine
outer cover. (5 screws)
Remove the left cooling shroud (1 bolt).
Remove the crankcase blow-by system hose from
the cylinder head.
Remove the cam chain tensioner (2 bolts).
Remove the cylinder head side cover. (2 bolts)
5 Screws
Tensioner
2 bolts
Blow-by system hose
1 bolt
To this chapter contents

Sym Mio 100 Specifications

General

Engine Type	4-stroke, Single Cylinder
Starting System	Electric & Kick
Transmission	CVT
Fuel System	Carburetor
Front Brake	Disc
Rear Brake	Drum
Tires Front	90/90-10
Tires Rear	90/90-10
Length	1760 mm
Height	1070 mm
Wheelbase	1230 mm
Fuel Tank Capacity	5.2 L
