Sym Mio 100 Service Manual

14. Steering / Front Wheel / Front Cushion
14-1
Mechanism Diagram ··························14-1
Operational Precautions····················14-2
Trouble diagnosis ······························14-2
Steering Handle··································14-3
Front Wheel ········································ 14-5
Front Cushion ···································· 14-10
Front Fork / Steering Column ··········· 14-10

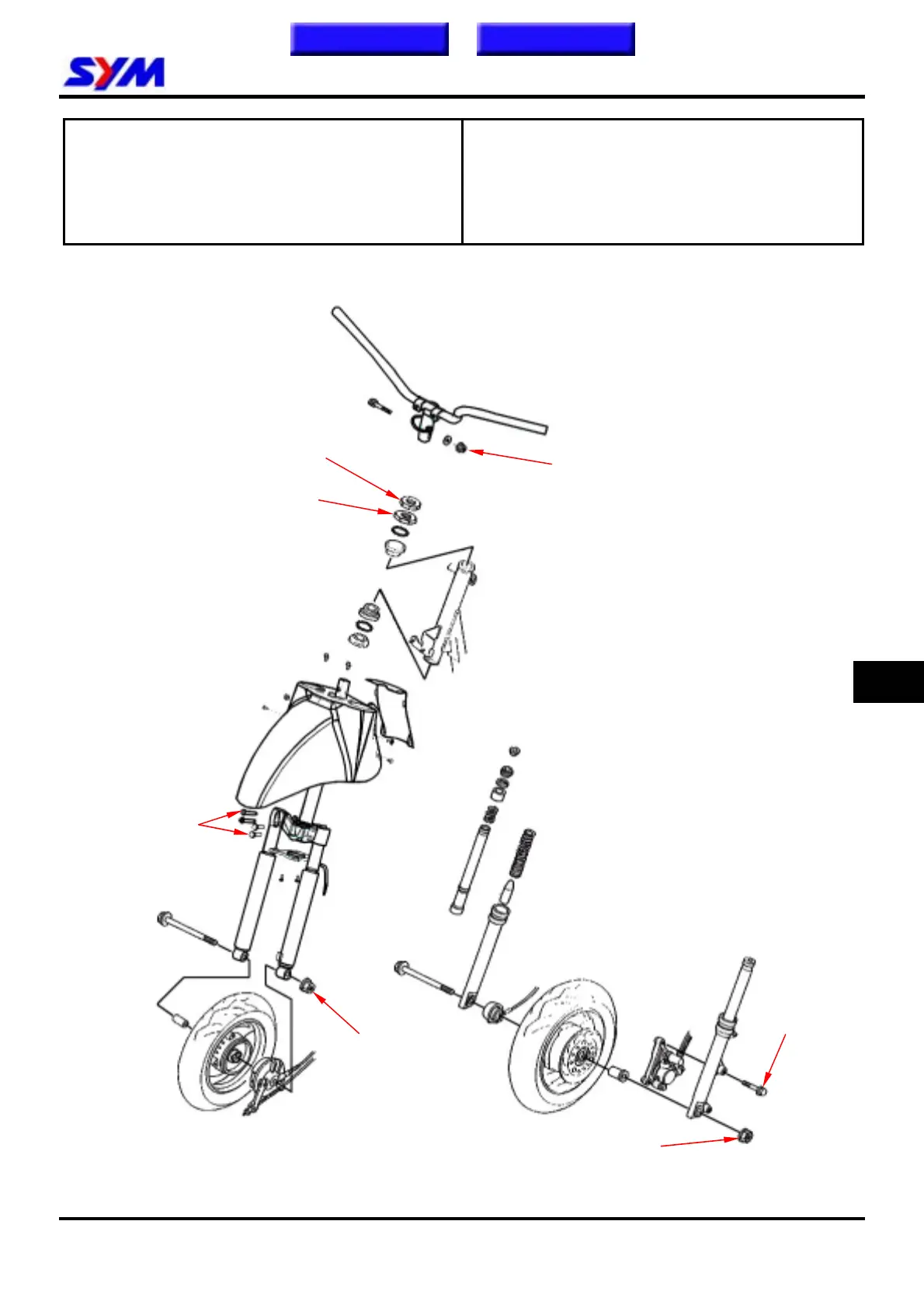

Mechanism Diagram
3.1~3.5kgf-m
1.0~2.0kgf-m
5.0~7.0kgf-m
0.2~0.3kgf-m
4.0~5.0kgf-m
5.0~7.0kgf-m
2.4~3.0kgf-m
