16. Electrical Equipment
16-16

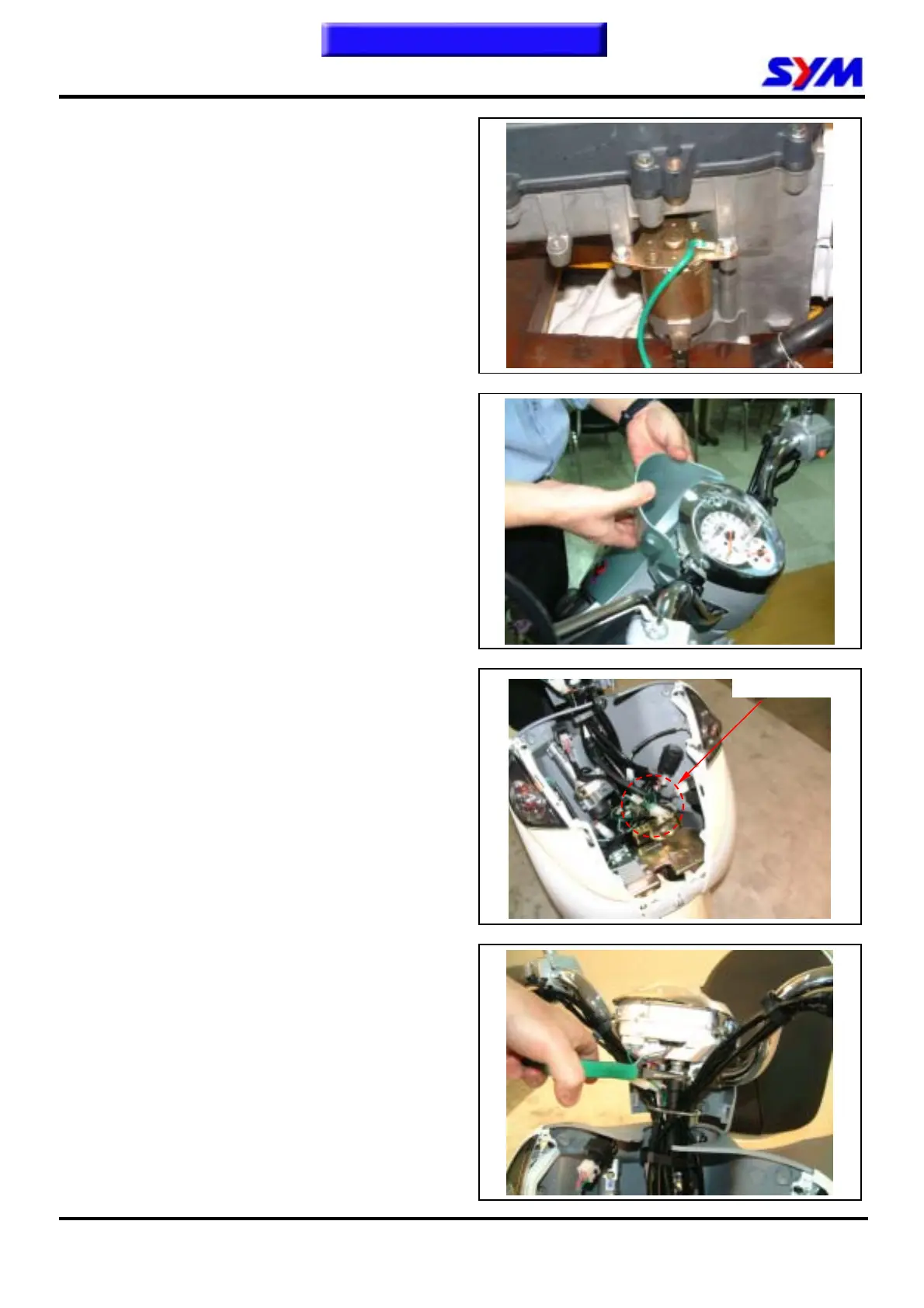

Start Motor Removal
Remove the right side cover. (1 screw)
Remove the air cleaner mounting bolts. (2 bolts)
Firstly, remove the battery negative (-) terminal,
and then remove the positive (+) terminal.
Remove the luggage box.
Remove the start motor power wire.
Remove the start motor mounting bolts and motor.
(2 bolts)
Starting Motor Installation
Install the motor in reverse order of removal.
Meter
Removal
Remove the handle front cover.
Remove front cover.
Remove the cable coupler of the meter.
Remove speedometer cable.
Meter coupler
To this chapter contents

Sym Mio 100 Specifications

General

Engine Type	4-stroke, Single Cylinder
Starting System	Electric & Kick
Transmission	CVT
Fuel System	Carburetor
Front Brake	Disc
Rear Brake	Drum
Tires Front	90/90-10
Tires Rear	90/90-10
Length	1760 mm
Height	1070 mm
Wheelbase	1230 mm
Fuel Tank Capacity	5.2 L
