Sym Mio 100 Service Manual

7. Cylinder / Piston
7-4

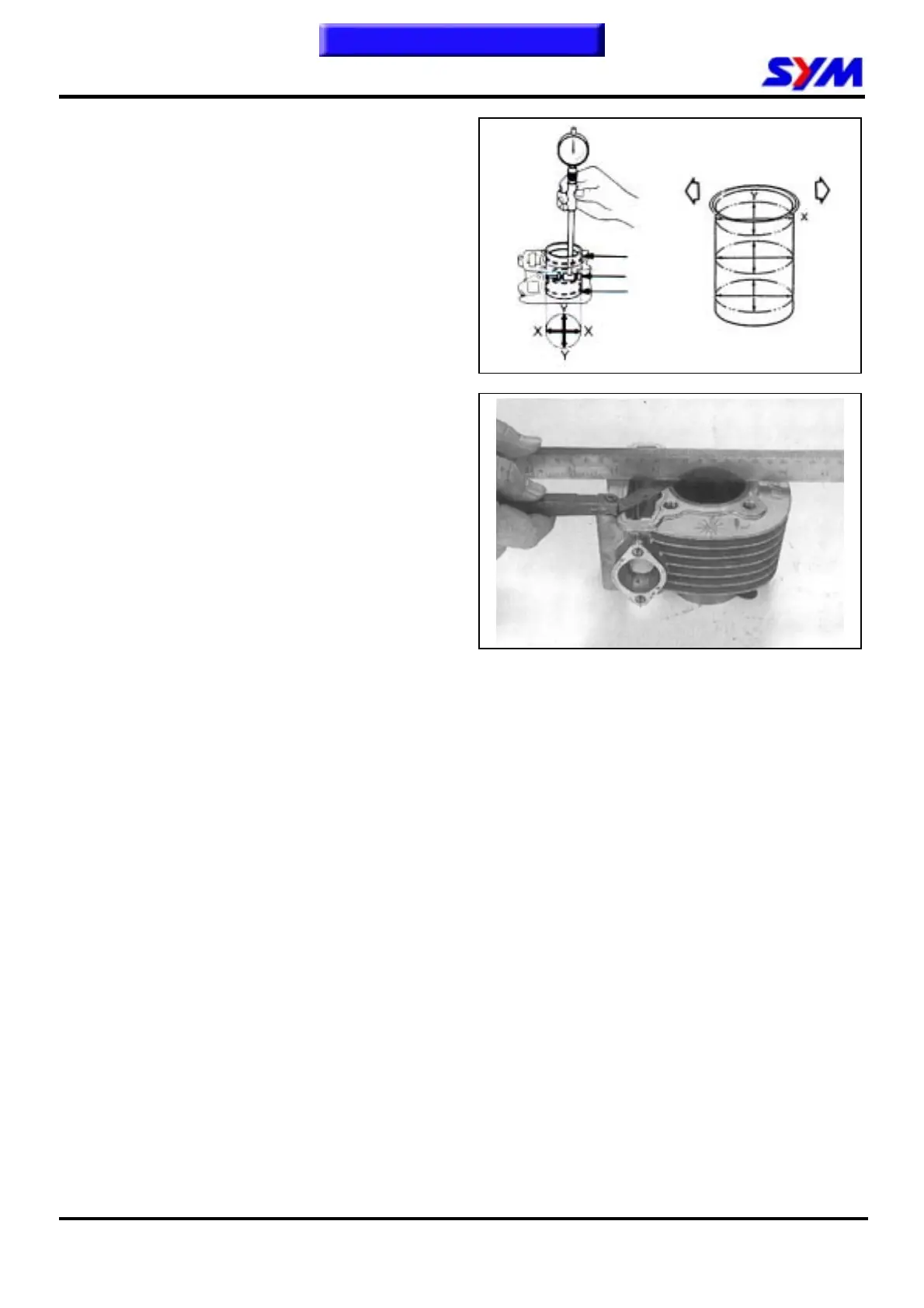

Inspection
Check if the inner diameter of cylinder is worn out
or damaged.
In the 3 positions (top, center and bottom) of
cylinder, measure the X and Y direction values
respective in the cylinder.
Service limit: (Refer to page 2)
Calculate both the real roundness (the difference
between X and Y motion values) and the
cylindrical roundness (the difference in the top,
center or bottom positions of X or Y motion values.)
Then, determinate by the max. value
Service limit:
Real roundness: correct or replace as over
0.05mm
Cylindrical roundness: correct or replace as
over 0.05mm
Check Cylinder Wrap age.
Service limit: 0.05mm
Top
Center
Bottom
Exhaust side
Intake side
To this chapter contents

Sym Mio 100 Specifications

General

Engine Type	4-stroke, Single Cylinder
Starting System	Electric & Kick
Transmission	CVT
Fuel System	Carburetor
Front Brake	Disc
Rear Brake	Drum
Tires Front	90/90-10
Tires Rear	90/90-10
Length	1760 mm
Height	1070 mm
Wheelbase	1230 mm
Fuel Tank Capacity	5.2 L
