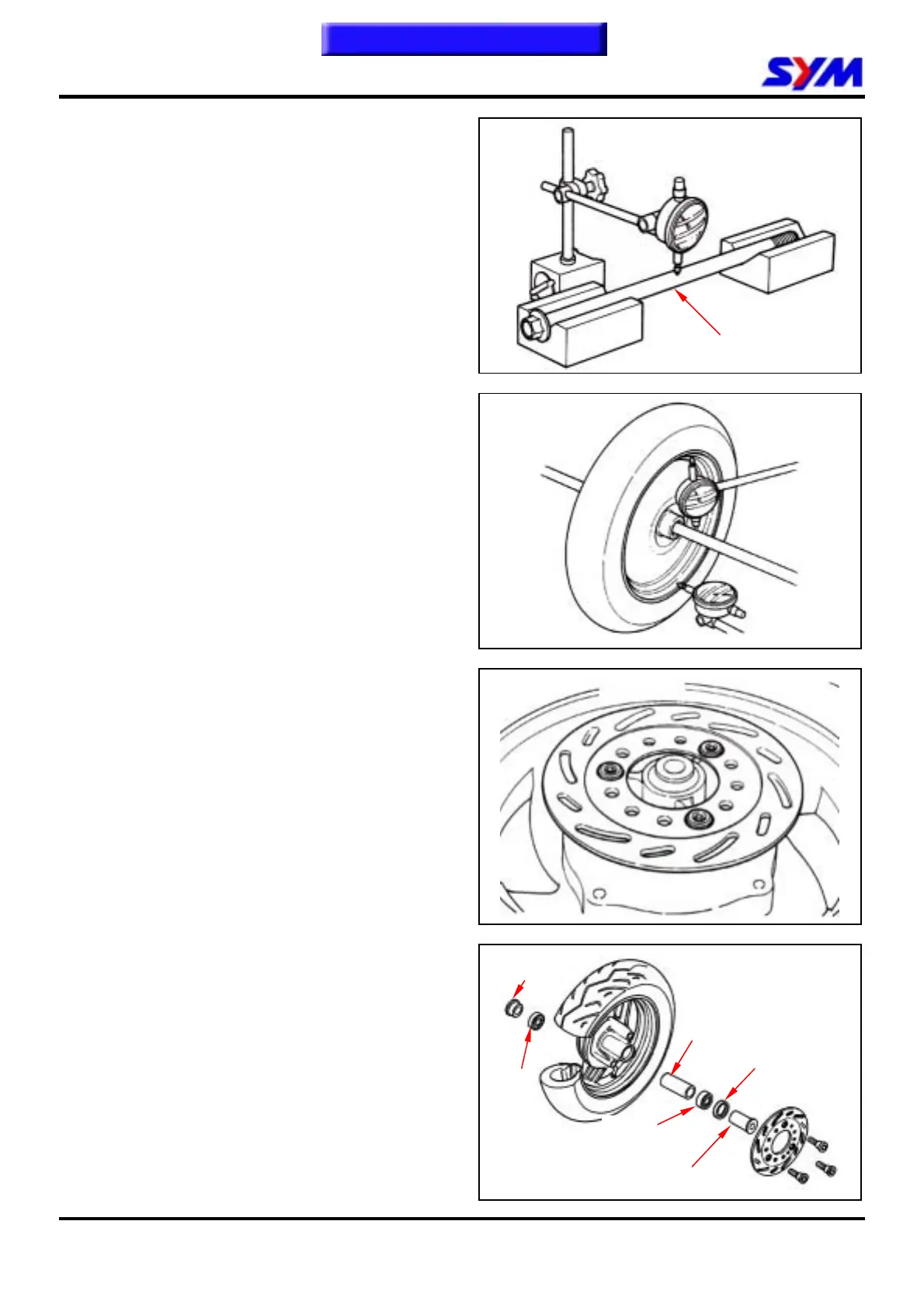

Sym Mio 100 Service Manual

14. Steering / Front Wheel / Front Cushion
14-6
Inspection
Wheel axle
Set the axle in V-blocks and measure the run-out.
Service limit: above 0.2 mm.
Wheel Rim
Place the wheel onto a rotated bracket.
Turn the wheel with hand and measure its wobble
value with a dial gauge.
Service limit:
Radial : above 0.2 mm
Axial : above 0.2 mm
Disassembly (Disc brake type)
Remove 3 socket-hex head bolts and the brake
disc.
Remove the left axle ring and dust seal.
Remove the dust seal on the right side of
speedometer gear.
Remove the bearing with the inner type bearing
remover.
Take out the bearing spacer and then remove the
other bearing.
Tool:
Inner type bearing remover SYM-6204002
Speedomete
r
gear dust seal
Wheel axle
Dust seal
Wheel side collar
Bearing
Bearing spacer
DISC BRAKE
Bearing
