Sym Mio 100 Service Manual

14. Steering / Front Wheel / Front Cushion
14-7

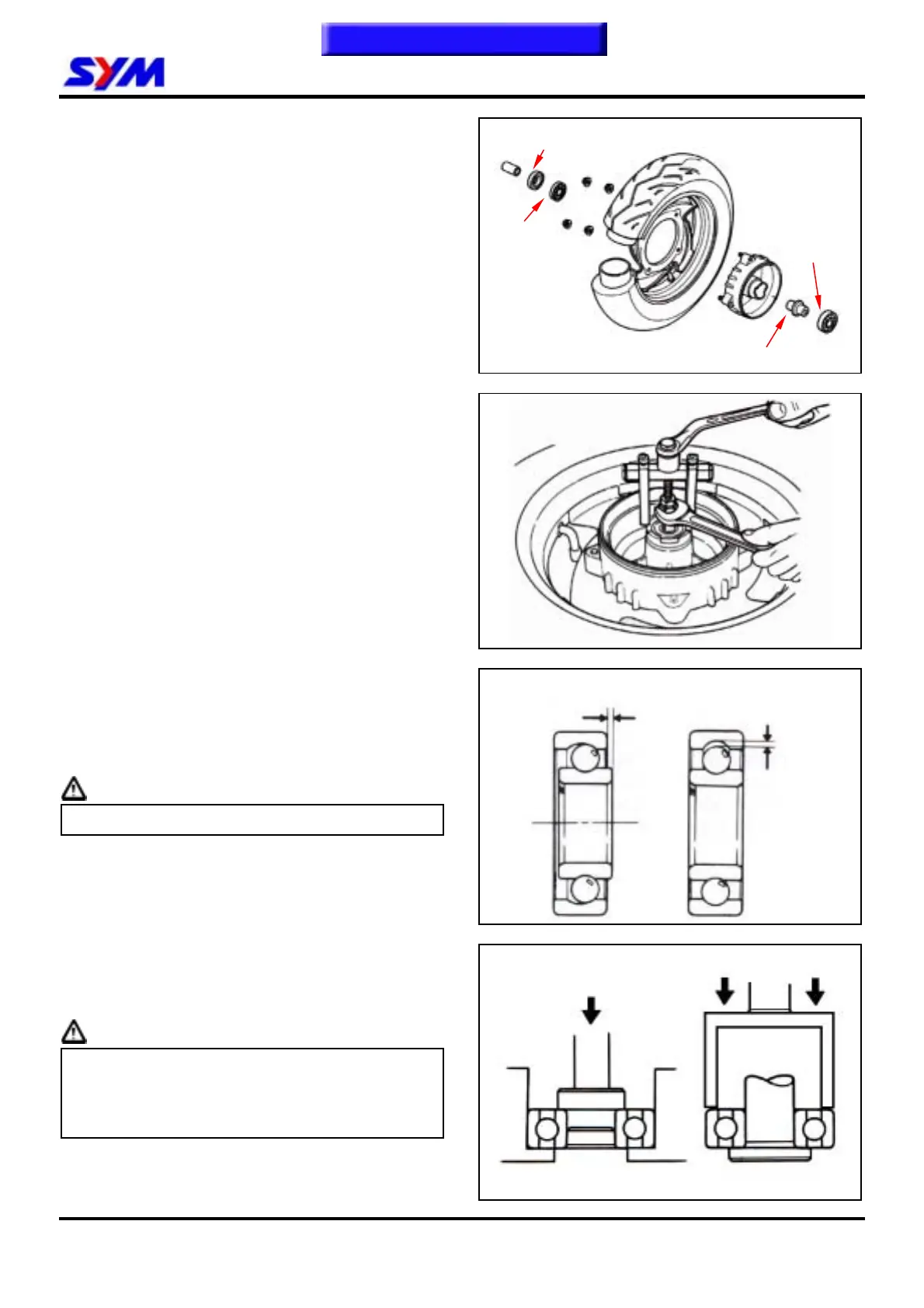

Disassembly (Drum Brake Type)
Remove the right dust seal.
Remove the bearing with the inner type bearing
remover.
Take out the bearing spacer and then remove the
other bearing.
Tool:
Inner type bearing remover SYM-6204002
Bearing Inspection
Turn the inner race of bearing with fingers. The
bearing should be turn smoothly. Also check if the
outer collar is tightly connected to the wheel hub.
If the bearing does not turn smoothly, or if they are
too loose in the races, or noising, then, remove
and replace the bearings with new ones.
Caution
z The bearing must be replaced in pair.
Installation
Install the bearing according to the reverse
procedure of removal.
Apply some grease into the bearing seat of the
wheel hub.
Install the left bearing onto the seat.
Install the bearing spacer and then install the right
bearing onto the seat.
Caution
z Do not install used bearing and replace the
bearing once it has been removed.
z Do not the bearing in tile motion when
installing.
Tool:
C-type compressor or bearing compressor
Clearance
Clearance
Bearing spacer
DRUM BRAKE
Bearing
Dust seal
Bearing
Both samples will damage the bearing
To this chapter contents

Sym Mio 100 Specifications

General

Engine Type	4-stroke, Single Cylinder
Starting System	Electric & Kick
Transmission	CVT
Fuel System	Carburetor
Front Brake	Disc
Rear Brake	Drum
Tires Front	90/90-10
Tires Rear	90/90-10
Length	1760 mm
Height	1070 mm
Wheelbase	1230 mm
Fuel Tank Capacity	5.2 L
