Sym Mio 100 Service Manual

16. Electrical Equipment
16-23

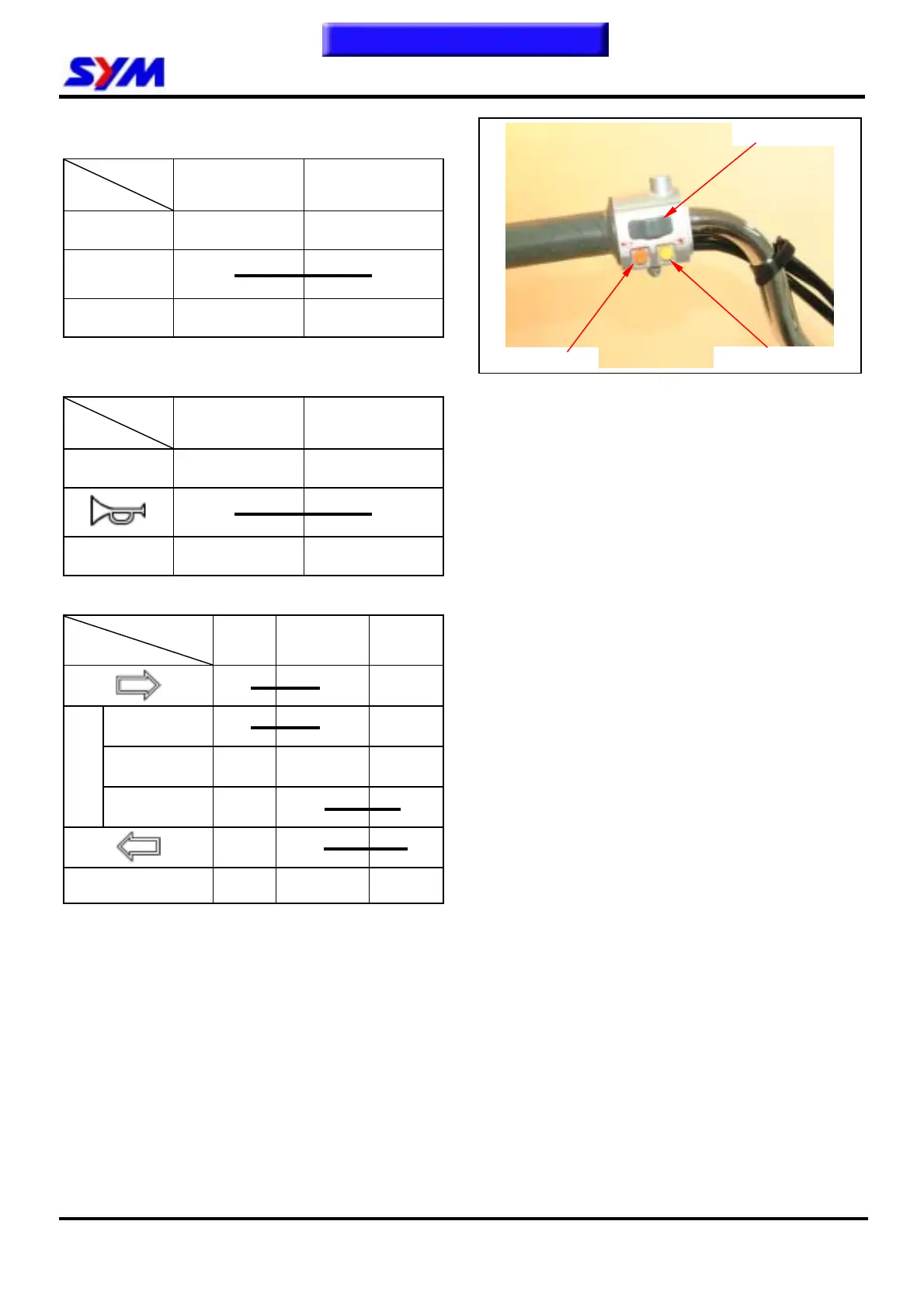

Right Handle Switch
Seat open switch
Pin
Location
BAT HO
FREE
PUSH
●
●
Wire color Black Purple
Horn switch
Pin
Location
BAT HO
FREE
●
●
Wire color Black Light green
Winker switch
Pin
Location
W R L
●
●
FROM R
●
●
PUSH OFF
N
FROM L
●
●
●
●
Wire color Gray light blue Orange
Winker switch
Seat open switch
Horn switch
