Sym Mio 100 Service Manual

6. Cylinder Head / Valve
6-8

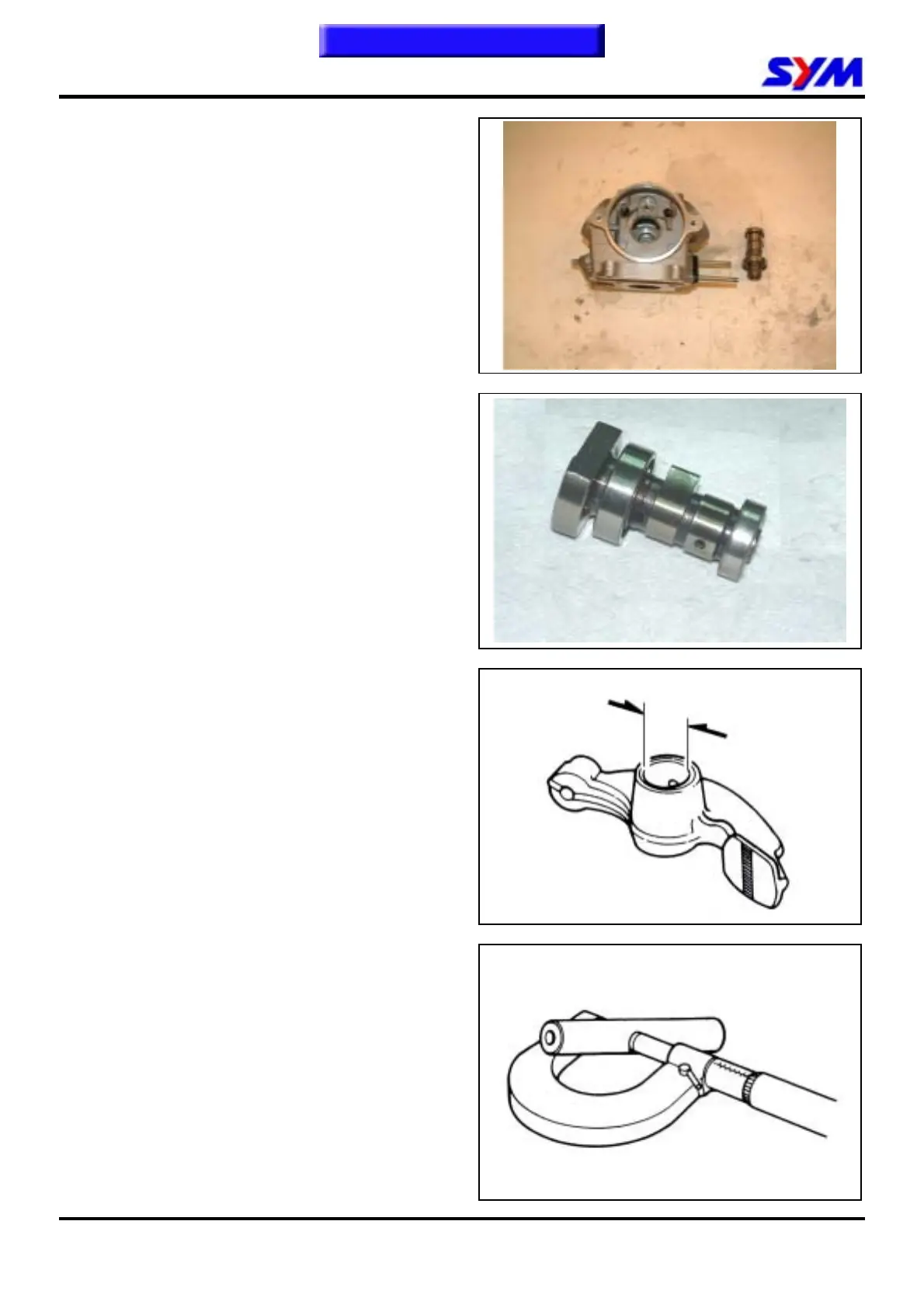

Remove the camshaft.
Camshaft Inspection
Inspect cam lobe height for damaged.
Service Limit:
(Refer to page 2)
Inspect the camshaft bearing for looseness or
wear out. If any damaged, replace whole set of
camshaft and bearing.
Measure the cam rocker arm I.D.
Service Limit:
(Refer to page 2)
Measure the active O.D. of the cam rocker arm
shaft and cam rocker arm.
Service Limit:
(Refer to page 2)
Calculate the clearance between the rocker arm
shaft and the rocker arm.
Service Limit:
(Refer to page 2)
To this chapter contents

Sym Mio 100 Specifications

General

Engine Type	4-stroke, Single Cylinder
Starting System	Electric & Kick
Transmission	CVT
Fuel System	Carburetor
Front Brake	Disc
Rear Brake	Drum
Tires Front	90/90-10
Tires Rear	90/90-10
Length	1760 mm
Height	1070 mm
Wheelbase	1230 mm
Fuel Tank Capacity	5.2 L
