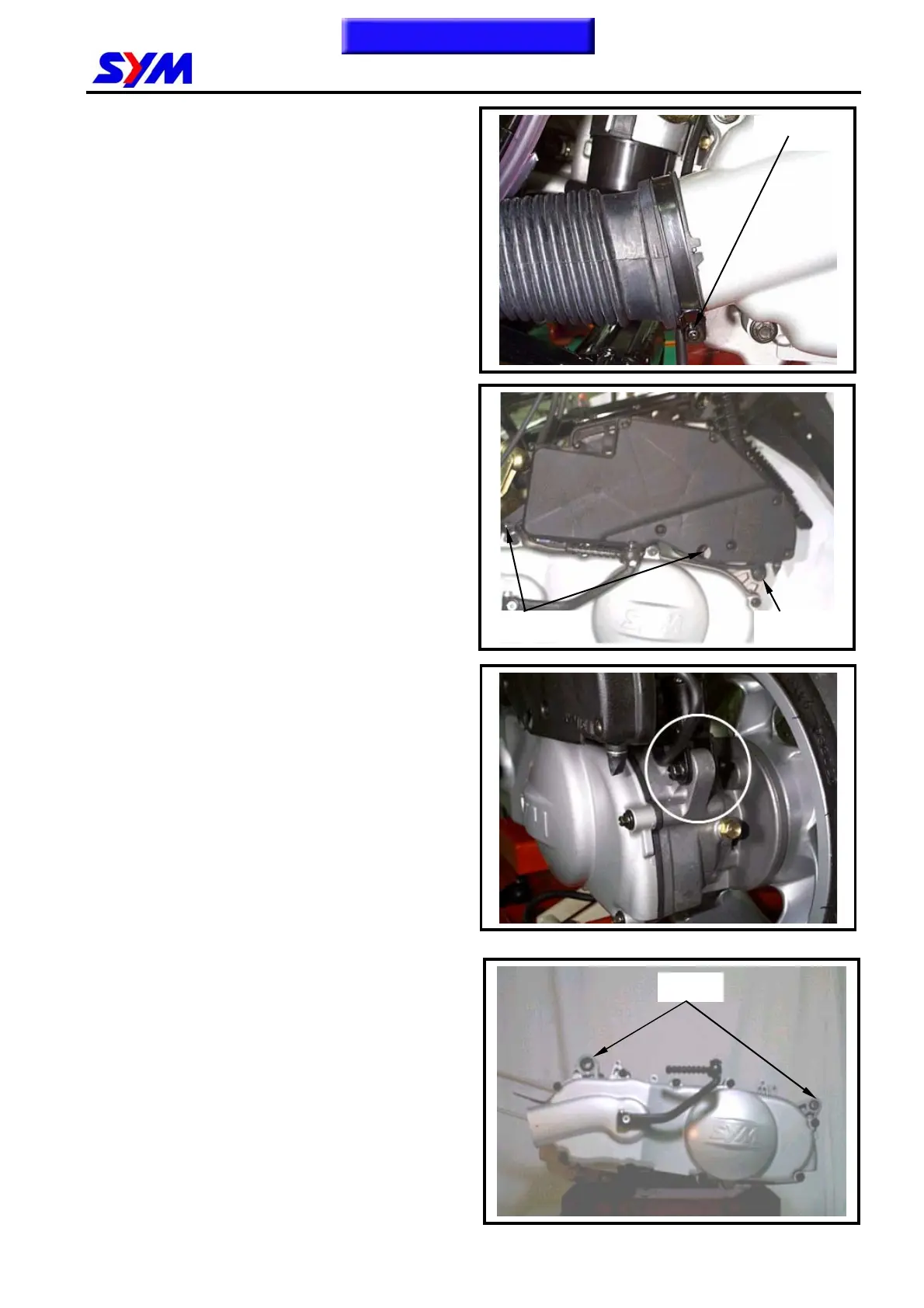

6. Engine Removal
6-5
Loosen the mounting screw of left crankcase duct,
and then remove the duct.
.
Remove the mounting bolts (2 bolts) of air
cleaner.
Remove the lower mounting bolt of left shock
absorber.
Check if engine mounting bracket bushing and
cushion rubber for damage.
Bush
Bolt
×
2
Bolt
×1
Screw
