Oil Pump Removal

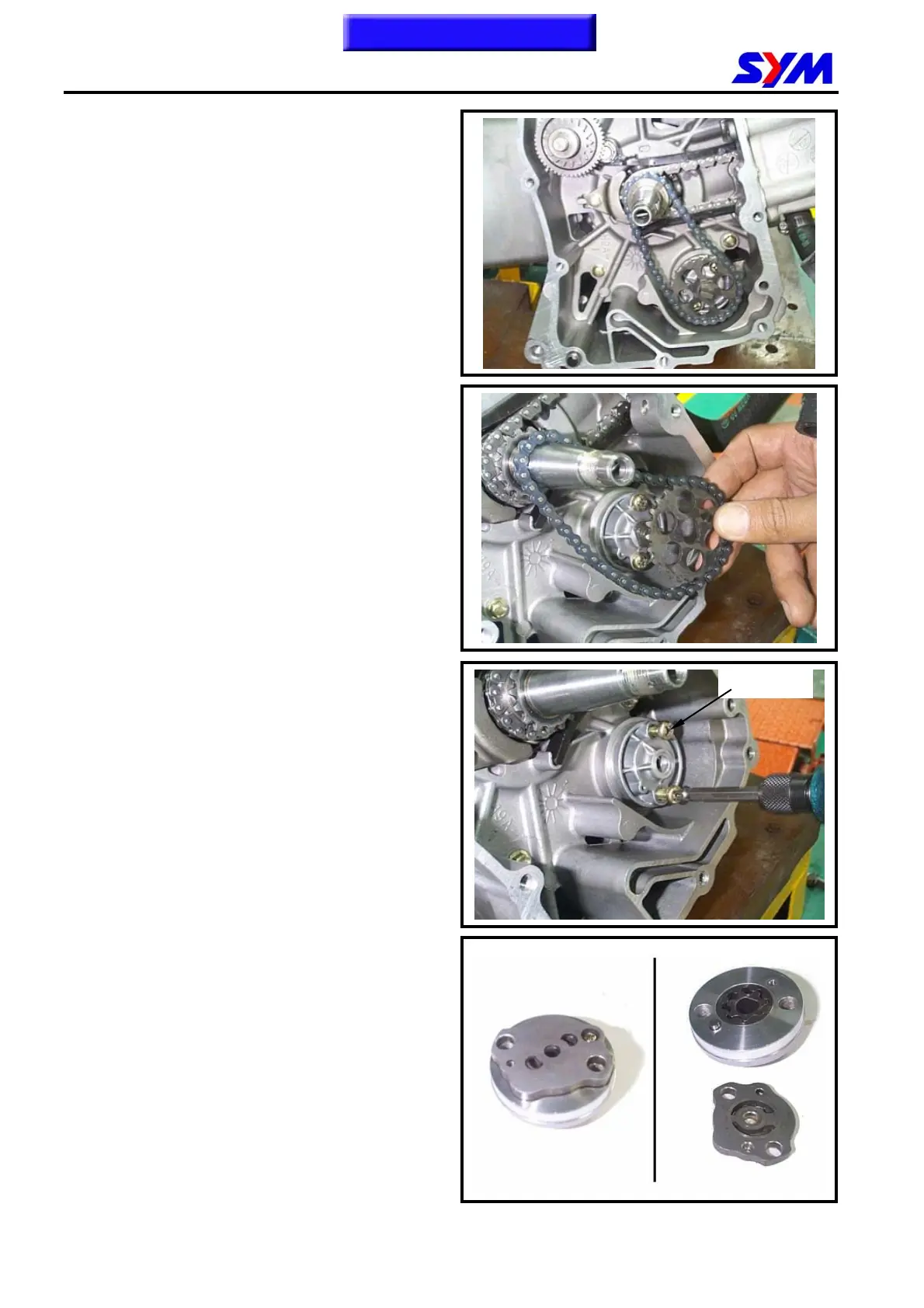

Remove generator and starting gear.
Remove snap ring and take out oil pump driving
chain and sprocket.
Torque value: 0.8~1.2 Kg-m
Make sure that pump shaft can be rotated freely.
Remove 2 bolts on the oil pump, and then
remove oil pump.
Oil Pump Disassembly
Remove the screws on oil pump cover and
disassemble the pump as illustration shown.
BOLT×2
