. Fuel Injection System
5-23

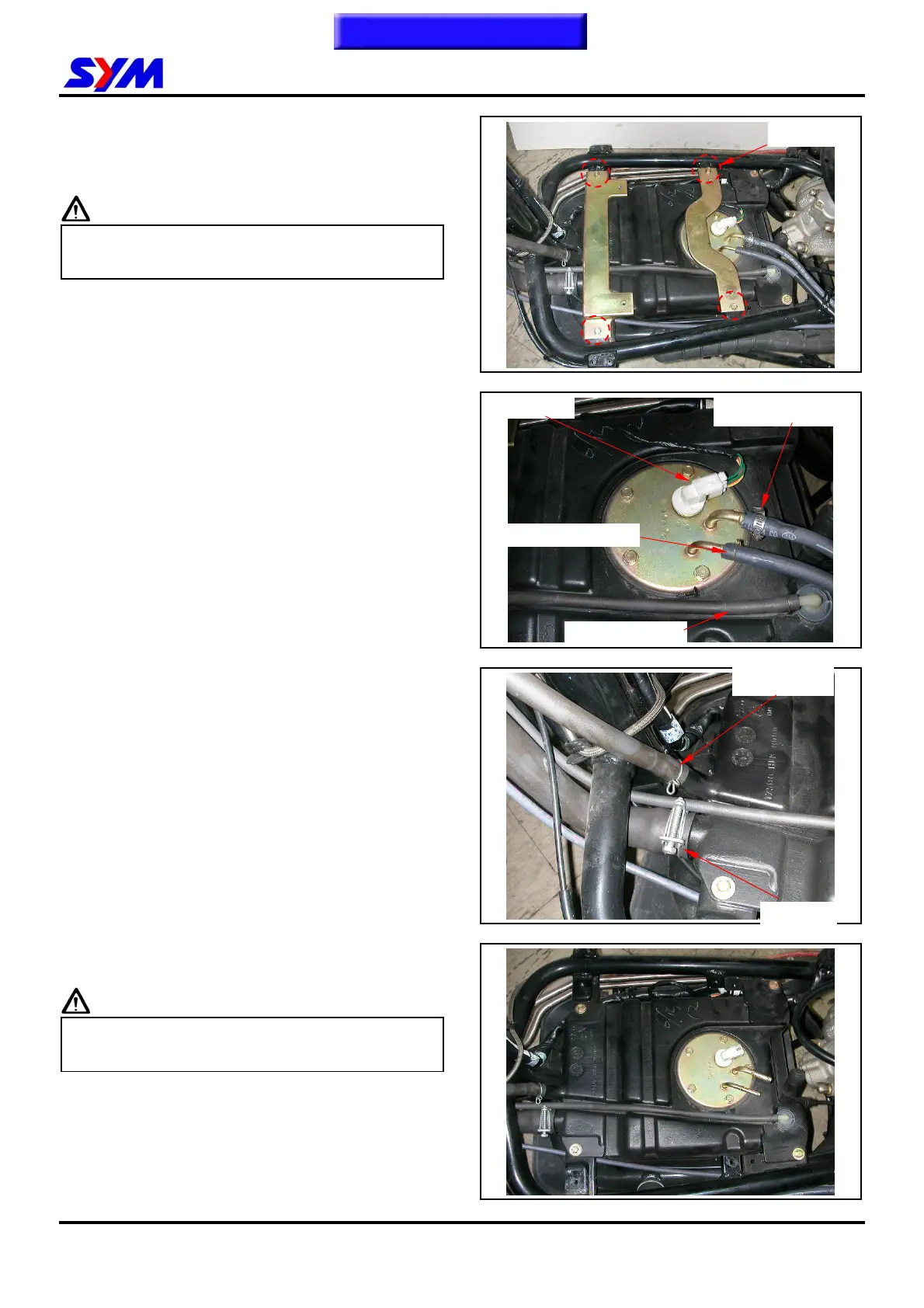

Fuel Tank
Removal
Caution
● Make sure the fuel in the tank is not too
much before removing the fuel tank.
Remove the fuel tank fixing brackets (4 bolts).
Disconnect the fuel pump/ unit coupler, fuel
output/ backflow pipes and fuel tank
ventilation pipe.
Remove the fill-in pipe and overflow pipe.
Remove the fuel tank (4 lock bolts).
Caution
● Replace the fuel tank if there is any
damage or leakage.
Installation
Install in the reverse order of removal.
4 bolts
Fuel output pipe
Coupler
Ventilation pipe
Fuel backflow pipe
Overflow pipe
Fill-in pipe
