Sym X'PRO RV125 - AC. Generator Removal; Flywheel Removal; Right Crankcase Cover Removal

11. AC. Generator / Start Clutch
11-3

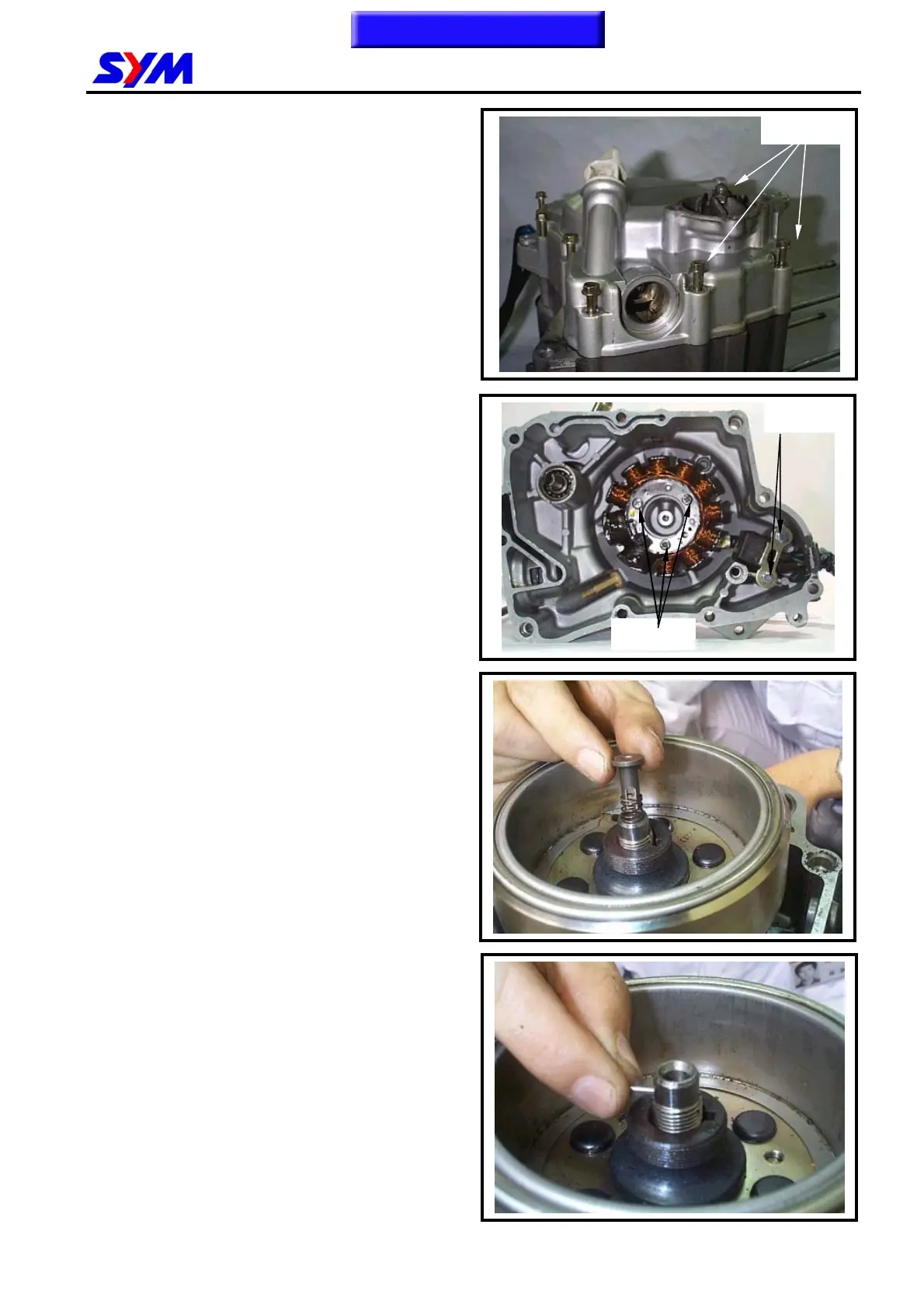

Right Crankcase Cover Removal
Remove 7 bolts from the right crankcase cover.
Remove the right crankcase cover.
Remove dowel pin and gasket.
AC. Generator Removal
Remove 2 mounted bolts from pulse generator
and then remove it.
Remove 3 screws from right crankcase cover
and A.C.G. set.
Flywheel Removal
Remove oil through from crankshaft.
Remove the pin from crankshaft.
7 bolts
2 bolts
3 screws
