2. Maintenance Information
2-5
Valve Clearance
Caution
Checks and adjustment must be performed
when the engine temperature is below 35℃.
Remove trunk.
Remove central cover.
Remove valve adjustment cap.
Remove cylinder head side cover.

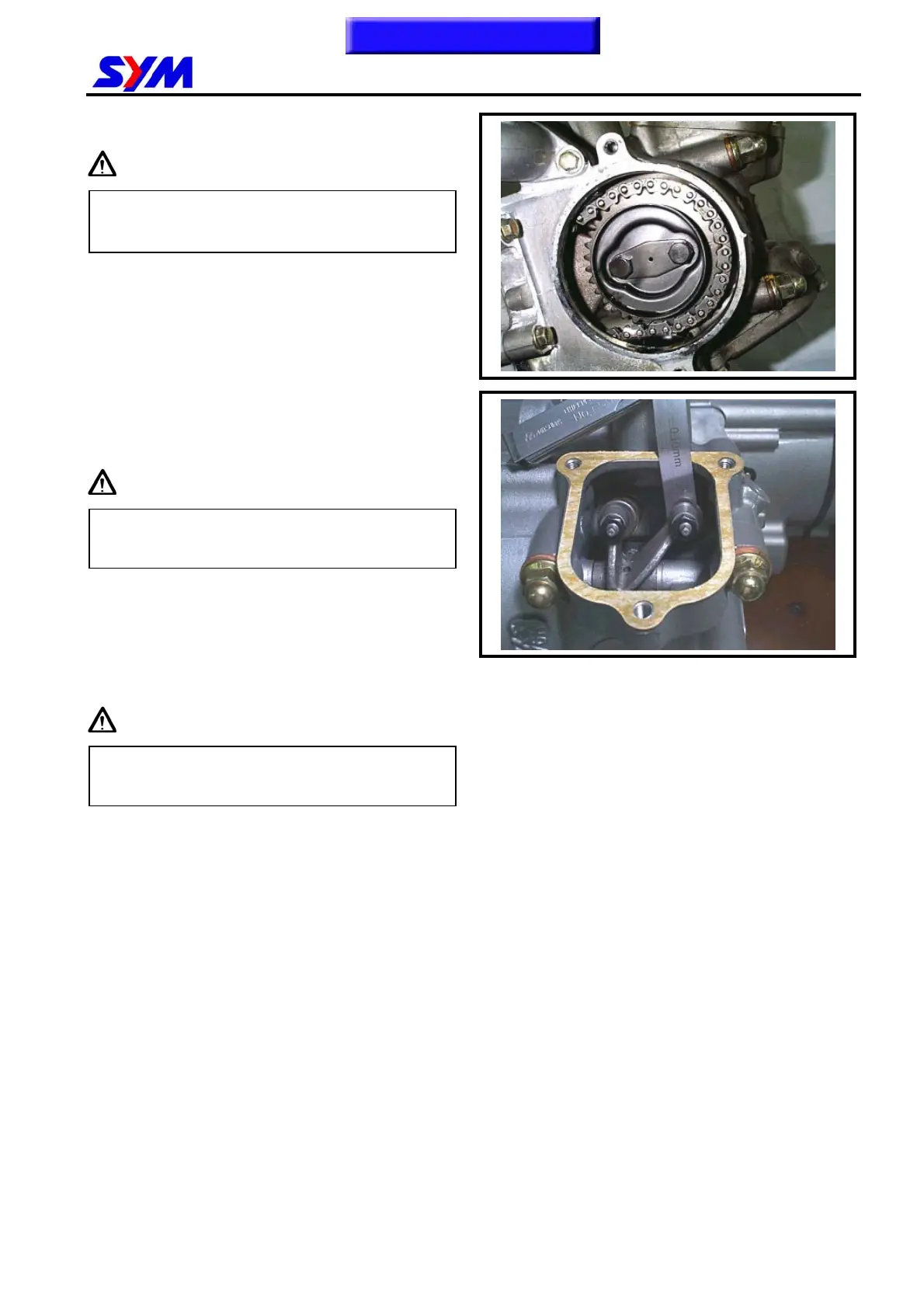

Turn camshaft bolt in C.W. direction and let the
“T” mark on the camshaft sprocket align with
cylinder head mark so that piston is placed at
TDC position in compression stroke.
Caution
Do not turn the bolt in C.C.W. direction to
prevent from camshaft bolt looseness.
Check & adjust valve clearance with feeler
gauge.
Valve clearance (IN/EX): 0.12 ± 0.02 mm
Loosen fixing nut and turn the adjustment nut for
adjustment.
Caution
Re-check the valve clearance after tightened
the fixing nut.
