7. Cylinder Head / Valve
7-4

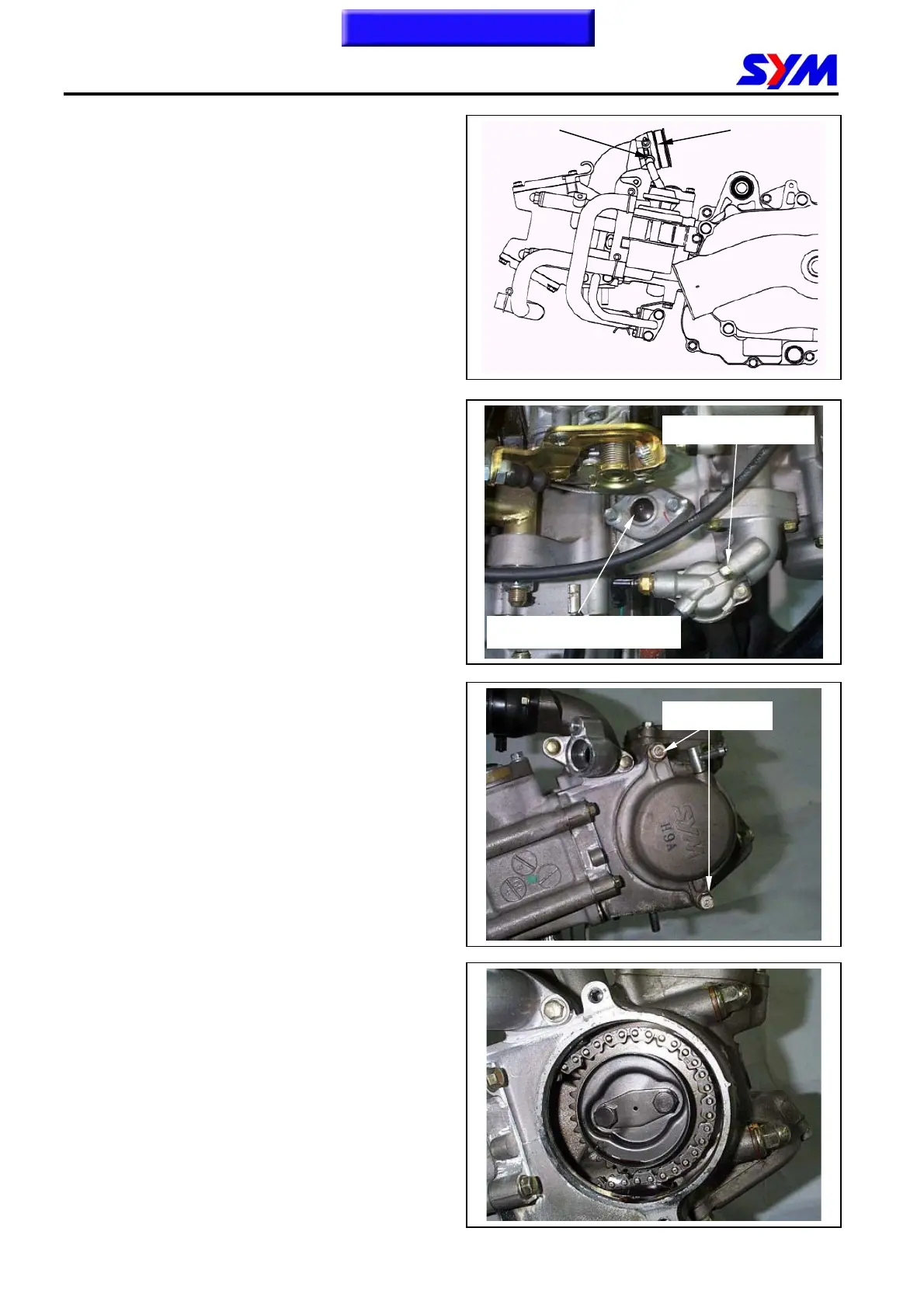

Cylinder Head Removal
Remove cushion and body center cover.
Remove the clamp strip bolt of carburetor, and
disconnect vacuum tube from the carburetor
insulator.
Remove 1 bolt of thermostat and then remove
the thermostat.
Remove the side cover mounting blot of cylinder
head, and then take out the side cover.
Remove hole cap for the adjustment bolt of cam
chain tensioner, and then loosen the tensioner
by turning a flat-driver in C.W direction.
Remove cam sprocket bolt and then remove the
sprocket by prying chain out.
Clamp strip
Vacuum tube
Mounting bolt
Thermostat bolt
Hole cap of adjustment bolt
