7. Cylinder Head / Valve
7-5

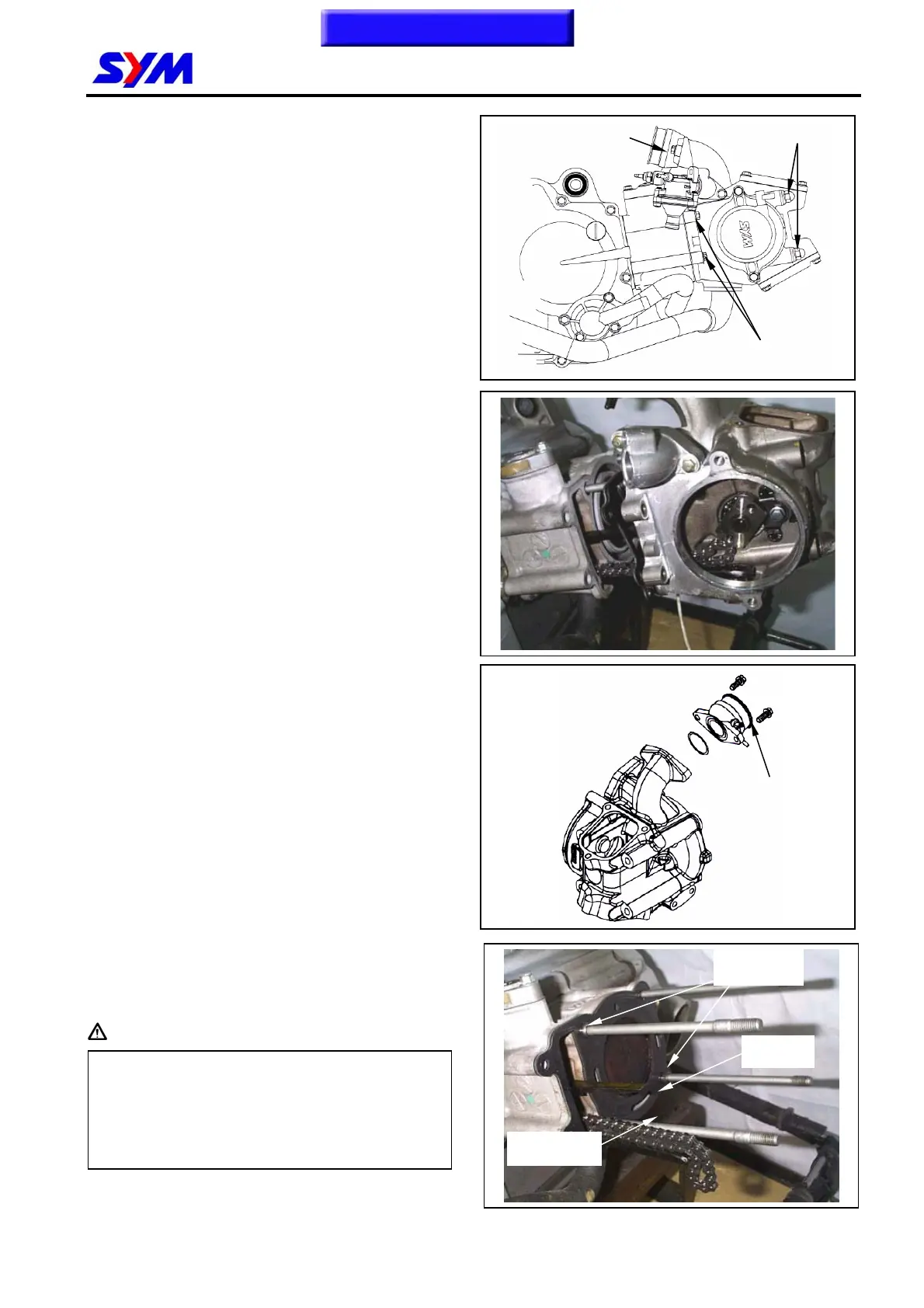

Remove the 2 cylinder head mounting bolts from
cylinder head side cover, and then remove 4
nuts and washers from cylinder head upper side.
Remove the cylinder head.
Remove 2 bolts of carburetor insulator and then
take the insulator out.
Remove cylinder head gasket and 2 dowel pins.
Remove chain guide.
Clean up residues from the matching surfaces of
cylinder and cylinder head.
Caution
z Do not damage the matching surfaces
of cylinder and cylinder head.
z Avoid residues of gasket or foreign
materials falling into crankcase as
cleaning.
Nuts
Insulator bolt
Cylinder head mounting
bolts
Carburetor insulator
Dowel pin
Gasket
Chain guide
