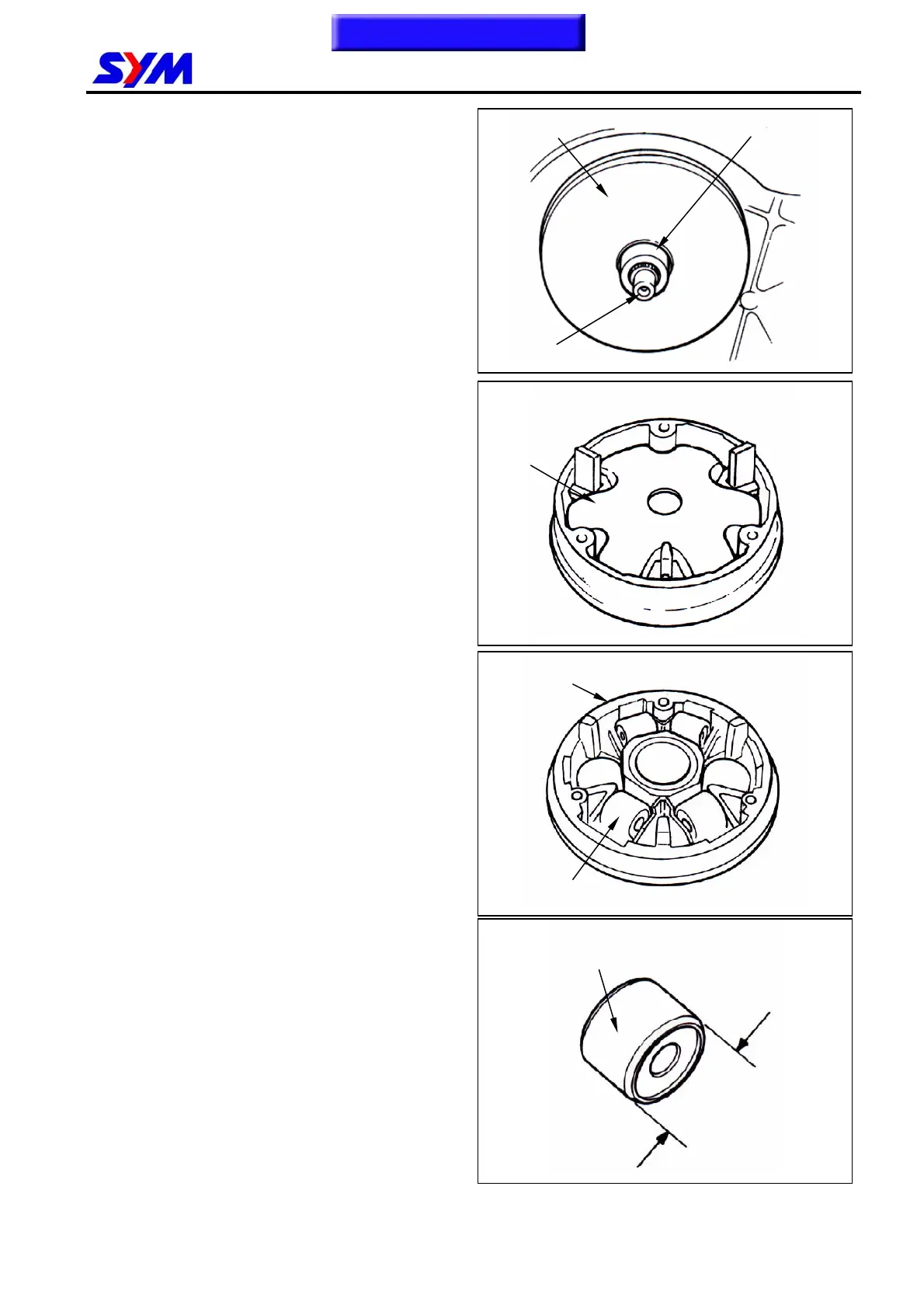

9. V-Belt Drive System
9-7
Removal
Remove movable drive face comp. and driving
belt from crankshaft.
Remove ramp plate.
Remove weight rollers from movable drive face.
Inspection
The weight rollers are to press movable drive
face by means of centrifuge force.
Thus, if weight rollers are worn out or damaged,
the centrifuge force will be effected.
Check if rollers are wear out or damage.
Replace it if necessary.
Measure each roller’s outer diameter. Replace it
if exceed the service limit.
Service limit: 19.50 mm
Crankshaft
Drive face boss
Movable drive face
Ramp plate
Movable drive face
Weight roller
Weight roller
