10. Final Drive Mechanism
10-5

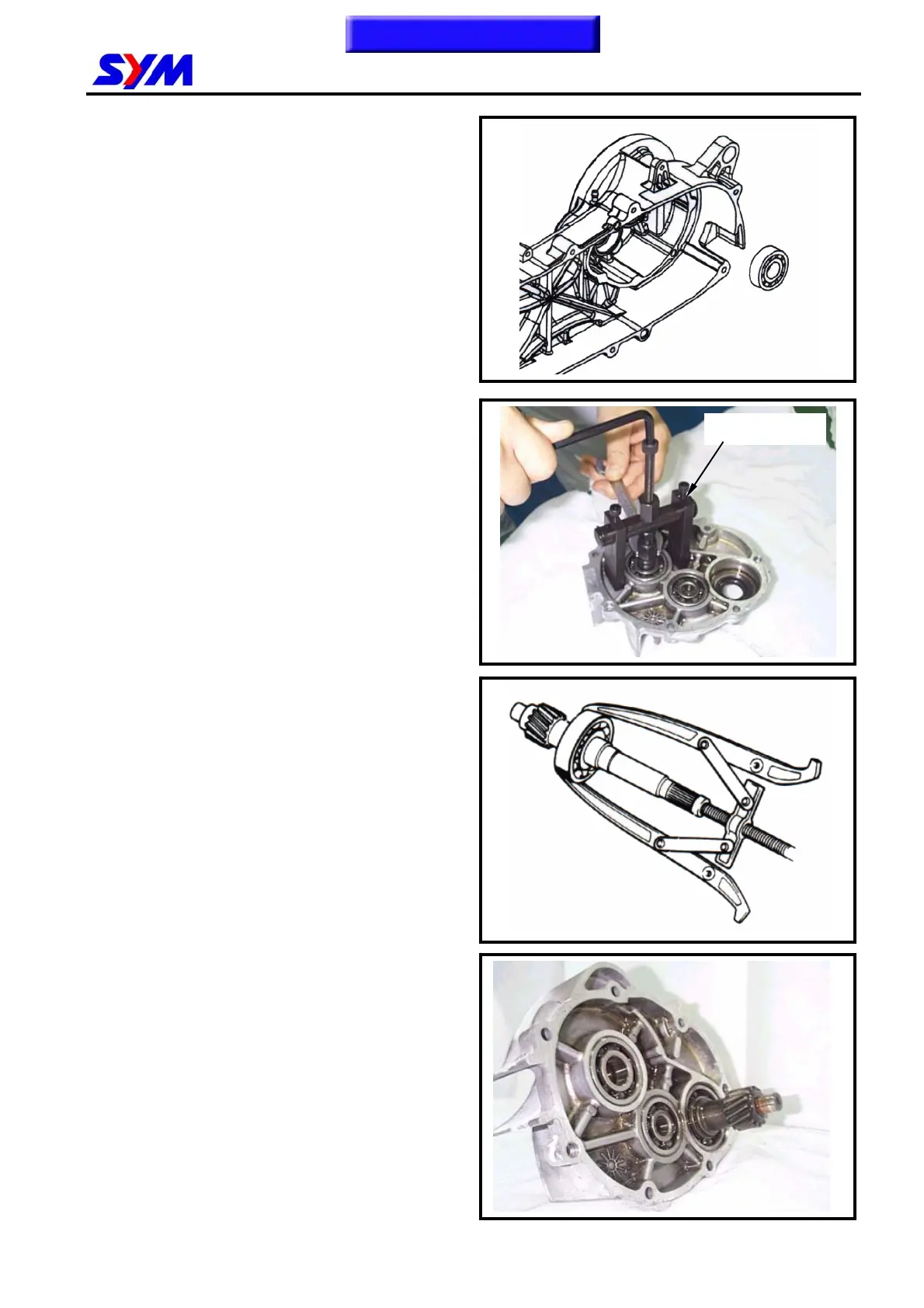

Remove oil seal, and then remove final shaft
bearing from left crankcase.
Install new final shaft bearing.
Press the bearing in with hydraulic presser.
Tool:
Bearing (6203/6004UZ) driver
Oil seal
(27*42*7) driver
Press out the driving shaft from gear box cover.
Using bearing protector as operation.
Remove oil seal from gear box cover and discard
the seal.
Use bearing puller to remove the final shaft
bearing from the cover.
If the driving shaft is pulled out with its bearing,
then remove the bearing with bearing puller and
bearing protector.
Tool:
Bearing (6204)driver or
Multi-functional bearing puller
Bearing protector
Install a new driving shaft bearing onto gear box
cover.
Tool:
Bearing (6204) driver
Press the bearing in with hydraulic presser.
Bearing puller
