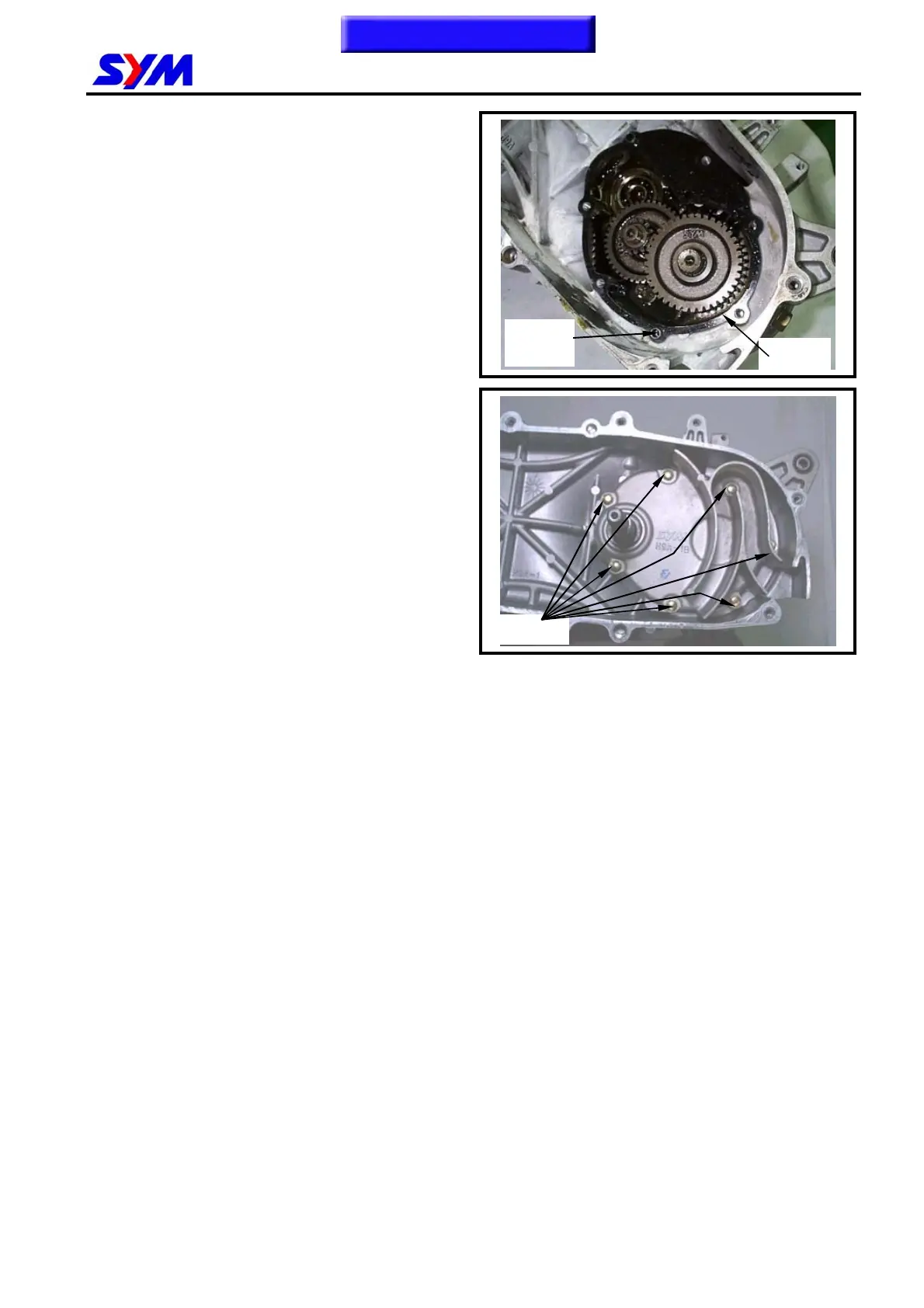

10. Final Drive Mechanism
10-7
Install dowel pin and new gasket.
Install gear box cover and bolts, and tighten.
Torque value: 1.0~1.4 kgf-m
Install driven pulley/clutch outer/belt.
Install movable drive face, drive face and left
crankcase.
Install rear wheel.
Add gear oil.
7 bolts
dowel
pin
Gasket
