15. Brake System
15-9
Install the rubber cap into the groove correctly.

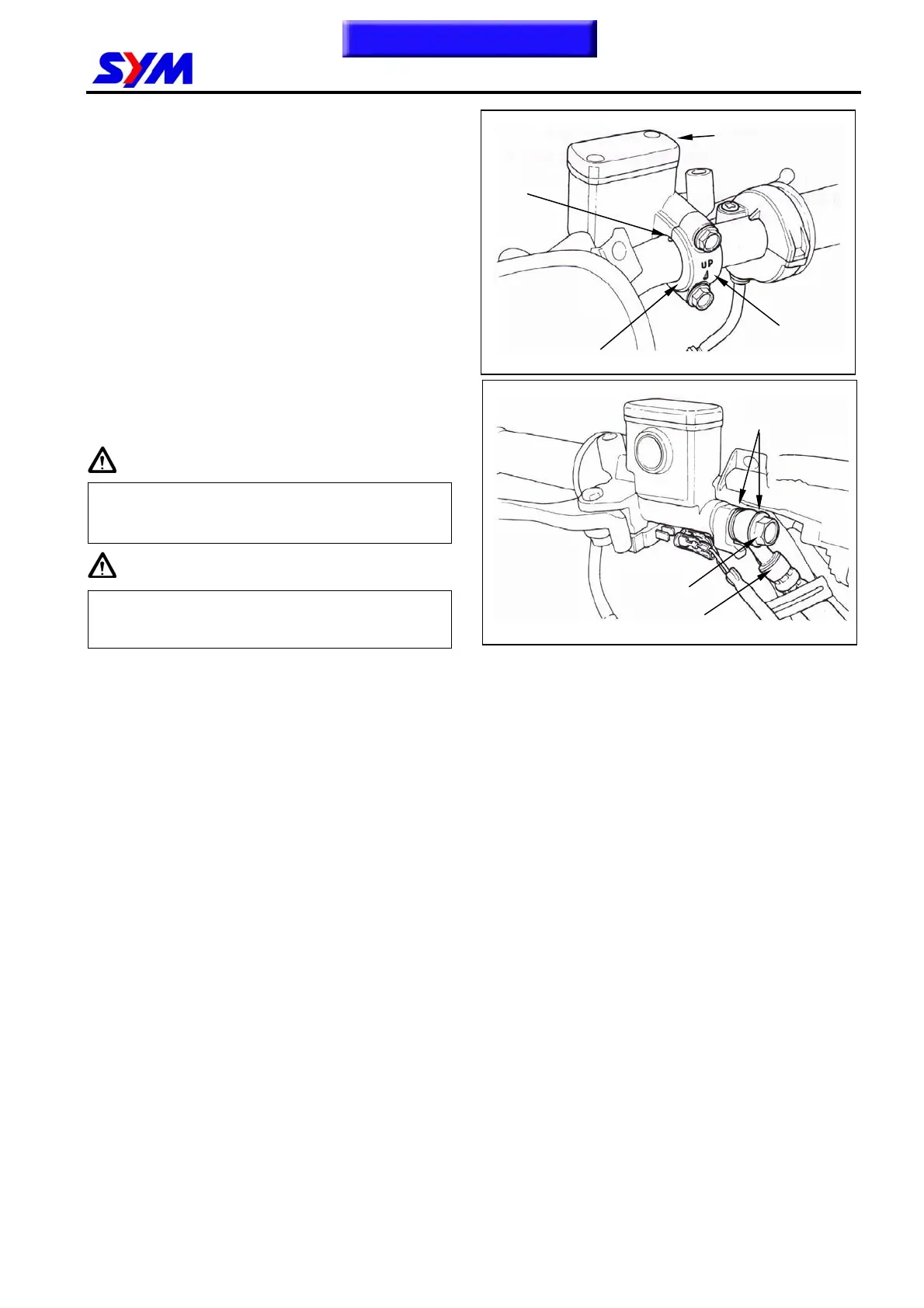

Place the master cylinder onto handlebar, and
install the master cylinder seat and its bolts.
The “UP” mark on the seat should face upward.
Align the master cylinder seat with the
alignment point on the handlebar.
Tighten the upper bolt of the seat to specified
torque value, and then tighten lower bolt to the
same specified torque value.
Install the brake lever, and connect wires to
brake lamp switch.
Connect brake hoses with 2 new washes.
Tighten the brake hose bolt to the specified
torque value.
Make sure the hose is installed correctly.
Install all wires, hoses, and components
carefully so avoid to twisting them together.
CAUTION
CAUTION
Add specified brake fluid and bleed air from the
system.
Improper routing may damage leads, hoses
or pipes.
Kink of brake leads, hose or pipe may
reduce brake performance.
Washes
Hose bolt
Brake hose
Alignment
point
Master
cylinder
Holder
“UP” Mark
