16. Steering / Front Wheel / Front Cushion
16-12

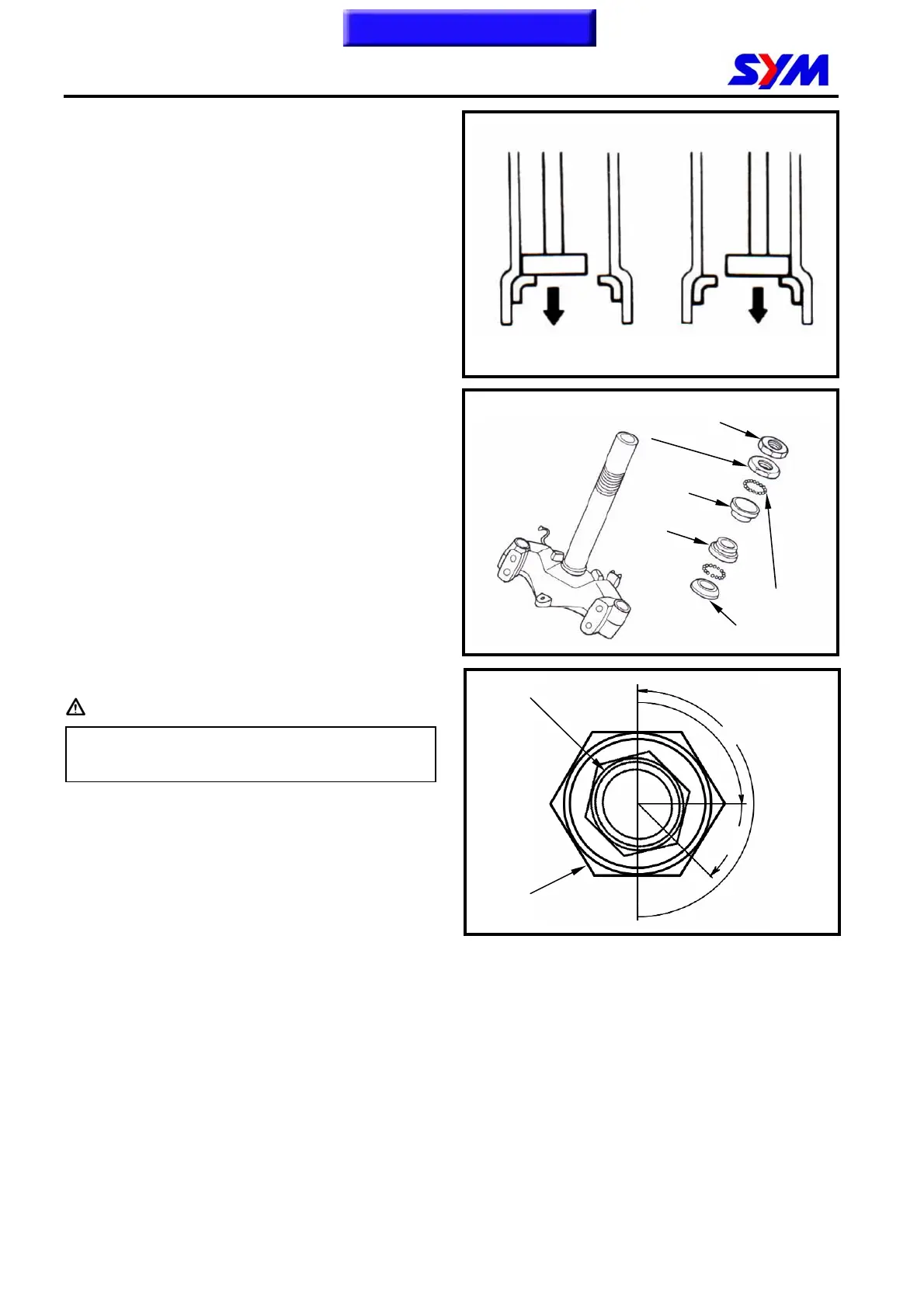

Use the punch and the drive to press the ball
race into the steering shaft end.
Tools
Driver
Punch
Use the punch and the driver to press the bottom
ball race into the steering shaft end.
Tools
Driver
Punch
Installation of front fork
Fill the upper and lower ball race with grease,
and load each carrier with balls.
Install the front fork into the steering shaft. Care
shall be exercised not to lose the balls.
Apply a coat of grease to the top crown.
Lock the top crown in place by bolts.
Caution
Tighten the nut of the steering shaft and lock up
nuts of the top crown.
Torque value: 1.0 ~ 2.0 kgf-m
Tools
Steering shaft wrench
Installing the following parts:
- The front wheel
- The steering handlebar
-
The body covers
Check the free play and vertical clearance of
the steering shaft.
Steering lock nut
Steering upper
cone
Steering upper
race
Steering bottom
race
Steering bottom
cone
Race ball
Steering lock nut
Steering upper cone
1/4
~3/8 turn
1/2 turn
