18. Electrical System
18-19

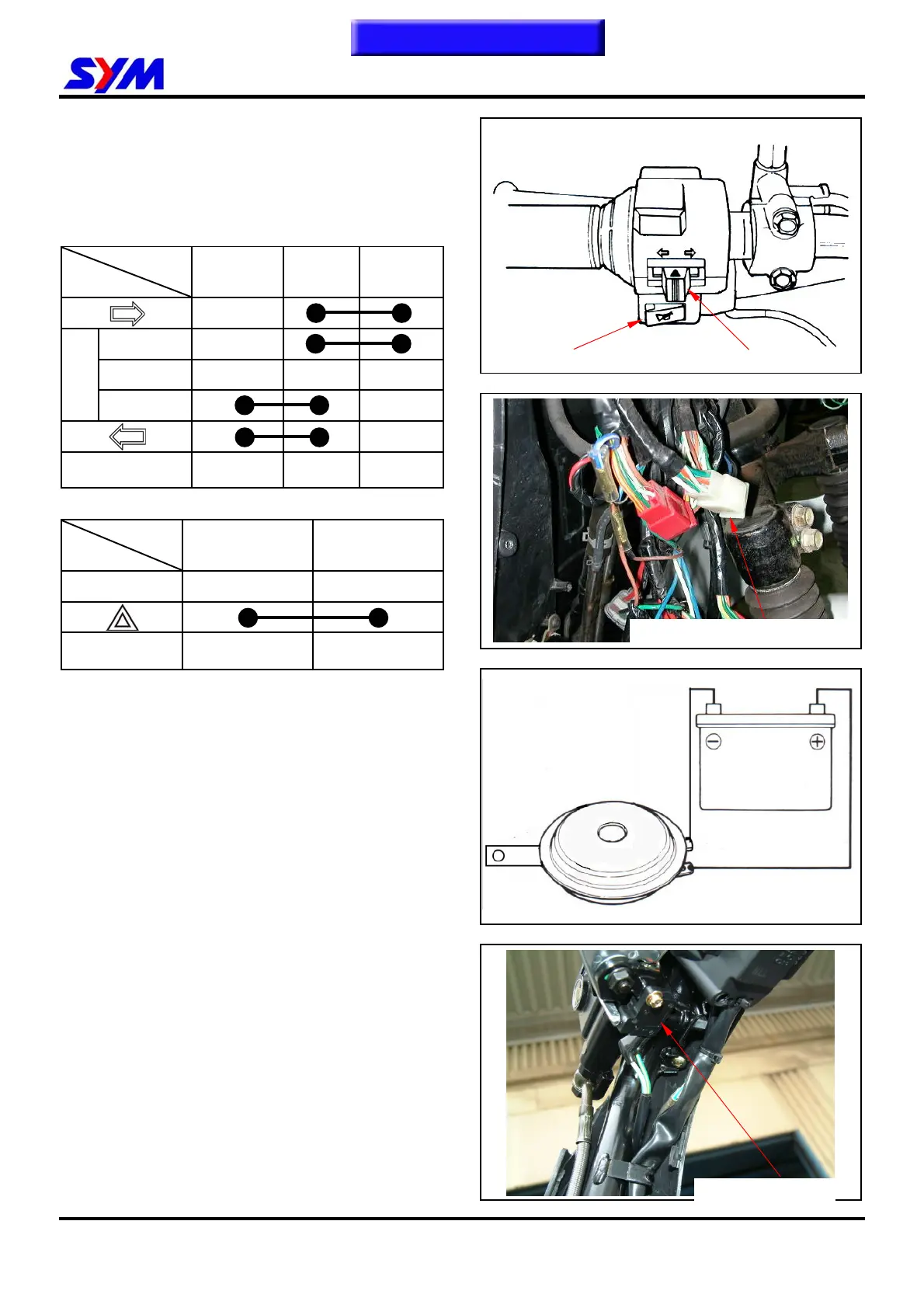

Left handlebar switch
Remove the handlebar cover and front cover.
Disconnect the left handlebar switch couplers.
Check the following switch circuit.
Winker switch
terminal
position
L WR R
FROM R
PUSH OFF
N
FROM L
Wire color O GR SB
Horn switch
terminal
position
BAT3 HO
FREE
Wire color W / G LG
Horn
Remove the front cover and front lower
spoiler.
Apply 12 V power source to two terminals of
the horn and check if the horn makes sound
or not.
Replace the horn if necessary.
Brake light switch
While grasp the brake lever firmly, the
terminals of white/green and green/yellow of
the brake should have continuity.
Replace the switch if damaged.
Winker switch
Brake light switch
Left handlebar switch coupler
