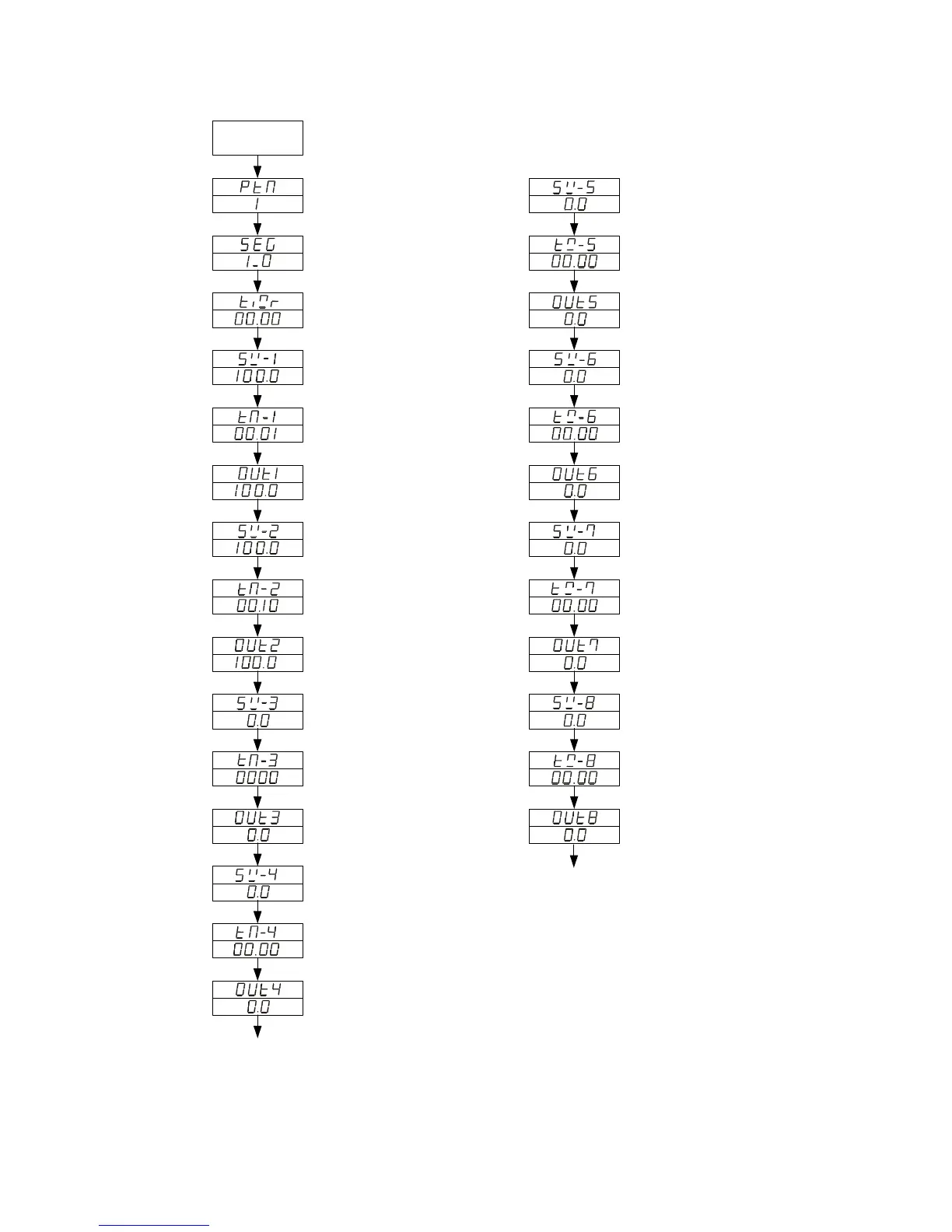

9.5 Program Level (Only displayed in programmable controller)
9.5.1 Description of parameters
Set
Set
Set
Set
Set
Set
Set
Set
Set
Set
Set
Set
Set
Set
Program Pattern
Range
：
0~2
Program Segment display
Program countdown display
Range
：
0~99 hour 59 min
Setting value of Seg.1
Range
：
LSPL~USPL
Set time for Seg.1
Range
：
0~99 hour 59 min
Output Limit of Seg.1
Range
：
0~100%
If OUT=0
，
program will end.
Setting value of Seg.2
Set time for Seg.2
Output Limit of Seg.2
Setting value of Seg.3
Set time for Seg.3
Output Limit of Seg.3
Setting value of Seg.4
Set time for Seg.4
Output Limit of Seg.4
LEVEL 1
Set
Set
Set
Set
Set
Set
Set
Set
Set
Set
Set
Set
Setting value of Seg.5
Set time for Seg.5
Output Limit of Seg.5
Setting value of Seg.6
Set time for Seg.6
Output Limit of Seg.6
Setting value of Seg.7
Set time for Seg.7
Output Limit of Seg.7
Setting value of Seg.8
Set time for Seg.8
Output Limit of Seg.8
Set
Set
Return LEVEL 1
( Pattern _ Segment )
