Taie FU series User Manual

48
15. Modify input type : Linear Input (mA ,V)

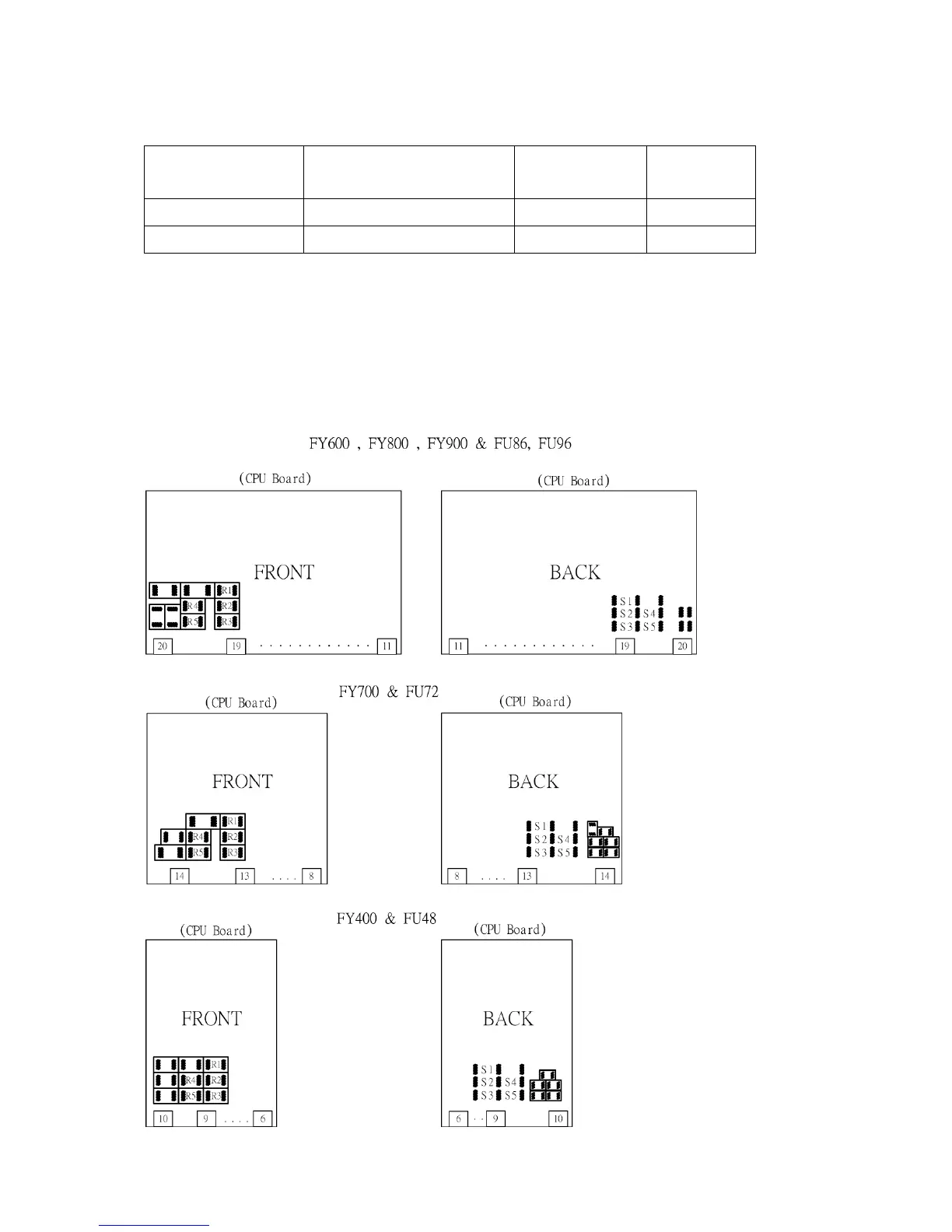

15.1 FY400~900 & FU48~96 Hardware：
FY900，FY600，FY800
FU86，FU96
FY700
FU72
FY400
FU48
INPUT ( + )
PIN 17 PIN 11 PIN 7
INPUT ( - )
PIN 20 PIN 14 PIN 10
0~20mA (INP1=AN4)：(R3 use 100Ω，R5 use 2.4Ω， S3 ＆ S5 SHORT)
4~20mA (INP1=AN5)：(R3 use 100Ω，R5 use 2.4Ω， S3 ＆ S5 SHORT)
0 ~ 1V (INP1=AN4)：(R1 use 2KΩ，R4 use 100Ω，S1 ＆ S4 SHORT)
0 ~ 5V (INP1=AN4)：(R2 use 10KΩ，R4 use 100Ω，S2 ＆ S4 SHORT)
1 ~ 5V (INP1=AN5)：(R2 use 10KΩ，R4 use 100Ω，S2 ＆ S4 SHORT)
0 ~ 10V (INP1=AN4)：(R3 use 22KΩ，R4 use 100Ω，S3 ＆ S4 SHORT)
2 ~ 10V (INP1=AN5)：(R3 use 22KΩ，R4 use 100Ω，S3 ＆ S4 SHORT)
